Installation instructions xiaomi.eu for Redmi K40 / Poco F3
Install drivers, ADB and fastboot
install Xiaomi drivers
1- First, update the ROM to the latest using the updater.
2-Unlock the bootloader
3 -Download the ROM
WEEKLY - https://sourceforge.net/projects/xiaomi-eu-multilang-miui-roms/files/xiaomi.eu/MIUI-WEEKLY-RELEASES/
STABLE - https://sourceforge.net/projects/xiaomi-eu-multilang-miui-roms/files/xiaomi.eu/MIUI-STABLE-RELEASES/
select the installation method by ROM name.
Installing fastboot ROM. This is what the ROM name looks like: xiaomi.eu_multi_HMK40_POCOF3_xxxxxx_v**-12-fastboot.zip
Installing recovery ROM (TWRP). This is what the ROM name looks like: xiaomi.eu_multi_HMK40_POCOF3_xxxxxx_v**-12..zip
Install drivers, ADB and fastboot
install Xiaomi drivers
1- First, update the ROM to the latest using the updater.
2-Unlock the bootloader
3 -Download the ROM
WEEKLY - https://sourceforge.net/projects/xiaomi-eu-multilang-miui-roms/files/xiaomi.eu/MIUI-WEEKLY-RELEASES/
STABLE - https://sourceforge.net/projects/xiaomi-eu-multilang-miui-roms/files/xiaomi.eu/MIUI-STABLE-RELEASES/
select the installation method by ROM name.
Installing fastboot ROM. This is what the ROM name looks like: xiaomi.eu_multi_HMK40_POCOF3_xxxxxx_v**-12-fastboot.zip
To use Windows:
-Unpack downloaded zip file in the PC
- Reboot your device to fastboot mode (press volume down + power)
- Connect to PC via USB cable
- Run the quick launch installation script as an administrator from the unzipped zipper. windows_fastboot_first_install_with_data_format.bat
- wait for the phone to restart the system
- After reboot its done - (first boot may take up to 15min)
- if flashing process stuck on setting slot a, just press Enter
-Unpack downloaded zip file in the PC
- Reboot your device to fastboot mode (press volume down + power)
- Connect to PC via USB cable
- Run the quick launch installation script as an administrator from the unzipped zipper. windows_fastboot_first_install_with_data_format.bat
- wait for the phone to restart the system
- After reboot its done - (first boot may take up to 15min)
- if flashing process stuck on setting slot a, just press Enter
4 - Insert the downloaded ROM (zip.) into the phone's storage
5 - -Connect your phone to your computer in fastboot mode
6 - Start TWRP using the Fastboot toolkit
TWRP_toolkit

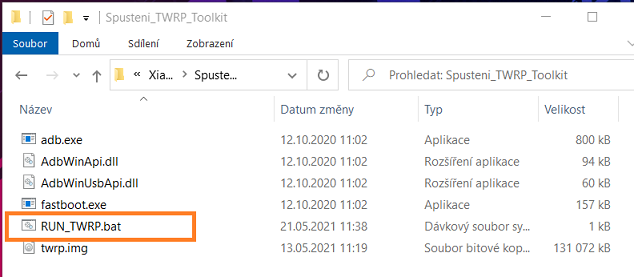

Unzip the downloaded toolkit and run it by clicking RUN_TWRP.bat

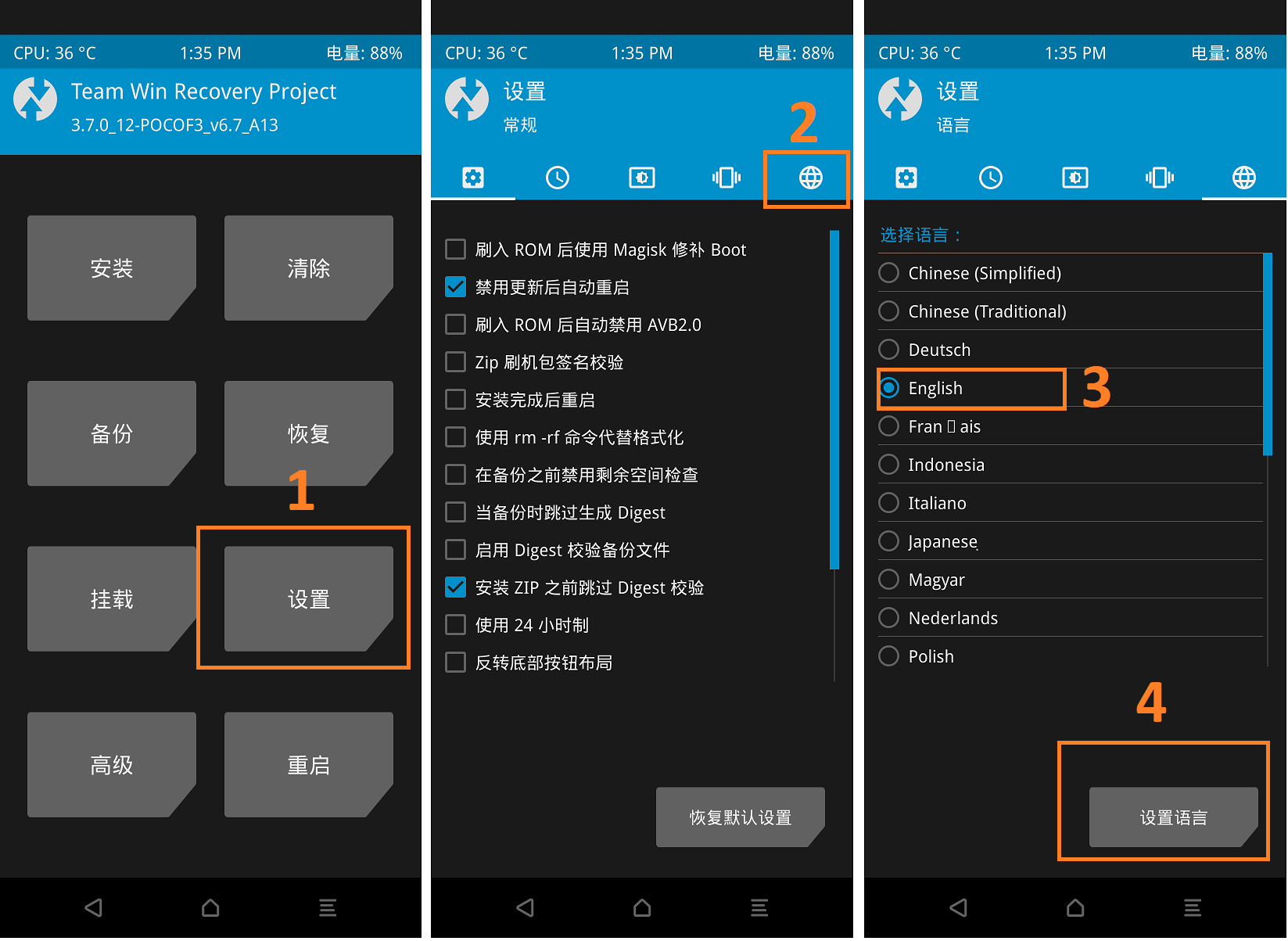

To change TWRP language to English,
7- Enter the "password / PIN / pattern" of the screen lock on request
8 -Install ROM

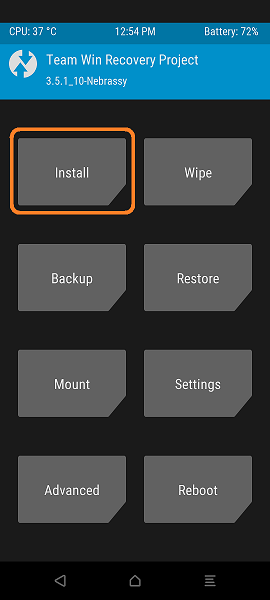

card / Install

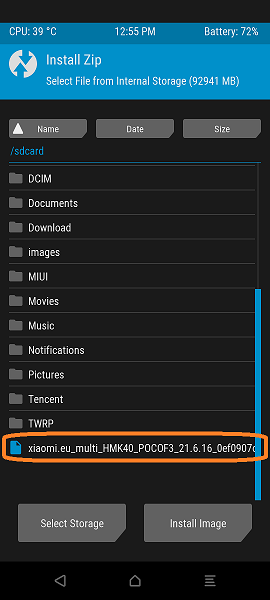

find the required ROM in the repository

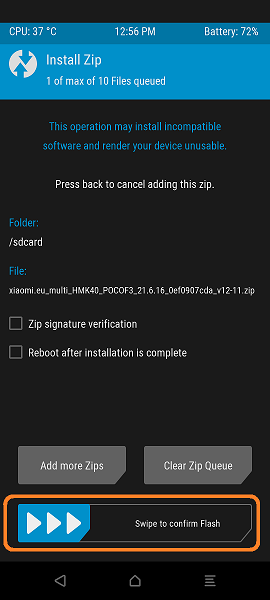

start the installation - swipe to confirm Flash
when the installation is complete, select the home navigation key
- Format Data

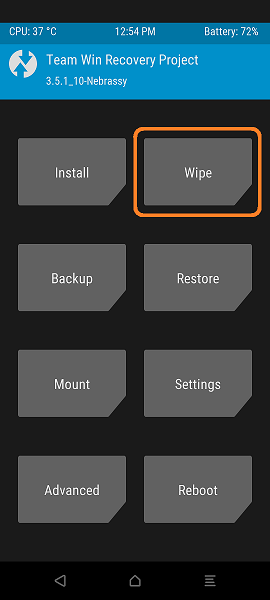

card / wipe

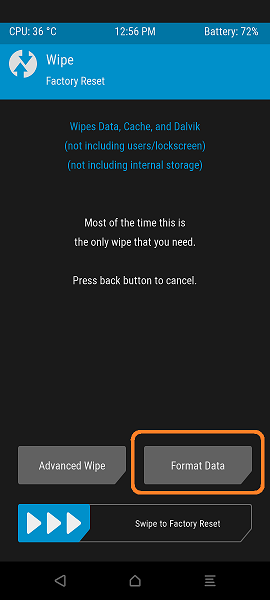

Format Data
Confirm the format by entering - YES
restarts the system after formatting is complete
- DONE
wait for the system to start, the first boot may take longer.
After installing the ROM, TWRP remains permanently
5 - -Connect your phone to your computer in fastboot mode
6 - Start TWRP using the Fastboot toolkit
TWRP_toolkit
Unzip the downloaded toolkit and run it by clicking RUN_TWRP.bat
To change TWRP language to English,
7- Enter the "password / PIN / pattern" of the screen lock on request
8 -Install ROM
card / Install
find the required ROM in the repository
start the installation - swipe to confirm Flash
when the installation is complete, select the home navigation key
- Format Data
card / wipe
Format Data
Confirm the format by entering - YES
restarts the system after formatting is complete
- DONE
wait for the system to start, the first boot may take longer.
After installing the ROM, TWRP remains permanently
