Resolved Mi 11 miui 13.0.6/22.1.19 wifi 5ghz 149 chanel not working on Xiaomi.eu


Burav4ik

Members
Feb 9, 2022
7
15
After upgrading to Android 12, it stopped catching the WiFi network on channel 149, and only on XiaomiEu. To check, I rolled up the official miui china and there is no problem there. What should I do?

  • Like
Reactions: Motox

Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322
Wi-Fi channels are region-dependant. Comparing to China ROM is absurd, China ROM uses configuration for China.
Change the channel.

  • Like
Reactions: Burav4ik

Burav4ik

Members
Feb 9, 2022
7
15
Wi-Fi channels are region-dependant. Comparing to China ROM is absurd, China ROM uses configuration for China.
Change the channel.
Thanks, but I need this channel. There were no problems before, XiaomiEu removed restrictions on the use of 5ghz and restrictions on regions. I think it's a bug.


Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322
Thanks, but I need this channel. There were no problems before, XiaomiEu removed restrictions on the use of 5ghz and restrictions on regions. I think it's a bug.
OK, good luck then, there's no way for me to debug that from where I'm physically located.

  • Like
Reactions: Burav4ik

tasar

Members
Mar 19, 2017
59
20
Wi-Fi channels are region-dependant. Comparing to China ROM is absurd, China ROM uses configuration for China.
Change the channel.
And why MIUI 12.5 (also Xiaomi.eu rom) has no problem with car wifi?? 12.5 is also an china rom...

Edit: Find out that the car use channel 149, no connection on Mi11Ultra with latest EU rom, but connect my MiMix2s with 12.1 xiaomi.eu rom (20.9.4)

Last edited:
  • Like
Reactions: eminos and Burav4ik

Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322
I could help you, any action. Thanks for the answers
Reboot the device, then immediately start recording a log using this command:
Code:
adb logcat -s wificond,wpa_supplicant,WifiCountryCode,WifiNative,WifiNl80211Manager,WifiService > wifi_log.txt


tasar

Members
Mar 19, 2017
59
20
Reboot the device, then immediately start recording a log using this command:
Code:
adb logcat -s wificond,wpa_supplicant,WifiCountryCode,WifiNative,WifiNl80211Manager,WifiService > wifi_log.txt
Will this help you? Its from my Mi11Ultra with 22.2.9 rom.
Iam no dev but when i look in the log´s, i dont see an channel 149 entry, last seems to be 140 in 5ghz. Also there is no frequency entry for channel 149 (5745mhz)


Attachments

  • Wifi_log.ZIP
    47.2 KB · Views: 48
  • Like
Reactions: eminos

Marblehead

Members
Jan 3, 2022
14
15

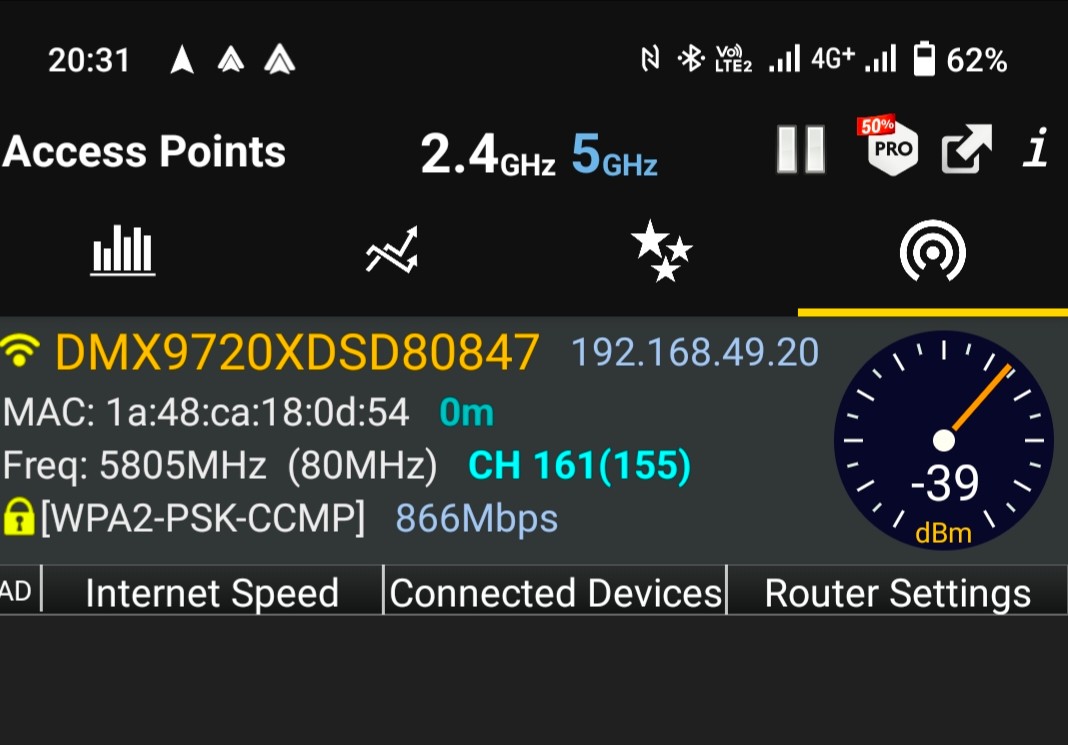

I am sorry, I do not know, how to record it, I tried somewhat from Xiaomi Ultra 11. Plus I send you a channel my car radio uses with another phone (vivo) for AA wireless - see attached. On 12.5.20, there were no problems connecting Xiaomi + this car radio for AA wireless. The problems started with the Miui 13. I am located in CZ.


Attachments

  • IMG_20220211_205528.jpg
    101.4 KB · Views: 96
  • Snímek obrazovky 2022-02-11 222432.jpg
    Snímek obrazovky 2022-02-11 222432.jpg
    268.8 KB · Views: 85
Last edited:

Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322

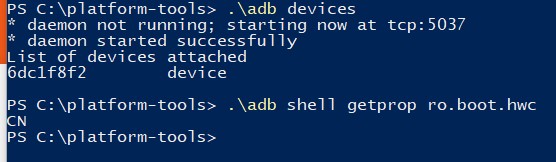

Hmm... can you guys run this command on your Mi 11 / Mi 11 Ultra and let me know what the output is?
Code:
adb shell getprop ro.boot.hwc


Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322
That only means that whether CN hardware or GL/GLOBAL hardware doesn't matter, that's good.
The above logs confirm that Xiaomi somehow broke the firmware support for 5GHz bands over 5700.
This is from your logs on Mi 11 / Ultra (probably all Snapdragon 888 are affected):
Code:
D wpa_supplicant: nl80211: Event message available
D wpa_supplicant: nl80211: Drv Event 113 (NL80211_CMD_WIPHY_REG_CHANGE) received for wlan0
D wpa_supplicant: nl80211: Regulatory domain change
D wpa_supplicant:  * initiator=2
D wpa_supplicant:  * type=0
D wpa_supplicant:  * alpha2=GB
D wpa_supplicant: wlan0: Event CHANNEL_LIST_CHANGED (27) received
I wpa_supplicant: wlan0: CTRL-EVENT-REGDOM-CHANGE init=DRIVER type=COUNTRY alpha2=GB
D wpa_supplicant: wlan0: Updating hw mode
D wpa_supplicant: nl80211: Regulatory information - country=GB (DFS-ETSI)
D wpa_supplicant: nl80211: 2402-2482 @ 40 MHz 20 mBm
D wpa_supplicant: nl80211: 5170-5250 @ 80 MHz 23 mBm (no outdoor)
D wpa_supplicant: nl80211: 5250-5330 @ 80 MHz 23 mBm (no outdoor) (DFS)
D wpa_supplicant: nl80211: 5490-5710 @ 160 MHz 30 mBm (DFS)
D wpa_supplicant: nl80211: 5945-6425 @ 160 MHz 24 mBm
D wpa_supplicant: nl80211: Added 802.11b mode based on 802.11g information
D wpa_supplicant: nl80211: Mode IEEE 802.11g: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484[DISABLED]
D wpa_supplicant: nl80211: Mode IEEE 802.11a: 5180 5200 5220 5240 5260[RADAR] 5280[RADAR] 5300[RADAR] 5320[RADAR] 5500[RADAR] 5520[RADAR] 5540[RADAR] 5560[RADAR] 5580[RADAR] 5600[RADAR] 5620[RADAR] 5640[RADAR] 5660[RADAR] 5680[RADAR]
D wpa_supplicant: nl80211: Mode IEEE 802.11a: 5935[DISABLED] 5955 5975 5995 6015 6035 6055 6075 6095 6115 6135 6155 6175 6195 6215 6235 6255 6275 6295 6315 6335 6355 6375 6395 6415 6435[DISABLED] 6455[DISABLED] 6475[DISABLED] 6495[DISABLED]
D wpa_supplicant: nl80211: Mode IEEE 802.11b: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484[DISABLED]

I wificond: Regulatory domain changed to country: GB on wiphy_index: 0
I wificond: add channel type 3 support at wiphy index: 0
I wificond: 2.4Ghz frequencies: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472
I wificond: 5Ghz non-DFS frequencies: 5180 5200 5220 5240
I wificond: 5Ghz DFS frequencies: 5260 5280 5300 5320 5500 5520 5540 5560 5580 5600 5620 5640 5660 5680 5700
I wificond: 6Ghz frequencies: 5955 5975 5995 6015 6035 6055 6075 6095 6115 6135 6155 6175 6195 6215 6235 6255 6275 6295 6315 6335 6355 6375 6395 6415
I wificond: 60Ghz frequencies:

And this is from Mi 10 (latest Weekly):
Code:
I wificond: Regulatory domain changed to country: GB on wiphy_index: 0
I wificond: 2.4Ghz frequencies: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472
I wificond: 5Ghz non-DFS frequencies: 5180 5200 5220 5240 5745 5765 5785 5805 5825 5845 5865
I wificond: 5Ghz DFS frequencies: 5260 5280 5300 5320 5500 5520 5540 5560 5580 5600 5620 5640 5660 5680 5700 5720
I wificond: 6Ghz frequencies:
I wificond: 60Ghz frequencies:

Notice something missing in your logs?
Code:
non-DFS: ... 5745 5765 5785 5805 5825 5845 5865
DFS: ... 5720

Which means:
Code:
CH  | Freq
144 = 5720
149 = 5745
153 = 5765
157 = 5785
161 = 5805
165 = 5825
169 = 5845
173 = 5865

Unfortunately, it's not possible to fix the firmware. Only Xiaomi can do that.


Burav4ik

Members
Feb 9, 2022
7
15
That only means that whether CN hardware or GL/GLOBAL hardware doesn't matter, that's good.
The above logs confirm that Xiaomi somehow broke the firmware support for 5GHz bands over 5700.
This is from your logs on Mi 11 / Ultra (probably all Snapdragon 888 are affected):
Code:
D wpa_supplicant: nl80211: Event message available
D wpa_supplicant: nl80211: Drv Event 113 (NL80211_CMD_WIPHY_REG_CHANGE) received for wlan0
D wpa_supplicant: nl80211: Regulatory domain change
D wpa_supplicant:  * initiator=2
D wpa_supplicant:  * type=0
D wpa_supplicant:  * alpha2=GB
D wpa_supplicant: wlan0: Event CHANNEL_LIST_CHANGED (27) received
I wpa_supplicant: wlan0: CTRL-EVENT-REGDOM-CHANGE init=DRIVER type=COUNTRY alpha2=GB
D wpa_supplicant: wlan0: Updating hw mode
D wpa_supplicant: nl80211: Regulatory information - country=GB (DFS-ETSI)
D wpa_supplicant: nl80211: 2402-2482 @ 40 MHz 20 mBm
D wpa_supplicant: nl80211: 5170-5250 @ 80 MHz 23 mBm (no outdoor)
D wpa_supplicant: nl80211: 5250-5330 @ 80 MHz 23 mBm (no outdoor) (DFS)
D wpa_supplicant: nl80211: 5490-5710 @ 160 MHz 30 mBm (DFS)
D wpa_supplicant: nl80211: 5945-6425 @ 160 MHz 24 mBm
D wpa_supplicant: nl80211: Added 802.11b mode based on 802.11g information
D wpa_supplicant: nl80211: Mode IEEE 802.11g: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484[DISABLED]
D wpa_supplicant: nl80211: Mode IEEE 802.11a: 5180 5200 5220 5240 5260[RADAR] 5280[RADAR] 5300[RADAR] 5320[RADAR] 5500[RADAR] 5520[RADAR] 5540[RADAR] 5560[RADAR] 5580[RADAR] 5600[RADAR] 5620[RADAR] 5640[RADAR] 5660[RADAR] 5680[RADAR]
D wpa_supplicant: nl80211: Mode IEEE 802.11a: 5935[DISABLED] 5955 5975 5995 6015 6035 6055 6075 6095 6115 6135 6155 6175 6195 6215 6235 6255 6275 6295 6315 6335 6355 6375 6395 6415 6435[DISABLED] 6455[DISABLED] 6475[DISABLED] 6495[DISABLED]
D wpa_supplicant: nl80211: Mode IEEE 802.11b: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484[DISABLED]

I wificond: Regulatory domain changed to country: GB on wiphy_index: 0
I wificond: add channel type 3 support at wiphy index: 0
I wificond: 2.4Ghz frequencies: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472
I wificond: 5Ghz non-DFS frequencies: 5180 5200 5220 5240
I wificond: 5Ghz DFS frequencies: 5260 5280 5300 5320 5500 5520 5540 5560 5580 5600 5620 5640 5660 5680 5700
I wificond: 6Ghz frequencies: 5955 5975 5995 6015 6035 6055 6075 6095 6115 6135 6155 6175 6195 6215 6235 6255 6275 6295 6315 6335 6355 6375 6395 6415
I wificond: 60Ghz frequencies:

And this is from Mi 10 (latest Weekly):
Code:
I wificond: Regulatory domain changed to country: GB on wiphy_index: 0
I wificond: 2.4Ghz frequencies: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472
I wificond: 5Ghz non-DFS frequencies: 5180 5200 5220 5240 5745 5765 5785 5805 5825 5845 5865
I wificond: 5Ghz DFS frequencies: 5260 5280 5300 5320 5500 5520 5540 5560 5580 5600 5620 5640 5660 5680 5700 5720
I wificond: 6Ghz frequencies:
I wificond: 60Ghz frequencies:

Notice something missing in your logs?
Code:
non-DFS: ... 5745 5765 5785 5805 5825 5845 5865
DFS: ... 5720

Which means:
Code:
CH  | Freq
144 = 5720
149 = 5745
153 = 5765
157 = 5785
161 = 5805
165 = 5825
169 = 5845
173 = 5865

Unfortunately, it's not possible to fix the firmware. Only Xiaomi can do that.
Thanks for the research, but I can't understand why then everything works on miui china official 13.0.6, but not on the same version of XiaomiEu?

  • Like
Reactions: eminos

Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322
Thanks for the research, but I can't understand why then everything works on miui china official 13.0.6, but not on the same version of XiaomiEu?
Don't have an answer for that right now, I don't have a device where I can make the needed tests.
You can make a log (same adb logcat command as above) from China ROM if you wanna help out.


Marblehead

Members
Jan 3, 2022
14
15
That only means that whether CN hardware or GL/GLOBAL hardware doesn't matter, that's good.
The above logs confirm that Xiaomi somehow broke the firmware support for 5GHz bands over 5700.
This is from your logs on Mi 11 / Ultra (probably all Snapdragon 888 are affected):
Code:
D wpa_supplicant: nl80211: Event message available
D wpa_supplicant: nl80211: Drv Event 113 (NL80211_CMD_WIPHY_REG_CHANGE) received for wlan0
D wpa_supplicant: nl80211: Regulatory domain change
D wpa_supplicant:  * initiator=2
D wpa_supplicant:  * type=0
D wpa_supplicant:  * alpha2=GB
D wpa_supplicant: wlan0: Event CHANNEL_LIST_CHANGED (27) received
I wpa_supplicant: wlan0: CTRL-EVENT-REGDOM-CHANGE init=DRIVER type=COUNTRY alpha2=GB
D wpa_supplicant: wlan0: Updating hw mode
D wpa_supplicant: nl80211: Regulatory information - country=GB (DFS-ETSI)
D wpa_supplicant: nl80211: 2402-2482 @ 40 MHz 20 mBm
D wpa_supplicant: nl80211: 5170-5250 @ 80 MHz 23 mBm (no outdoor)
D wpa_supplicant: nl80211: 5250-5330 @ 80 MHz 23 mBm (no outdoor) (DFS)
D wpa_supplicant: nl80211: 5490-5710 @ 160 MHz 30 mBm (DFS)
D wpa_supplicant: nl80211: 5945-6425 @ 160 MHz 24 mBm
D wpa_supplicant: nl80211: Added 802.11b mode based on 802.11g information
D wpa_supplicant: nl80211: Mode IEEE 802.11g: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484[DISABLED]
D wpa_supplicant: nl80211: Mode IEEE 802.11a: 5180 5200 5220 5240 5260[RADAR] 5280[RADAR] 5300[RADAR] 5320[RADAR] 5500[RADAR] 5520[RADAR] 5540[RADAR] 5560[RADAR] 5580[RADAR] 5600[RADAR] 5620[RADAR] 5640[RADAR] 5660[RADAR] 5680[RADAR]
D wpa_supplicant: nl80211: Mode IEEE 802.11a: 5935[DISABLED] 5955 5975 5995 6015 6035 6055 6075 6095 6115 6135 6155 6175 6195 6215 6235 6255 6275 6295 6315 6335 6355 6375 6395 6415 6435[DISABLED] 6455[DISABLED] 6475[DISABLED] 6495[DISABLED]
D wpa_supplicant: nl80211: Mode IEEE 802.11b: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484[DISABLED]

I wificond: Regulatory domain changed to country: GB on wiphy_index: 0
I wificond: add channel type 3 support at wiphy index: 0
I wificond: 2.4Ghz frequencies: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472
I wificond: 5Ghz non-DFS frequencies: 5180 5200 5220 5240
I wificond: 5Ghz DFS frequencies: 5260 5280 5300 5320 5500 5520 5540 5560 5580 5600 5620 5640 5660 5680 5700
I wificond: 6Ghz frequencies: 5955 5975 5995 6015 6035 6055 6075 6095 6115 6135 6155 6175 6195 6215 6235 6255 6275 6295 6315 6335 6355 6375 6395 6415
I wificond: 60Ghz frequencies:

And this is from Mi 10 (latest Weekly):
Code:
I wificond: Regulatory domain changed to country: GB on wiphy_index: 0
I wificond: 2.4Ghz frequencies: 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472
I wificond: 5Ghz non-DFS frequencies: 5180 5200 5220 5240 5745 5765 5785 5805 5825 5845 5865
I wificond: 5Ghz DFS frequencies: 5260 5280 5300 5320 5500 5520 5540 5560 5580 5600 5620 5640 5660 5680 5700 5720
I wificond: 6Ghz frequencies:
I wificond: 60Ghz frequencies:

Notice something missing in your logs?
Code:
non-DFS: ... 5745 5765 5785 5805 5825 5845 5865
DFS: ... 5720

Which means:
Code:
CH  | Freq
144 = 5720
149 = 5745
153 = 5765
157 = 5785
161 = 5805
165 = 5825
169 = 5845
173 = 5865

Unfortunately, it's not possible to fix the firmware. Only Xiaomi can do that.
Thank you very much Igor for the clarification and your research.


moarfish

Members
Feb 19, 2022
13
15
I have the same problem with my Mi 11 Pro. I have my router 5GHz channel set to 153 and my Mi 11 Pro cannot detect the SSID of 5GHz Wifi after update to MIUI 13 EU ROM (It works normally on MIUI 12). If I change my region to China and restart my phone, I can connect to the 5GHz Wifi Channel 153 temporary. When I am away my router for a while and get back later, it lost the 5GHz Connection again. I have to restart my phone again to detect the 5GHz SSID.
The restart method only works if I set the region to China. If I have the region in Hong Kong, it cannot detect 5Ghz network with channel 153 no matter how many time I restart my phone.

  • Like
Reactions: tasar

Igor Eisberg

Developer
Staff member
Oct 6, 2016
7,465
322
I have the same problem with my Mi 11 Pro. I have my router 5GHz channel set to 153 and my Mi 11 Pro cannot detect the SSID of 5GHz Wifi after update to MIUI 13 EU ROM (It works normally on MIUI 12). If I change my region to China and restart my phone, I can connect to the 5GHz Wifi Channel 153 temporary. When I am away my router for a while and get back later, it lost the 5GHz Connection again. I have to restart my phone again to detect the 5GHz SSID.
The restart method only works if I set the region to China. If I have the region in Hong Kong, it cannot detect 5Ghz network with channel 153 no matter how many time I restart my phone.
Doesn't mean much because for Wi-Fi, region is being later set to your telephony country code.


tasar

Members
Mar 19, 2017
59
20
Since it has apparently turned out that it is the xiaomi.eu rom, because the CN version does not seem to have the problem, is there any news?
Is that possibly the reason for skipping the last weekly on the Mi11ultra?

  • Like
Reactions: n_a_p
