Mi Max Pro(helium) Quick Charge Capability

Discussion in 'Xiaomi Mi Max / Pro' started by Ramy Zahran, Nov 7, 2016.

  1. Ramy Zahran

    Sep 4, 2016
    3
    0
    13
    Male
    Hi

    I know that mi Max is capable of quick charge 3.0 as per the PDF from Qualcomm,but i bought a qc3 certified charger for my mimax Helium 128gb,with a decent cable as well,but I was disappointed to find out it charges the same as the original Xiaomi charger,tried different number of chargers/cables combos but still no luck..

    I'm running the latest Xiaomi.eu weekly,i just want to know if there is a setting or toggle that controls the QC3.0 or what exactly am I missing.

    Sent from my MI MAX using Tapatalk

  2. Byggeren

    ByggerenMembers

    Jun 16, 2014
    71
    24
    20
    Male
    My only suggestion is to try with another cable. Even with QC3.0 this battery takes a while to charge, but it is clearly faster with QC3.0 chargers on my phone compared to the original charger.

    Ramy Zahran likes this.
  3. shaglord

    shaglordMembers

    Jul 23, 2016
    7
    2
    13
    qc3 allows for up to 12v but I can confirm that my max never goes over 8v and 1.7a.

    The difference is then small to the original, but it is there. Charging time is 2-3h instead of 3-4h.

    /s

    Ramy Zahran likes this.
  4. OrionBG1

    OrionBG1Members

    Oct 14, 2016
    6
    1
    15
    Male
    Bulgaria
    My Mi Max 128GB is charging for about 2:57 - 3:00 with the original charger (from about 12%) and with an Aukey QC 3.0 charger it is the same time... The only difference is that it charges faster in the beggining but slows down later... or maybe I'm imagining it. Tested with both MIUI original ROMs and xiaomi.eu ROMs

    Ramy Zahran likes this.
  5. Ramy Zahran

    Sep 4, 2016
    3
    0
    13
    Male
    Update: after flashing the latest weekly I got it working like a charm
    The charger is blitzwolf qc3 and a remax 2.4Amp cable.

    Charges within 2 hrs while device is on [​IMG]

    Sent from my MI MAX using Tapatalk

  6. eddymaguro

    eddymaguroMembers

    Nov 25, 2016
    2
    0
    13
    Male
    I charge my Mi Max 64gb using Samsung QC 2.0 is charging way faster than the charger came from the Mi Max box. I'm planning to buy Aukey charger

  7. TEO ZEE VON

    Nov 27, 2016
    4
    0
    11
    Male
    #7TEO ZEE VON,Dec 2, 2016
    Last edited: Dec 2, 2016
    I'm a electronics engineer and I've custom made a volt + ammeter to test the quick charge because Miui does not show Quick Charge info when plug into a Qualcom Certified QC Charger like other phones.
    I've confirm that Mi MAX come with QC3.0 but it charge faster with QC2.0.
    If you want to test your QC charger is working or not, you need to wait until your phone is fully charge. Pull down the notification bar and there is a charging notification telling you how much time it took to fully charge.
    Standard charger come with Mi Max took 2hrs 50min - 3hrs and QC2.0 charger took only 1hr 20mins.

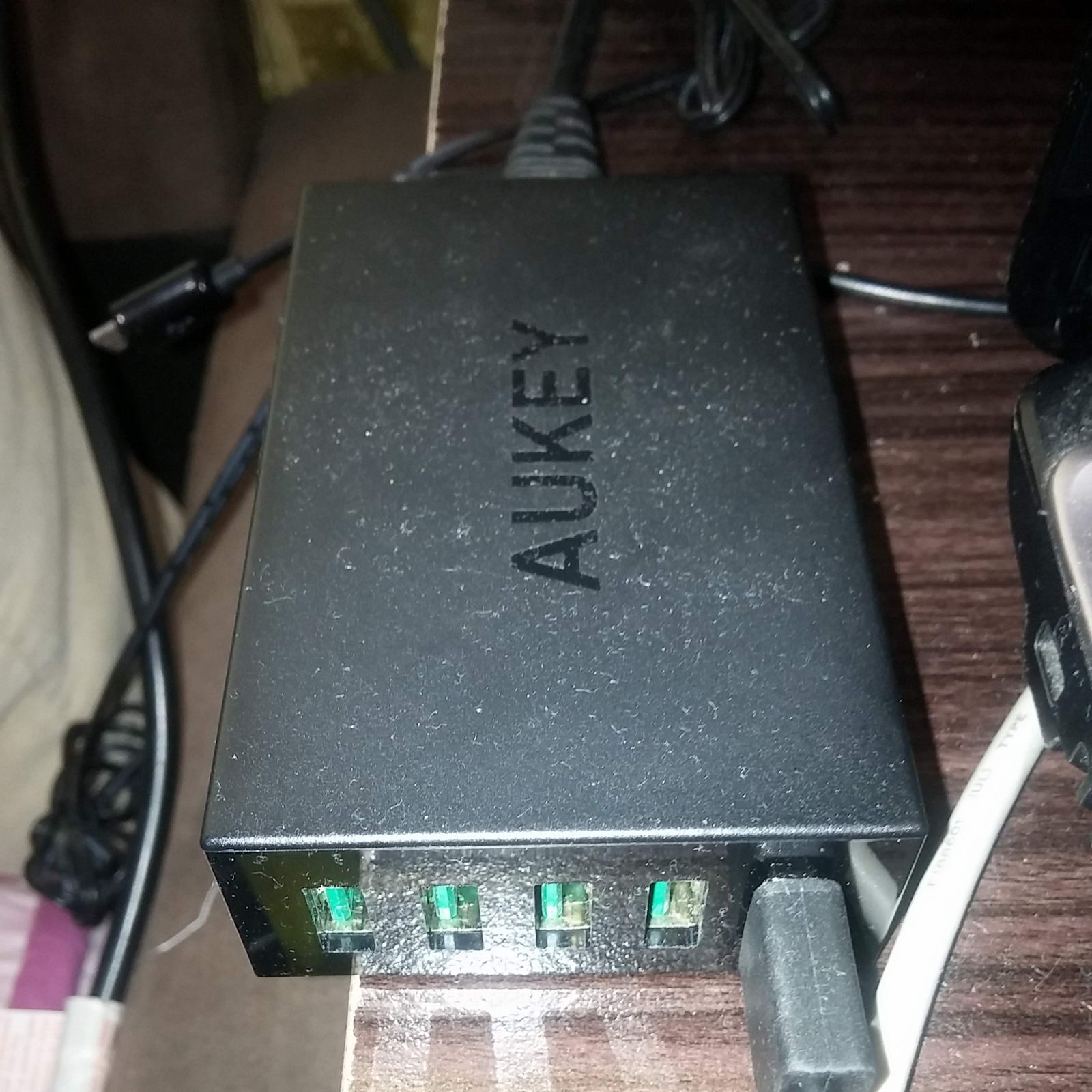

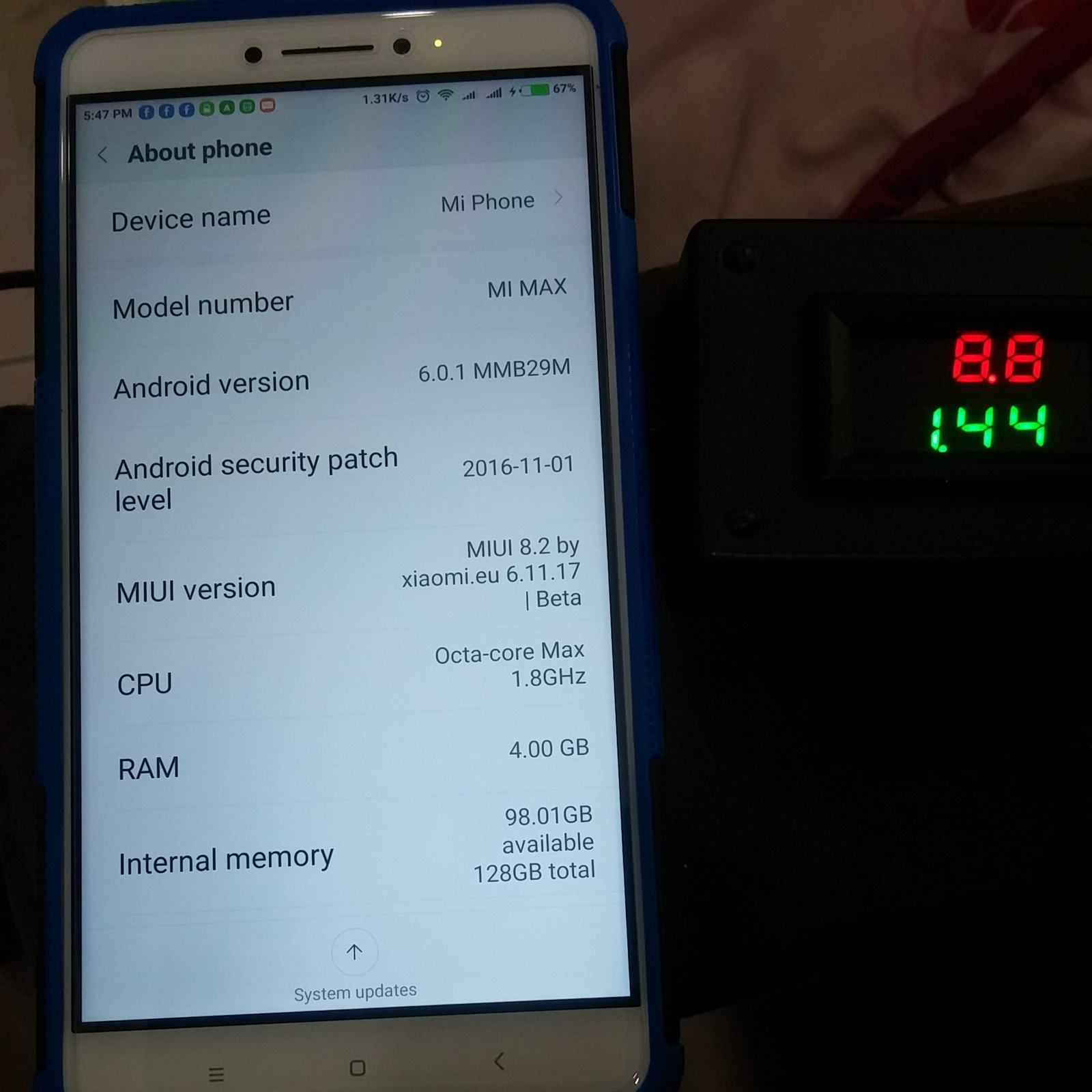

    In the photo show that I'm using Aukey Quick Charge 2.0 Charger. Second photo show that my Mi Max charge at 8.8V 1.44A from my custom made device.

  8. Tru3Avalon

    Tru3AvalonMembers

    Jun 25, 2016
    39
    11
    20
    Male
    I bought an avatar quick charger Qualcomm 2.0 certified and it charges much faster and now with the latest firmware it does show the quickcharge icon when pluged in , tested on mi max hydrogen

  9. OrionBG1

    OrionBG1Members

    Oct 14, 2016
    6
    1
    15
    Male
    Bulgaria
    I've never seen a quickcharge icon! Please provide a screenshot.

  10. TEO ZEE VON

    Nov 27, 2016
    4
    0
    11
    Male
    May I know which version of firmware? Android 6.0 or 7.0? Any screenshot?

  11. albertkuba

    albertkubaMembers

    Feb 20, 2016
    301
    73
    50
    Male

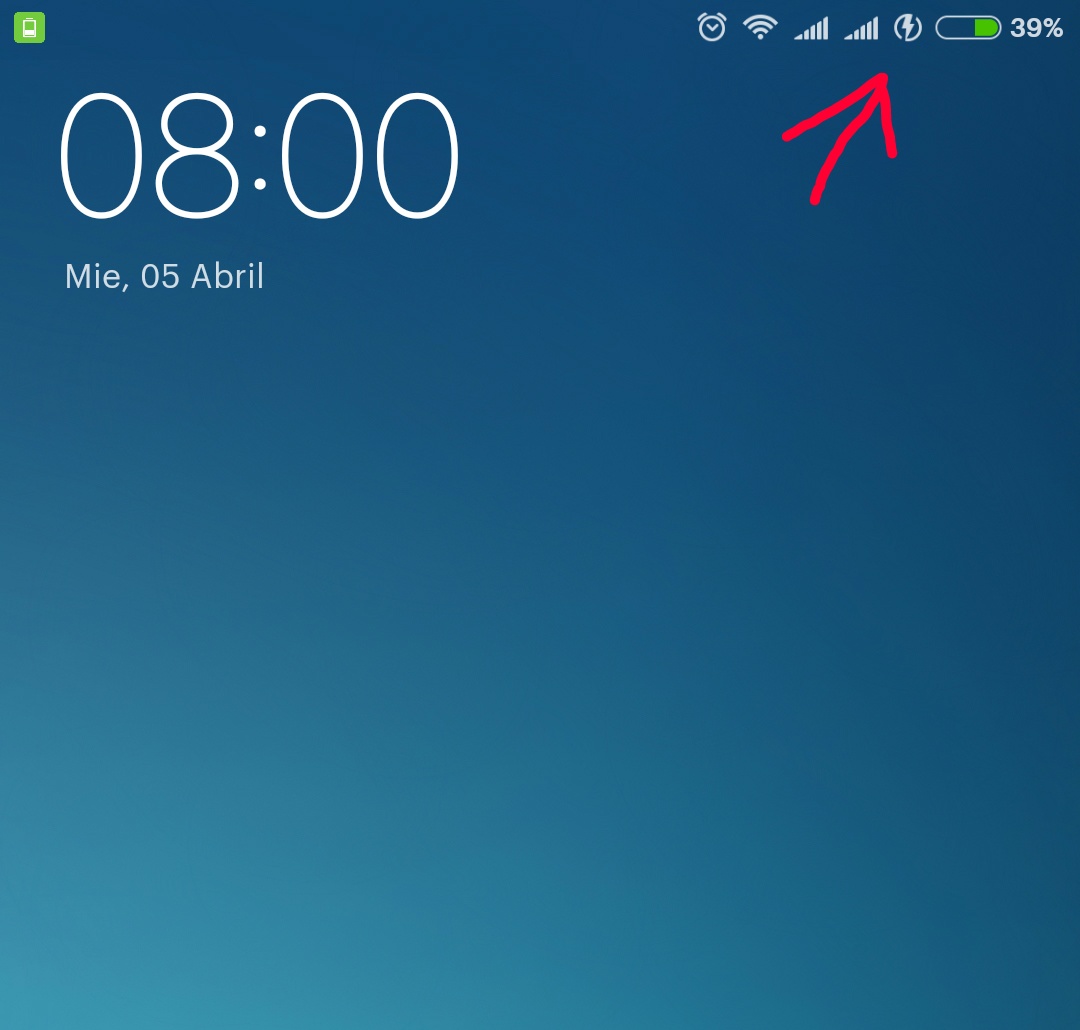

    When QC besides the battery icon there is a "flash" in circle it means it's working.Hidrogen latest developer N,now about 2 hours full charged before about 3h 45m

  12. Tru3Avalon

    Tru3AvalonMembers

    Jun 25, 2016
    39
    11
    20
    Male
    #12Tru3Avalon,Mar 31, 2017
    Last edited: Apr 7, 2017
    Latest Android 7.0 weekly version before on older versions it did not work and show , but sometimes after a restart i have to plug in the charger two times into the phone to get the icon and start quick charging.

  13. OrionBG1

    OrionBG1Members

    Oct 14, 2016
    6
    1
    15
    Male
    Bulgaria
    Is this the "Flash" Icon you are talking about? If it's this one then this is just how the charging indicator looks like... I get this icon even if I charge it from a PC's USB port...
    If it is something else, please provide a screenshot.
    I'm on the latest MIUI8.2 7.3.30 Global Dev and I've never seen a different/additional icon exept this one (and the green one in notifications showing the remaining charging time)
    Also for me the charging time (from about 15% - 20% ) is always about 2:15 - 2:35hours... It was like that even with the stock charger!

    Helium 128GB


    Attached Files:

    • a1.jpg
      File size:
      6 KB
      Views:
      111
  14. albertkuba

    albertkubaMembers

    Feb 20, 2016
    301
    73
    50
    Male
    #14albertkuba,Apr 5, 2017
    Last edited: Apr 5, 2017
    If it is something else, please provide a screenshot.
    I'm on the latest MIUI8.2 7.3.30 Global Dev and I've never seen a different/additional icon exept this one (and the green one in notifications showing the remaining charging time)
    Also for me the charging time (from about 15% - 20% ) is always about 2:15 - 2:35hours... It was like that even with the stock charger!


    Yes that one but you don't have a circle so no QC.


    Attached Files:

  15. OrionBG1

    OrionBG1Members

    Oct 14, 2016
    6
    1
    15
    Male
    Bulgaria
    Hmmm... Very interesting... Never seen that and I have two different Aukey Chargers, one QC2.0 and one QC3.0 ...

  16. albertkuba

    albertkubaMembers

    Feb 20, 2016
    301
    73
    50
    Male
    Have you tried with the original cable?

    Enviado desde mi MI MAX mediante Tapatalk

  17. OrionBG1

    OrionBG1Members

    Oct 14, 2016
    6
    1
    15
    Male
    Bulgaria
    Yep... Tried the original, Aukey's cables, some others... every time the same thing...

  18. skengskong

    skengskongMembers

    Apr 11, 2017
    1
    0
    1
    Male
    I chuckle when some claim, mi max can charge the battery in 1 hour 30 minutes. Nonsense!.
    From my observations, Mi max speed only supports QC2.0.

    I have tried many of charger like are Aukey QC2.0, Aukey QC3.0 Tronsmart QC3.0, Blitzwolf QC3.0, Anker QC3.0 and Samsung Fast Adaptive charging (5.3V,2.0A). The cables also supports QC of various brands such as Aukey, Blitzwolf, Cabstone, BAESEUS, CRDC and Samsung original cable.
    Results: remain the same.
    0-100% = 2 hours 50 minutes - 3 hours
    10-100% = 2 hours 35 minute - 45 minutes.
    20-100% = 2 hours 15 minutes - 20 minutes.
    The charging speed is set at 0% or 10% or 20% to 90%.
    After 90%, the charging time is about the same as that between 40-45 minutes.

    If anyone claims they can charge the 4850mAH battery capacity is only 1 hour 30 minutes - 2 hours, I hope they include the first images while charging at 0% / 10% and 20% and the second image, after reaching 100% to prove it.

    Thanks.

  19. albertkuba

    albertkubaMembers

    Feb 20, 2016
    301
    73
    50
    Male
    Thas't right on my hidrogen just QC 2.0 works and takes circa 2 hours from 0-100 %

    Enviado desde mi MI MAX mediante Tapatalk

  20. DJTOMATO

    DJTOMATOMembers

    May 27, 2017
    13
    2
    15
    QC3.0 did not work, i use anker QC2.0 and works OK
