Mi2S - extending size of storage partition

Discussion in 'Xiaomi Mi 2 / Mi 2S' started by stillka, Jul 18, 2013.

  1. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    #1stillka,Jul 18, 2013
    Last edited: Mar 12, 2014
    Hello,
    I have facing problem with (for me) not very optimal partition layout of MI2S 16GB.

    /data partition was too big (around 3GB of free space after all my applications installed) and /storage partition too small (9GB is not too much, few 1080p videos, offline GPS navigation maps, few MP3 albums and you are done).

    So, I decided to change partition layout in this way - remove 2,5GB from /data and add them to /storage (/sdcard) partition.

    If is somebody interested, here is how-to:

    Prerequisites:
    - CWM is installed and complete System1 backup is done
    - connection to phone from PC over adb is functional in CWM
    - OS backup with all other user data is copied to computer (whole internal storage)


    Notice: /data and /sdcard partitions will be removed and re-created with new size, you have to restore all your data from the computer when finished
    Characters after #(including #) are my comments, don't type them into adb command line!
    command you have enter are marked red.


    Preparation:
    - copy content of partition_tools.zip into /system/bin and add executable attributes if necessary
    - reboot phone into CWM, connect phone to PC
    - connect to phone over adb and check if you are root (type "id") and also type "mount" to verify that /system is mounted and ALL other "/dev/block/platform*" partitions are unmounted (/data*, /cache, /sdcard etc...), by default it's not and you have to:
    - mount system partition: mount /system
    - umount cache partition: umount /cache
    - umount data partition(s): umount /data*


    Finally it should looks like that:
    ~ # mount
    rootfs on / type rootfs (rw)
    tmpfs on /dev type tmpfs (rw,nosuid,relatime,mode=755)
    devpts on /dev/pts type devpts (rw,relatime,mode=600)
    proc on /proc type proc (rw,relatime)
    sysfs on /sys type sysfs (rw,relatime)
    /dev/block/platform/msm_sdcc.1/by-name/system on /system type ext4 (rw,nodev,noatime,nodiratime,data=ordered)

    If everything is OK, we can begin:

    - in adb type:
    parted /dev/block/mmcblk0 #this start "parted" and access the storage
    unit MB #we set default unit of size to MB
    print #this display actual partition layout, save this output in txt file!!!

    #example of output:
    Model: MMC SEM16G (sd/mmc)
    Disk /dev/block/mmcblk0: 15.8GB
    Sector size (logical/physical): 512B/512B
    Partition Table: gpt
    Number Start End Size File system Name Flags
    1 17.4kB 89.1MB 89.1MB fat16 modem
    2 89.1MB 178MB 89.1MB fat16 modem1
    3 178MB 179MB 524kB sbl1
    4 179MB 179MB 524kB sbl2
    5 179MB 180MB 1049kB sbl3
    6 180MB 181MB 1049kB rpm
    7 181MB 182MB 1049kB tz
    8 182MB 183MB 524kB DDR
    9 183MB 187MB 4194kB aboot
    10 187MB 188MB 1049kB misc
    11 188MB 191MB 2990kB logo
    12 191MB 192MB 799kB m9kefs1
    13 192MB 193MB 799kB m9kefs2
    14 193MB 193MB 1024B m9kefsc
    15 193MB 201MB 8501kB bk1
    16 201MB 202MB 799kB m9kefs3
    17 202MB 268MB 66.3MB bk2
    18 268MB 284MB 15.7MB boot
    19 284MB 300MB 15.7MB boot1
    20 300MB 316MB 15.7MB recovery
    21 316MB 327MB 11.5MB bk3
    22 327MB 336MB 8389kB ext4 persist
    23 336MB 872MB 537MB ext4 system
    24 872MB 1409MB 537MB ext4 system1
    25 1409MB 1812MB 403MB ext4 cache
    26 1812MB 5570MB 3758MB ext4 userdata
    27 5570MB 15758MB 10188MB ext4 storage

    #because "parted" so far don't have support for ext4 FS resize, we must remove partitions 26 and 27
    #and recreate them with different size from the scratch.
    #still in the "parted" type:

    rm 26 #this remove /data (userdata) partition
    rm 27 #same with /sdcard (storage) partition

    #now we create partitions back with new size
    #(it's up to you to decide new sizes of partitions, in my case I have reduced /data by -2500MB
    #and add them to /sdcard)

    mkpartfs primary ext2 1812 3070 #new partition created, starting on 1812MB and ending on 3070MB
    #=> size of the partition is: 3070 - 1812 = 1258MB (more then enough for my apps, I have still 568MB free in /data...

    mkpartfs primary ext2 3070 15758 #in the same way we re-create storage partition
    name 26 userdata #we have to set back partition labels
    name 27 storage
    quit


    #now we convert new partitions to ext4:
    tune2fs -j /dev/block/mmcblk0p26
    e2fsck -fDp /dev/block/mmcblk0p26
    tune2fs -O extents,uninit_bg,dir_index /dev/block/mmcblk0p26
    e2fsck -fDp /dev/block/mmcblk0p26


    tune2fs -j /dev/block/mmcblk0p27
    e2fsck -fDp /dev/block/mmcblk0p27
    tune2fs -O extents,uninit_bg,dir_index /dev/block/mmcblk0p27
    e2fsck -fDp /dev/block/mmcblk0p27



    #lets run "parted" again to do a final check:
    parted /dev/block/mmcblk0
    unit MB
    print


    #example of correct output:

    Model: MMC SEM16G (sd/mmc)
    Disk /dev/block/mmcblk0: 15758MB
    Sector size (logical/physical): 512B/512B
    Partition Table: gpt

    Number Start End Size File system Name Flags
    1 0.02MB 89.1MB 89.1MB fat16 modem
    2 89.1MB 178MB 89.1MB fat16 modem1
    3 178MB 179MB 0.52MB sbl1
    4 179MB 179MB 0.52MB sbl2
    5 179MB 180MB 1.05MB sbl3
    6 180MB 181MB 1.05MB rpm
    7 181MB 182MB 1.05MB tz
    8 182MB 183MB 0.52MB DDR
    9 183MB 187MB 4.19MB aboot
    10 187MB 188MB 1.05MB misc
    11 188MB 191MB 2.99MB logo
    12 191MB 192MB 0.80MB m9kefs1
    13 192MB 193MB 0.80MB m9kefs2
    14 193MB 193MB 0.00MB m9kefsc
    15 193MB 201MB 8.50MB bk1
    16 201MB 202MB 0.80MB m9kefs3
    17 202MB 268MB 66.3MB bk2
    18 268MB 284MB 15.7MB boot
    19 284MB 300MB 15.7MB boot1
    20 300MB 316MB 15.7MB recovery
    21 316MB 327MB 11.5MB bk3
    22 327MB 336MB 8.39MB ext4 persist
    23 336MB 872MB 537MB ext4 system
    24 872MB 1409MB 537MB ext4 system1
    25 1409MB 1812MB 403MB ext4 cache
    26 1812MB 3070MB 1258MB ext4 userdata #userdata is smaller
    27 3070MB 15758MB 12688MB ext4 storage #storage is bigger, good...

    #now we can quit "adb" and in CWM menu remove dalvik cache and reboot the phone
    #after fist boot we can connect phone to computer and copy our data back to /sdcard
    # then we have to reboot to CMW and do an advanced restore to have user applications (/data) back.

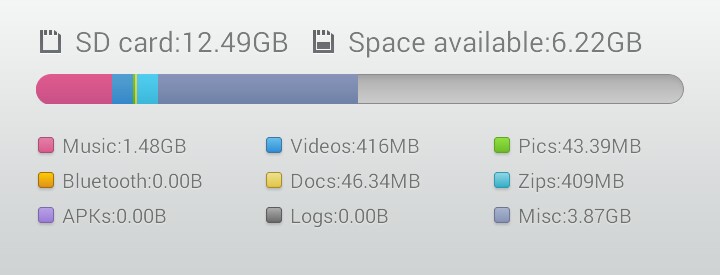

    # after that we can do a final reboot and enjoy new extended storage space :)

    Good luck.

    Hint: I have removed System1 partition and recreated it with size 16MB (no more dualboot) and also lower Cache partition size to 200MB to get more space for Storage, it works fine.


    Attached Files:

  2. Coldbird

    ColdbirdMembers

    Mar 1, 2013
    347
    100
    65
    Male
    Great stuff.

    Gesendet von meinem MI 2 mit Tapatalk 4 Beta

  3. xeGox

    xeGoxMembers

    Feb 26, 2013
    395
    57
    60
    Male
    Wow!

    But.... If I flash a new ROM, it return like original one?

    Inviato dal mio MI 2 con Tapatalk 2

  4. Craig Carroll

    Jul 17, 2013
    81
    4
    18
    Male
    I would also like to know this as I am thinking of using this this guide to extend the app space available on my mi2s

    Sent from my MI 2SC using Tapatalk 2

  5. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    yes of course, you can in the same way extend userdata as well...you have 32GB verion?

  6. Craig Carroll

    Jul 17, 2013
    81
    4
    18
    Male
    Yes I do have the 32gb version. I am enjoying the phone except for the size of the partitions so will look at this closely. Thanks for sharing.

    Sent from my Nexus 4 using Tapatalk 2

  7. biahriel

    biahrielMembers

    May 4, 2011
    5
    5
    13
    Hey i have a trick to earn an extra 536 MB if you don´t use dualboot feature, i removed system1 and then assigned it a size of 1mb (this is necesary to mantain the default partition layout to avoid problems).
    Of course you have to remove the cache partition also and then assign its right size (403mb) again to redistribute the earned space correctly. I really don´t know why is necesary a cache with 403 mb size, maybe we can reduce it also.
    Do not forget to do a full wipe before reboot.

    This is my partition table after the trick:
    [​IMG]

    mpoulieris and d.-.k like this.
  8. As far as I know cache partition isn't that important anymore as it was on 2.3
    And these changes will be kept forever. Flashing a new rom will not change the partition layout.
    However u should be very careful because u can easily brick ur phone.

  9. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    This is good information, maybe I reduce /cache as well, I'll try to find more information about Android 4.1 - 4.2 cache role.

    Regarding dual boot, I am not using it so I also reduce it to 1mb :p

    Sent from my MI 2S using Tapatalk 4 Beta

  10. Josip Tarle

    Feb 19, 2013
    8
    0
    13
    Male
    Can this be done on MI1S?

  11. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    yes, it should work with every phone witch is rooted and have CWM installed.

  12. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    Regarding information I found, cache partition is mostly used by Google market to temporary store apk files before installation to data partition. If apk not fit it the cache, it can't be installed.

    So, if you are playing games (=> installing BIG apk files), you need big cache partition.
    If not, you can consider resize it to smaller (128mb or less).

    It would be interesting to test it...

  13. But you have to know what you are doing because you can't exactly follow this guide due to a different partition table.

  14. xeGox

    xeGoxMembers

    Feb 26, 2013
    395
    57
    60
    Male
    Wonderful news...
    I don't use dual boot!!!
    What about a bigger system partition? (Now I have only 8mb free on sodden position)

    M1cha.... isn't there a possibility to make a zip flashable file or a simple GUI?

    Inviato dal mio MI 2 con Tapatalk 2

  15. xeGox

    xeGoxMembers

    Feb 26, 2013
    395
    57
    60
    Male
    Any news?

    Inviato dal mio MI 2 con Tapatalk 2

  16. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    @xeGox: generally, it's possible, but quicker and more safer solution is remove unnecessary system applications via titanium backup...

  17. xeGox

    xeGoxMembers

    Feb 26, 2013
    395
    57
    60
    Male
    I've already done

    Inviato dal mio MI 2 con Tapatalk 2

  18. manohar

    manoharMembers

    Jun 6, 2013
    904
    243
    80
    Male
    i am struck at parted /dev ...... command. till that point i am ok... once i type parted /dev.... command & press enter in CMD, it says parted is not recognised as an internal or external command.... what is wrong with my procedure ?
    should i type ADB before parted or just type part /dev/..... like that ?
    i am really confused... guide me pls...

  19. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    Hi,

    be sure that you did all steps from "preparing" phase:

    - reboot phone to CWM and mount /system partition
    - umount /cache partition
    - connect to phone over adb and check if you are root (type "id") and also type "mount" to verify that /system is mounted (and /cache unmounted):
    ~ # mount
    rootfs on / type rootfs (rw)
    tmpfs on /dev type tmpfs (rw,nosuid,relatime,mode=755)
    devpts on /dev/pts type devpts (rw,relatime,mode=600)
    proc on /proc type proc (rw,relatime)
    sysfs on /sys type sysfs (rw,relatime)
    /dev/block/platform/msm_sdcc.1/by-name/system on /system type ext4 (rw,nodev,noatime,nodiratime,data=ordered)

    If you have not mounted /system partition, path to "parted" binary doesn't exist!

    Dipkumar likes this.
  20. manohar

    manoharMembers

    Jun 6, 2013
    904
    243
    80
    Male
    I am sorry, as sson as i reboot into CWM & mount the system partition & unmount cache partition,
    i type adb devices.... i am not seeing any serial number. it just says list of devices attached... nothing else....
    if i type adb id also nothing comes up.... some text rolls down & thats it.. again back to where i was....

    should i post the screen shot here ? may be that would help you diagnose the issue right ?
    i will do it soon.... thanks for your helping hand,,,

  21. manohar

    manoharMembers

    Jun 6, 2013
    904
    243
    80
    Male
    hi bro, here is the error i get when i type adb devices after i reboot into CWM recovery & mount system & unmount cache...
    [​IMG]


    but in normal desktop mode, adb device is working properly & listing the device id.... not in CWM recovery mode... why is that ?

  22. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    Hm, it should work...do you have all necessary drivers installed in Windows?

    I have no problem connect device in CWM, I will check at home which driver is used at that time and if it's same like in MIUI...

  23. manohar

    manoharMembers

    Jun 6, 2013
    904
    243
    80
    Male
    yeah.... i have used the same drivers.. it is getting detected normally when i am not in CWM recovery mode in CMD window.... but not when i reboot into recovery mode & choose mount system !!! mo listing.... i am geting above screen shot !!!

    what should i do now ?

  24. stillka

    stillkaMembers

    Aug 31, 2011
    140
    62
    50
    what about re-install CWM? and did you tried another computer/windows?

  25. manohar

    manoharMembers

    Jun 6, 2013
    904
    243
    80
    Male
    nop.... should i ?
    reinstall CWM & copy thoese files once again with change in permissions ?
