PhotoShere JLB 4.2 Camera for Mi 2


Sep 23, 2012
648
170
82
#1
If you want to use the JLB 4.2 Photospere camera on Mi2 here is How to for that

Requiremnets
  1. RootExplorer
  2. Download the zipfile from http://www.sendspace.com/file/itn69v
Procedure
  1. Copy photosphere.zip to sdcard and extract it.
  2. Using Rootexplorer copy GalleryGoogle.apk and Gmscore.apk from app folder in extracted files to /system/app folder (mount that folder as r/w first) of the system partition

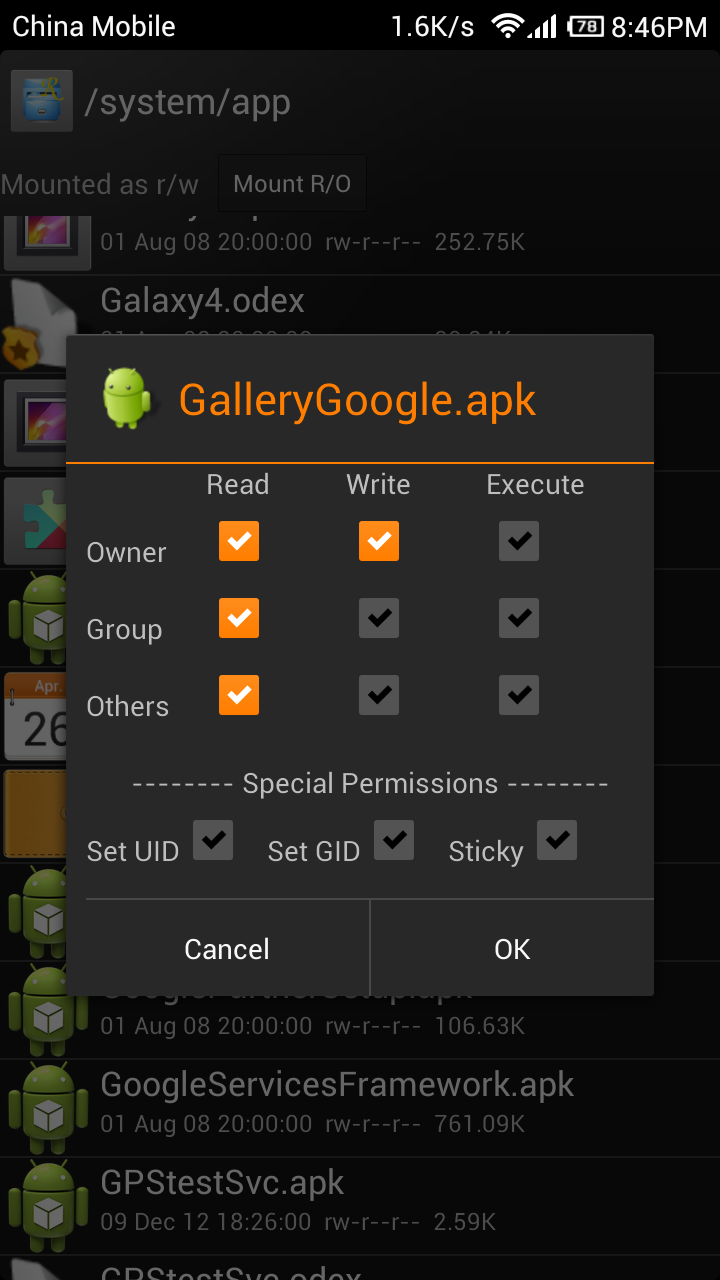

  3. Change the permission for both files as shown in Screen shot 1
  4. Then copy libjni_filtershow_filters.so, libjni_mosaic.so and liblightcycle.so from lib folder of extracted files to the /system/lib folder of system partition.

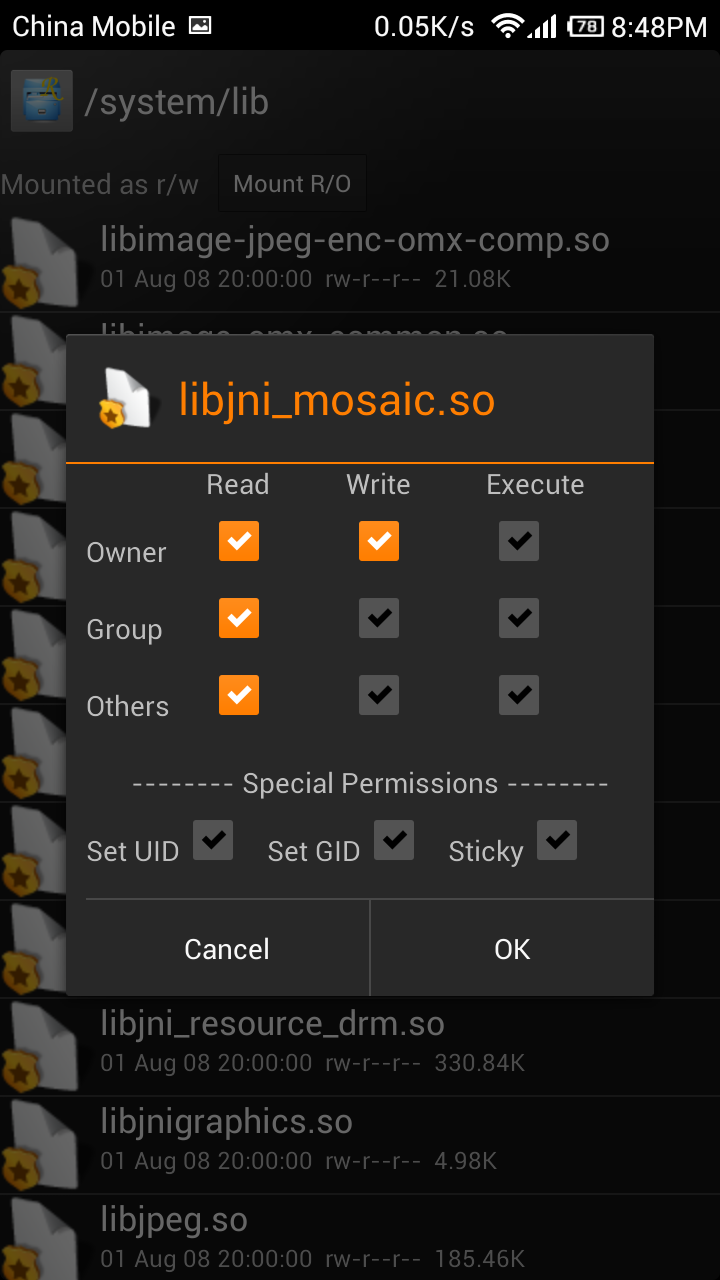

  5. Change the permission for copied files as shown in Screen shot 2
  6. Reboot
its Done.

S. Shot1 S. Shot2

Screenshot_2012-12-12-20-46-47.png Screenshot_2012-12-12-20-48-15.png

NOTE. you will have two Cameras and Galleries in app drawer. one MIUI camera and Gallery and other Google camera and Gallery. You can delete Camera.apk and Camera.odex from /system/app folder if you dont like two camera and galleries this will delete MIUI camera and gallery


hadron

Oct 7, 2012
53
3
18
#9
I will try anyway, but does somebody know if could work on a Mi-1S? (I'm asking because as you know, it has ICS yet...). Thanks!

Update: the app starts, Photosphere mode starts. But when you try to shot a sphere, the "aiming" dot moves up and down (weird), and if you are able to aim to that point (not so easy, since it's moving randomly) the first shot is taken but nothing more happen. It just still stuck on this state, not sowing a second aiming point or so... The app doesn't crash, it just remains at that state until you press back, home or the lock button. Any ideas?

Sep 23, 2012
648
170
82
#11
I will try anyway, but does somebody know if could work on a Mi-1S? (I'm asking because as you know, it has ICS yet...). Thanks!

Update: the app starts, Photosphere mode starts. But when you try to shot a sphere, the "aiming" dot moves up and down (weird), and if you are able to aim to that point (not so easy, since it's moving randomly) the first shot is taken but nothing more happen. It just still stuck on this state, not sowing a second aiming point or so... The app doesn't crash, it just remains at that state until you press back, home or the lock button. Any ideas?
as its a photo sphere so the dots are supposed to be appear up and down but not sure about ICS support as i tested it only for the Mi2. try it again after restarting !

Jan 2, 2013
41
12
18
#13
If you want to use the JLB 4.2 Photospere camera on Mi2 here is How to for that

Requiremnets
  1. RootExplorer
  2. Download the zipfile from http://www.sendspace.com/file/itn69v
Procedure

  1. Copy photosphere.zip to sdcard and extract it.
  2. Using Rootexplorer copy GalleryGoogle.apk and Gmscore.apk from app folder in extracted files to /system/app folder (mount that folder as r/w first) of the system partition
  3. Change the permission for both files as shown in Screen shot 1
  4. Then copy libjni_filtershow_filters.so, libjni_mosaic.so and liblightcycle.so from lib folder of extracted files to the /system/lib folder of system partition.
  5. Change the permission for copied files as shown in Screen shot 2
  6. Reboot
its Done.


S. Shot1 S. Shot2

View attachment 4978 View attachment 4979

NOTE. you will have two Cameras and Galleries in app drawer. one MIUI camera and Gallery and other Google camera and Gallery. You can delete Camera.apk and Camera.odex from /system/app folder if you dont like two camera and galleries this will delete MIUI camera and gallery


hadron
Hi, thanks for your precious job and excuse my bad English (I'm writing from Italy). I have a question on Photosphere installation. I copied and replaced the existing files in the system folders; then chanced the permissions and robooted the phone. But nothing happened. I have the old camera and no trace of photosphere. Thanks in advance.

Sep 23, 2012
648
170
82
#14
wha
Hi, thanks for your precious job and excuse my bad English (I'm writing from Italy). I have a question on Photosphere installation. I copied and replaced the existing files in the system folders; then chanced the permissions and robooted the phone. But nothing happened. I have the old camera and no trace of photosphere. Thanks in advance.
what rom are you using ? miuiandroid ROM or xiaomi chinese ROM? and on what phone ? because you said it replaces some files but it should not replace any files!!!! atleast not on xiaomi 2 !

Sep 23, 2012
648
170
82
#16
Xiaomi mi-2
Android version 4.1.1
MIUI version 2.12.28
Then it should work. Now you should have two cameras, one old mi camera and other with photo sphere! Both have same application name and also two galleries!
I don't know why you have only one camera.

hadron

Sent from my Xiaomi M2

Jan 2, 2013
41
12
18
#17
Hi hadron, "no problem" solved. Yes, because it was a "no problem". I just explain it in case someone else has the same trouble.
I use NovaLauncher, so I put a shortcut of the camera on the home screen and hidden its icon in the drawer. When I disclosed it again I apllied your procedure it worked perfectly. Now I've got two cameras and two galleries.
Thanks a lot again for your time. (I hope my English was enough to be understood!!!)

Jan 4, 2013
215
8
40
#19
Thanks
working great.
can the google camera have different folder for storing images?
so i could use the regular gallery and distinct those taken with miui and those taken with google,
as its just for photosphere, and the rest i'd use the miui one

Sep 10, 2012
32
2
18
#21
ok, it does work, but ..

when I stop the creation of the photosphere, I don't see the progressive bar that indicate the assembly of the shots

and, if I swipe up/down/right/left in the assembled photo, I can't move the prospective like I've seen on youtube: the saved photo is a simple photo, with deformed images (I hope You understand what I mean ..).

What should I do to get a correct "photosphere"?

thanks in advance

Jan 12, 2013
7
0
21
#22
Y
ok, it does work, but ..

when I stop the creation of the photosphere, I don't see the progressive bar that indicate the assembly of the shots

and, if I swipe up/down/right/left in the assembled photo, I can't move the prospective like I've seen on youtube: the saved photo is a simple photo, with deformed images (I hope You understand what I mean ..).

What should I do to get a correct "photosphere"?

thanks in advance
You have to go to gallery(Android Gallery , not MIUI) and wait for a seconds that the photo is creating.
Then you can share by google+ .

Jan 18, 2013
14
4
23
#23
I have one similar problem. The new camera works well, and when i finish with the pano a progress bar indicates me the pano is being made but...when I open the pano with the new gallery I just see a snapshot of the pano, but I can move the image.

Moreover I erased the miui camera, can I reinstall it again?

Sep 23, 2012
648
170
82
#24
I have one similar problem. The new camera works well, and when i finish with the pano a progress bar indicates me the pano is being made but...when I open the pano with the new gallery I just see a snapshot of the pano, but I can move the image.

Moreover I erased the miui camera, can I reinstall it again?
Copy the MIUI gallery app from the zip file of your phone ROM to system/app folder and set permissions like you did before. And reboot

hadron

Sent from my Xiaomi M2

Jan 18, 2013
14
4
23
#25
Copy the MIUI gallery app from the zip file of your phone ROM to system/app folder and set permissions like you did before. And reboot

hadron

Sent from my Xiaomi M2
And this way I´ll recover the miui camera?

And do you know what can I have done, not to see properly the panoramic image??

Im using M2 with 3.1.18 ROM
