Problem after the replacement of the Display [Proximity sensor, camera focus]

Discussion in 'Xiaomi Mi 2 / Mi 2S' started by Fonzy_84, Nov 10, 2014.

  1. Fonzy_84

    Fonzy_84Members

    Nov 10, 2014
    3
    1
    13
    Male
    Hi to all, after the replacement of the Display of my Mi2S, i've the following problems:


    - Proximity sensor don't work, i had to download a component of WSM tool to disable it


    -In the camera, the focus of near objects don't work.




    I have exposed my problems in a group of Italian XIaomi users, and other two users that had replaced display of mi2s, have the same identical problems.


    Someone knows how can we fix these annoying problems?

    Thank You,
    Alfonso

    ilkertr likes this.
  2. paulrlz

    paulrlzMembers

    Nov 23, 2013
    584
    167
    80
    Male
    had same problem,for the proximity, simpli slide the finger in the top left side (where the sensor is) to activate it (i think that the new screen is a bad copy\replacement like mine). For the camera, i ve pressed a bit the sensor (until you hear a little "click")

    Fonzy_84 likes this.
  3. Fonzy_84

    Fonzy_84Members

    Nov 10, 2014
    3
    1
    13
    Male
    I must slide the finger on the glass of the screen or in the component of the mainboard?

  4. paulrlz

    paulrlzMembers

    Nov 23, 2013
    584
    167
    80
    Male
    No, when you call on the screen

  5. Fonzy_84

    Fonzy_84Members

    Nov 10, 2014
    3
    1
    13
    Male
    Ok...the most important things is the camera is done. i fixed it with the advice that you gave me, thank you a lot.
    For the sensor, i prefer to leave it disabled.
    Thank you again :)

  6. gabrielo

    gabrieloMembers

    Jun 8, 2013
    161
    20
    28
    #6gabrielo,Dec 27, 2014
    Last edited: Dec 29, 2014
    @Fonzy_84
    I have the same issue with my proximity sensor after frame + lcd + touch replacement and i solved after weeks and weeks of google surfing :)
    The problem is that the proximity sensor holder of the original frame doesn't work properly on an new frame so you must "manufacture" your own holder.
    I use some iphone and samsung youtube videos to take some ideas and it work perfect now.
    Maybe this video helps

    novakt likes this.
  7. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Good Morning gentlemen.
    I also have these problems.
    The camera does not focus closely, the notification LED does not work and the proximity sensor does not.
    I'll try to do the above procedure for the sensor.
    For the LED and the camera does anyone have any suggestions?

  8. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Well, I tried the procedure described in the video, worked perfectly.
    Now remained only little problems with the LED notifications and the camera.
    I can do without notification LED, but accepted tips to fix the camera's focus.
    Is there a video on the camera fix?

  9. gabrielo

    gabrieloMembers

    Jun 8, 2013
    161
    20
    28
    Nope nothing about camera, at last i dont see it. Led doesn't work at all? Or just the notifications?
    I read some people complaining about the quality of some not originals frames + touch + digitalizers.

  10. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    The procedure that you indicated on the proximity sensor solved a big problem. I thank tips.
    The problem with the camera is only focusing at close range.
    But as work with precise electronic constantly shooting circuits and electronic components.
    Tomorrow I will disassemble the unit again and try something with the cell phone on.
    As for the LED, so far not tried to repair.
    does not work absolutely nothing, I think that is problem with the same screen.
    Sorry for bad english, google translator.

  11. astra64

    astra64Members

    Sep 14, 2013
    17
    1
    13
    Male
    hello,

    I also come to change the screen of my MI2S, and I also had the problem of the focus of the camera, the solution is to be careful before putting the shell back, in the photo sensor housing is a protective rubber has removed and put on the sensor before reassembling the rear hull

  12. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Do you have a picture of this rubber protective?

  13. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Problem solved. Working camera.
    The rubber hood was actually inside the appliance
    Thanks to those who helped with the tips

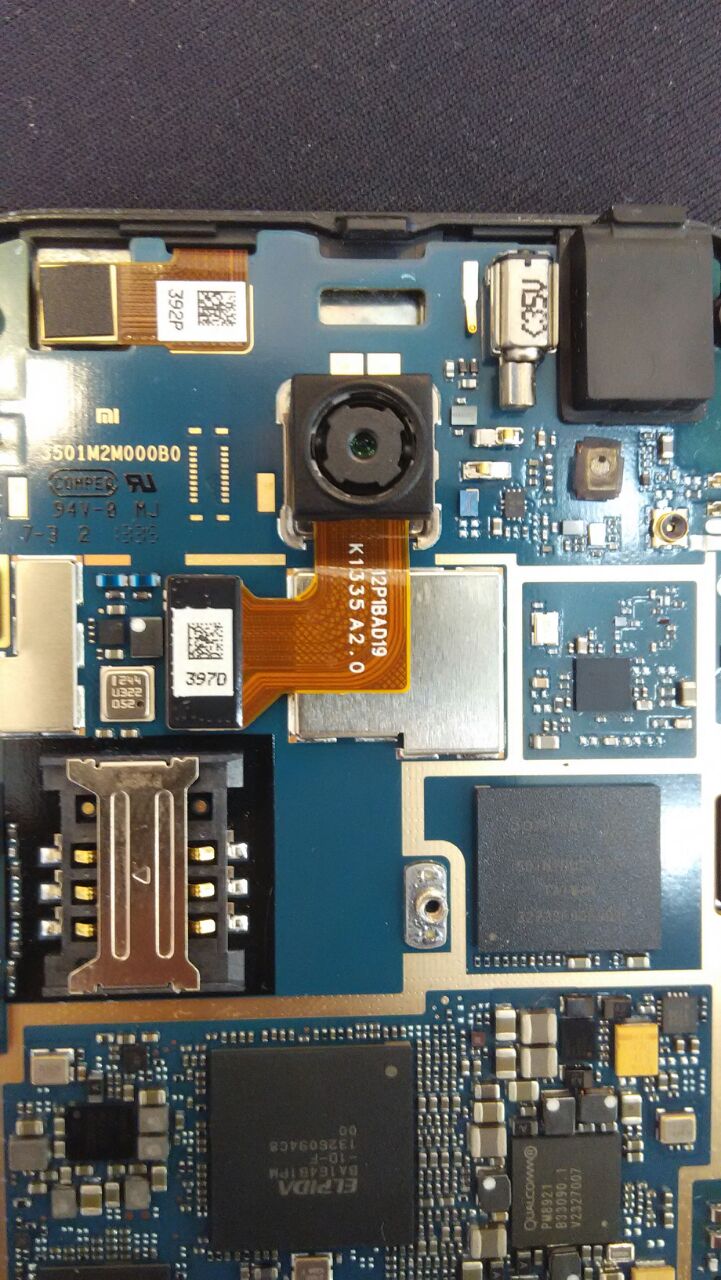

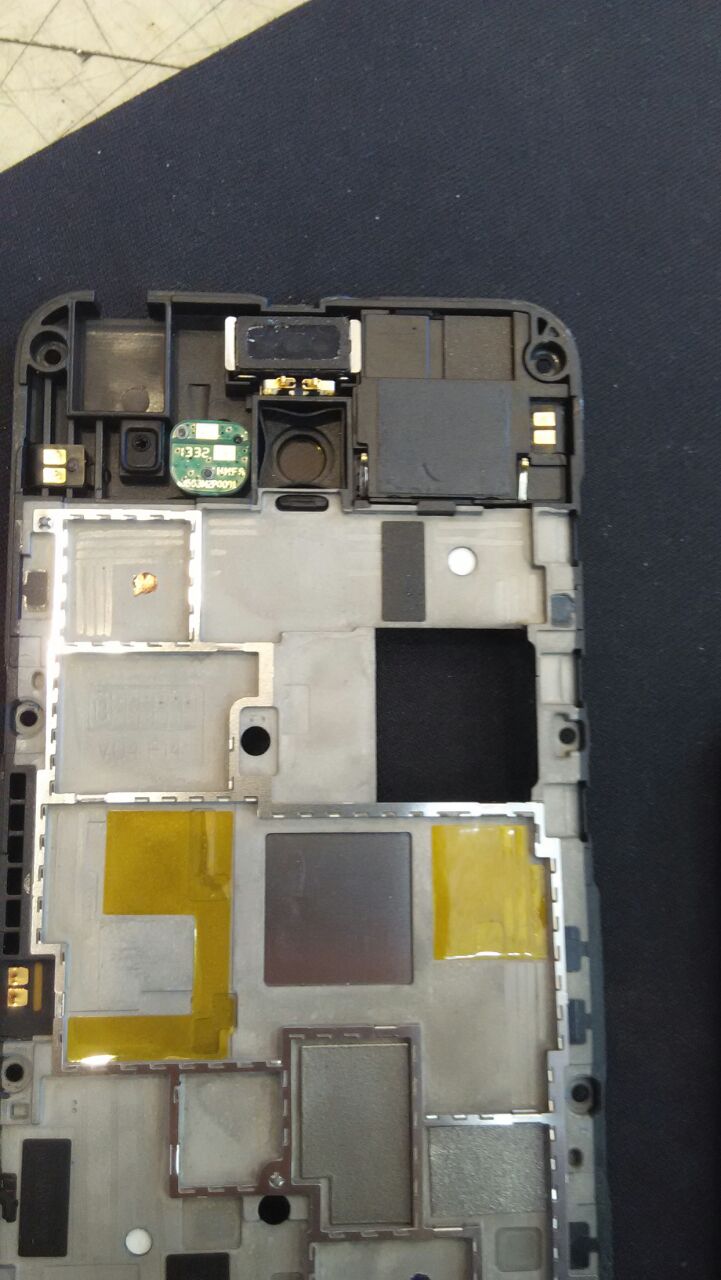

    in the photo below gives to clearly see the rubber on the site where engages the camera module

    camera.jpgsuporte com a borracha.jpg

  14. astra64

    astra64Members

    Sep 14, 2013
    17
    1
    13
    Male
    Exactly, same as me!
    Cool for you

    Mleo likes this.
  15. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Does anyone have any idea of how to proceed with LEDs?
    LEDs are part of the screen or are on the mobo?
    If part of the screen, I not have hopes of fixing

  16. gabrielo

    gabrieloMembers

    Jun 8, 2013
    161
    20
    28
    #16gabrielo,Jan 23, 2015
    Last edited: Jan 23, 2015
    Edited!!
    Its part of the mobo!!

    Great news about screen!

    The blank rectangle is where led contact from mobo to screen.

    [​IMG]

    Mleo likes this.
  17. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Thank U.
    Tomorrow I will reopen my device, must have something blocking the light from the LED.
    Probably should be an acrylic rectangle, and an anti-scratch protection should not have been removed

  18. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    Problem solved!
    On the back of this white plastic piece, shown in the photo above, there is a small "hole". The glass in front of the screen is painted with black ink. the "little hole" was also painted.
    Using the tip of a metal clips removed the painting. I mounted again and the LED works perfect.
    Thanks to forum users my Mi2S is almost like new.

    gabrielo and cbpbxecmecmbeh like this.
  19. Did you remove the rubber?

    Can't get my focus to work closely.

  20. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    good morning.
    Yes, you must remove the rubber.
    Before mounting the back cover again, put the rubber cover over the camera module


  21. Nice. I'll try that.

    Any ideas why it interferes with the focus?

  22. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    I believe that the distance between the camera module and the glass of the rear cover to the problem

  23. We are talking about the rubber that encircles the module, right?

  24. astra64

    astra64Members

    Sep 14, 2013
    17
    1
    13
    Male
    The problem is, when you put the cover with the rubber, it was wrong. But if you put the rubber on the camera module before put the cover, everything is ok

  25. Mleo

    MleoMembers

    Oct 19, 2013
    47
    6
    18
    Male
    exactly.
    If you mount the device without removing the rubber camera module socket, the distance between the lens and the glass will be higher.
