Yellow tint of the display


Jan 6, 2013
25
8
13
#1
hello together. like most of you i'm very satisfied with my mi2. However, I noticed a yellowish shade / tint in the lower display area (in my case about 10% of screen height are affected). This effect is particularly noticeable at lower brightness levels, but it is slightly visible at maximum brightness as well. since i'm allways very fuzzy about those things i allready thought about a replacement. then I suddenly saw the photos of m1cha (the guy who ported custom recovery to the mi2) in his thread (where the effect actually seems to be even worse). parallel investigations have brought me to the conclusion that this seems to be a common problem with current smartphones. devices of vendors like sony, lg, samsung and even apple are affected. Supposedly this is due to the adhesive substance between digitizer and display glass, which im some cases is not yet cured completely and produces this slight yellowing of distinct areas of the display. in the case of the nexus4 the effect seems to be particularly intense at high heat generated by the device. i myself could find any connection between the intensity of the tint and the temperature of the device. also it is said that this tint should vanish over time. after a few days/weeks or so. but i have my mi2 for 1,5 months now and i cannot see any significant improvement.
I would be interested if some of you have the same problem and if so, whether it git better or not.
Thank you.


Gesendet von meinem MI 2 mit Tapatalk 2

Feb 19, 2013
108
9
28
#4
hello together. like most of you i'm very satisfied with my mi2. However, I noticed a yellowish shade / tint in the lower display area (in my case about 10% of screen height are affected). This effect is particularly noticeable at lower brightness levels, but it is slightly visible at maximum brightness as well. since i'm allways very fuzzy about those things i allready thought about a replacement. then I suddenly saw the photos of m1cha (the guy who ported custom recovery to the mi2) in his thread (where the effect actually seems to be even worse). parallel investigations have brought me to the conclusion that this seems to be a common problem with current smartphones. devices of vendors like sony, lg, samsung and even apple are affected. Supposedly this is due to the adhesive substance between digitizer and display glass, which im some cases is not yet cured completely and produces this slight yellowing of distinct areas of the display. in the case of the nexus4 the effect seems to be particularly intense at high heat generated by the device. i myself could find any connection between the intensity of the tint and the temperature of the device. also it is said that this tint should vanish over time. after a few days/weeks or so. but i have my mi2 for 1,5 months now and i cannot see any significant improvement.
I would be interested if some of you have the same problem and if so, whether it git better or not.
Thank you.


Gesendet von meinem MI 2 mit Tapatalk 2
can this effect be countered or played down with changing the following;
Settings -> Display -> Adjust color temperature


5ulo

Members
May 25, 2012
135
15
30
#5
I have MI2 since december and without problem. That yellow tint appeared almost a month ago in upper right corner.. It is always visible whatever high or low backlight I have. My phone wasn't overheated or heat (as I remember) or hadn't any other bugs (hw or sw).. Will that tint disapear? Here are any photos how the tint looks on some bg colors (visible on black too).
https://dl.dropboxusercontent.com/u/7432966/img-fora/mi2-yellowish.jpg

May 29, 2011
1,747
2,839
297
#7
I did overheat my mi2 very often already(kernel development :D ) and I don't have yellow tint so that shouldn't be the problem.
But since users of other devices like Nexus4 also report this issue I think it's a common problem of some lcd manufacurers.

The fact that not everyone has this tint is easy to explain: there is much different hardware between the sold mi2's. What I know:
- at least 2-3 different screens
- many different touchscreens(3-5? I'm not sure)
- 6 different batteries

I try to check if a app with root can identify hardware.

May 29, 2011
1,747
2,839
297
#9

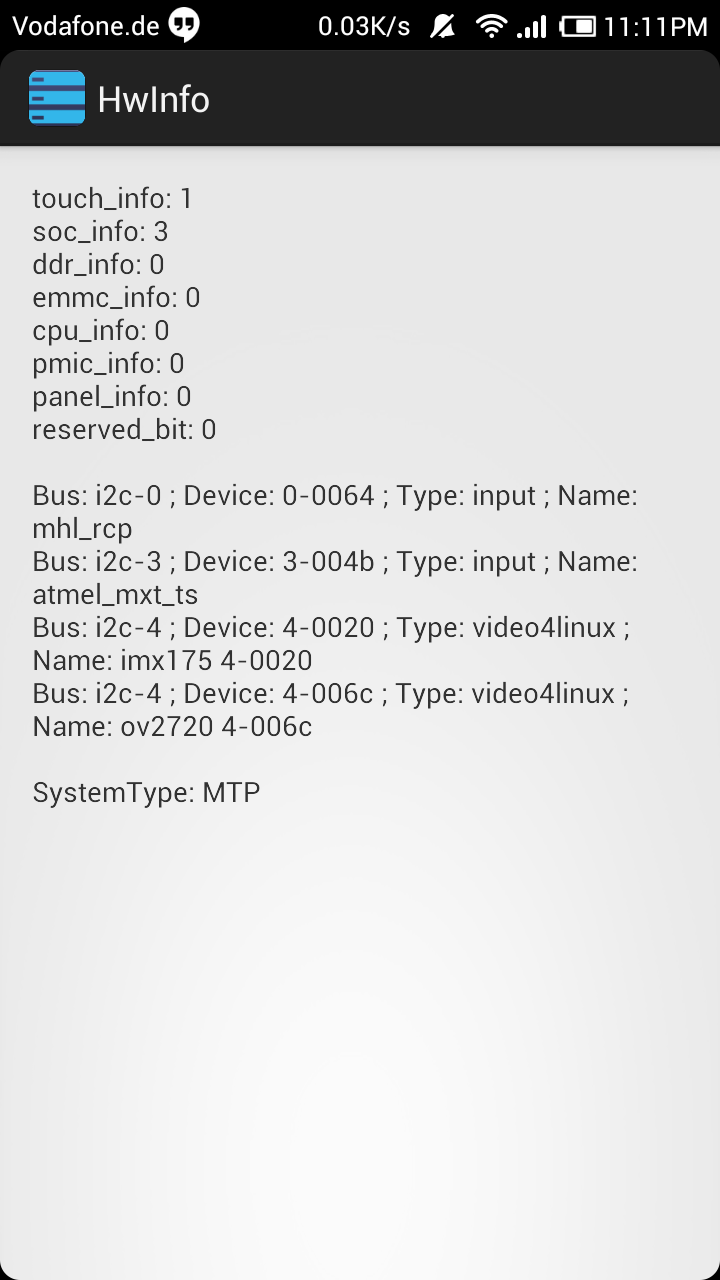

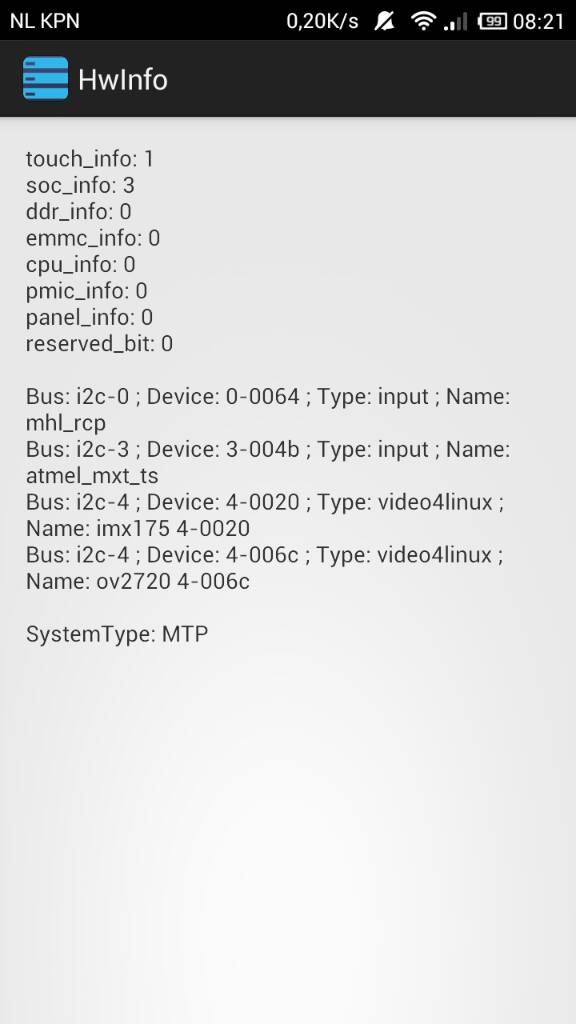

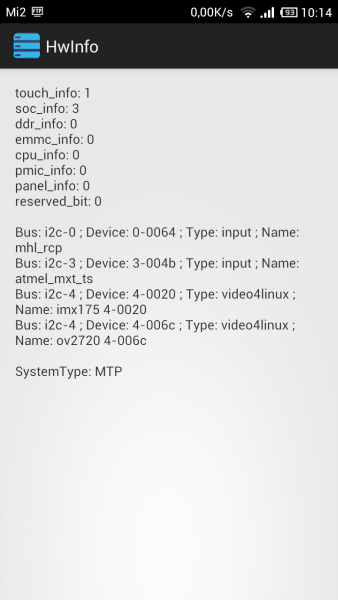

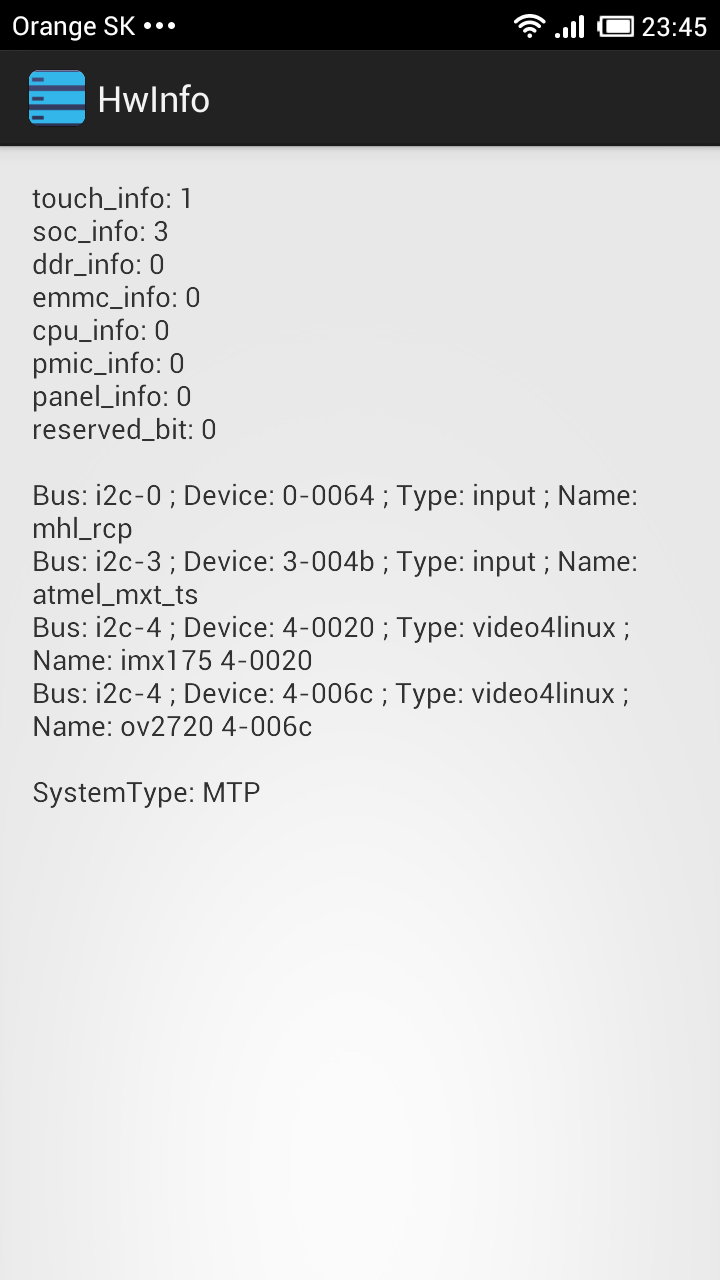

I've created a app which reads some Hardware Info. It would be great if people can post screenshots of the app so we can compare our devices a little bit. The app doesn't need root.

This information will also help me a little bit with custom kernel.


Attachments

Likes: Wajk
May 29, 2011
1,747
2,839
297
#14
so far we all have the same hardware. Others seems to be very rare.
Is there someone with a mi2s? However to come back to the topic: This defect doesn't seem to be limited to one screen model and I hope that you still have warranty.

Feb 5, 2013
209
20
40
#16
I would suggest disassembling the phone so that the screen components are separate from the motherboard and the rest, then reassembling it jutisbly (gently, each equal screw tensions, final tighten equivalently.)

When replacing my screen I had noticed a yellow tint in one of the corners, and doing this resolved my problem.
It seems that the smallest of stresses on the LCD unit can cause this.


5ulo

Members
May 25, 2012
135
15
30
#17
@ubelai this did not help to me

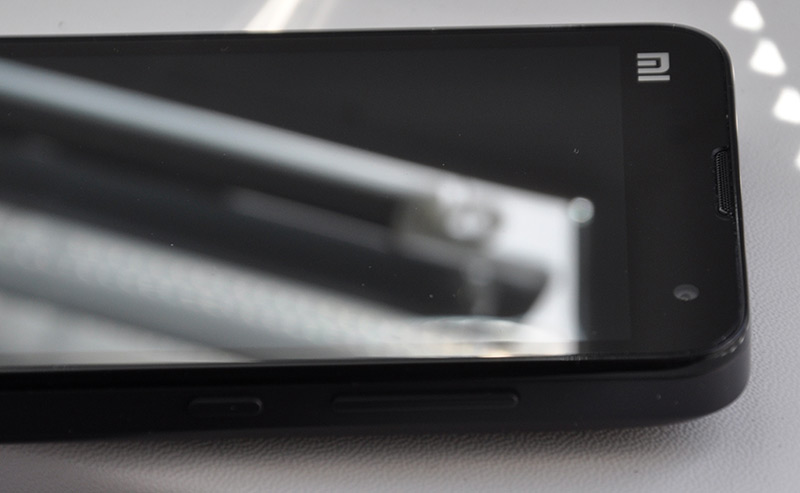

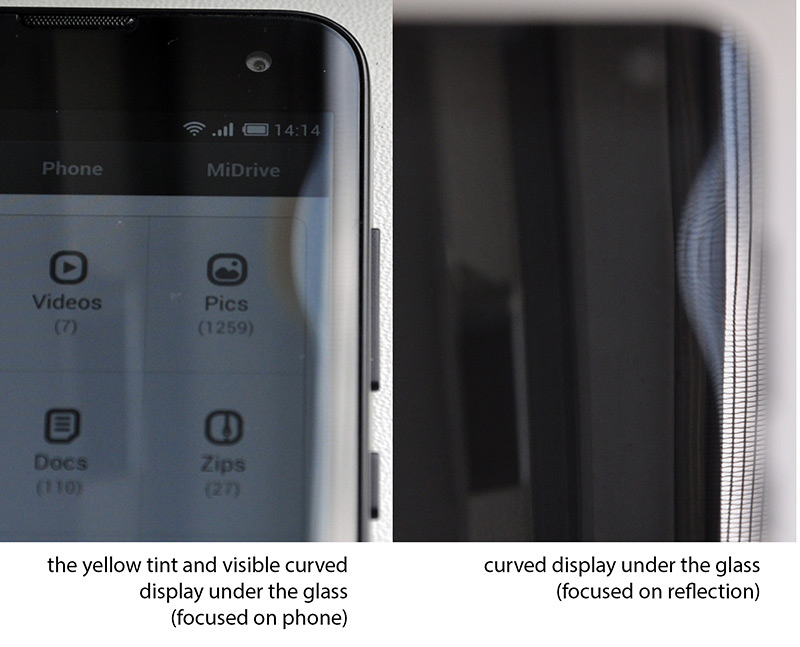

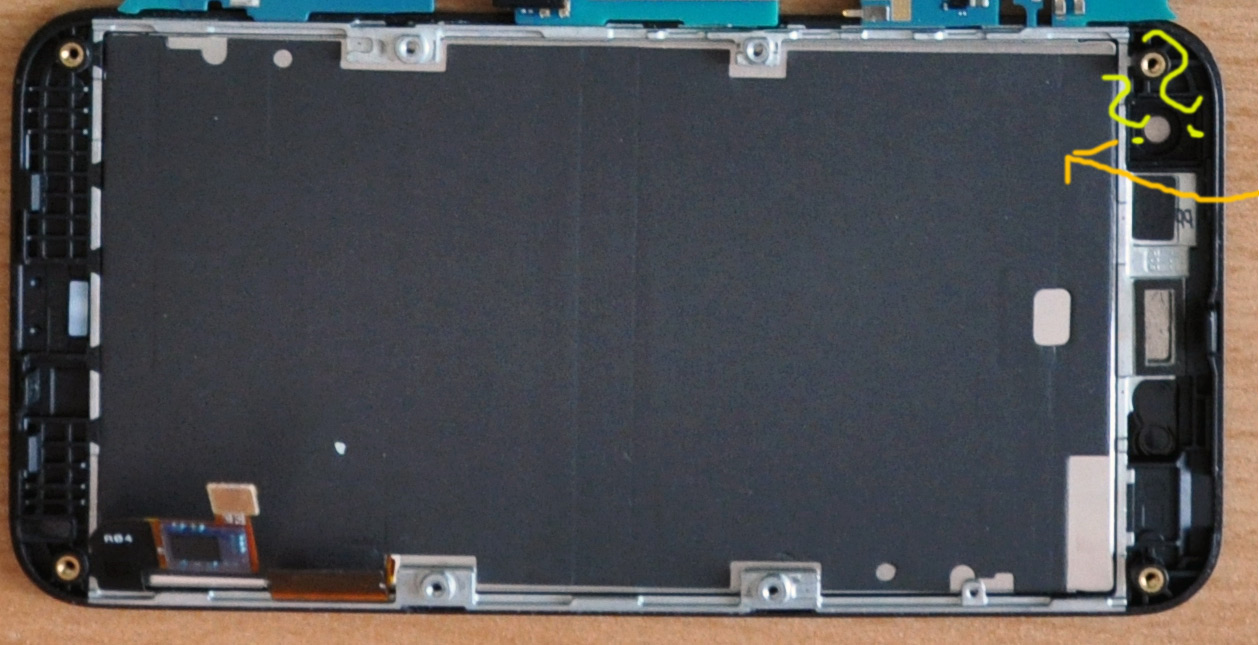

There was nothing wrong after disassembling the phone.. all screws ok before and after sisassembling. Thint still here. But I found something interesting on my display. The display is deformed in some way but under the glass. Contures of the deformation are exactly the same as the yellow spot.
info: First image with questionmarks is only a type of question if it is how it may be :)
mb.jpg reflection.jpg curved.jpg

Feb 5, 2013
209
20
40
#18
@ubelai this did not help to me
There was nothing wrong after disassembling the phone.. all screws ok before and after sisassembling. Thint still here. But I found something interesting on my display. The display is deformed in some way but under the glass. Contures of the deformation are exactly the same as the yellow spot.
info: First image with questionmarks is only a type of question if it is how it may be :)
View attachment 5695 View attachment 5696 View attachment 5697
Sorry to hear it didn't work for you. And damn that looks nasty! Definitely looks like that could be the cause of the tint.


Bhed

Members
Jul 13, 2013
10
0
11
#19
well,, i didnt notice anything until now when i found this topic... my lower part is kind of yellowish.. and now i keep looking at it! Does warranty cover this? Phone isn't even 1 month old


Bhed

Members
Jul 13, 2013
10
0
11
#20
i am trying to contact ******* but they take like 1 hour to answer each email.. its being difficult, 2 or 3 mails per day... and skype is never online =(


Bhed

Members
Jul 13, 2013
10
0
11
#22
hi, im really disapointed how this turned out, i paid 11€ to send my phone to *******, waited almost 3 weeks then i had to pay again for them to send to me trough dhl 18€.. When it got here, the only different thing was the background, all my programs was still installed, and the yellow tint was still there.. so.. i just wasted time and money..

Jul 30, 2013
79
14
18
#23
Is there anyone facing the same issue?
I've mi2s since May and just now a yellow tint appeared...
No particular overheat in my common daily use...
Should I disassemble it???


5ulo

Members
May 25, 2012
135
15
30
#24
How is it possible that the yellow tint shows up after some long time?
@Bhed look at your display and check if it's not curved. Mine was on top right under the glass (the second layer) , so it was factory defect.

Sent from my MI 2 using Tapatalk
