Filesystem got corrupted after flash


DrGigabit

Members
Jul 4, 2021
5
5
Hello,

After installing the 12.6.30 on MI11 using TWRP, my filesystem somehow got corrupted.

1. The Files app closed right after I open it with the popup "disconnected"
2. I don't have any apps installed anymore, neither photos in the gallery
3. When I go into the storage usage, it shows 250Gb occupied by "System". When I install the apps from the google backup, apparently, there is no space anymore.

Further symptoms:

I am able to mount the USB from TWRP and see the internal storage from my PC. But when I plug a USB when the phone is booted normally, I don't see any filesystem mounted.

I did WIPE for data, cache and dalvik to remove the previous OS, but I did not touch system.

Anyone any ideas?


DrGigabit

Members
Jul 4, 2021
5
5

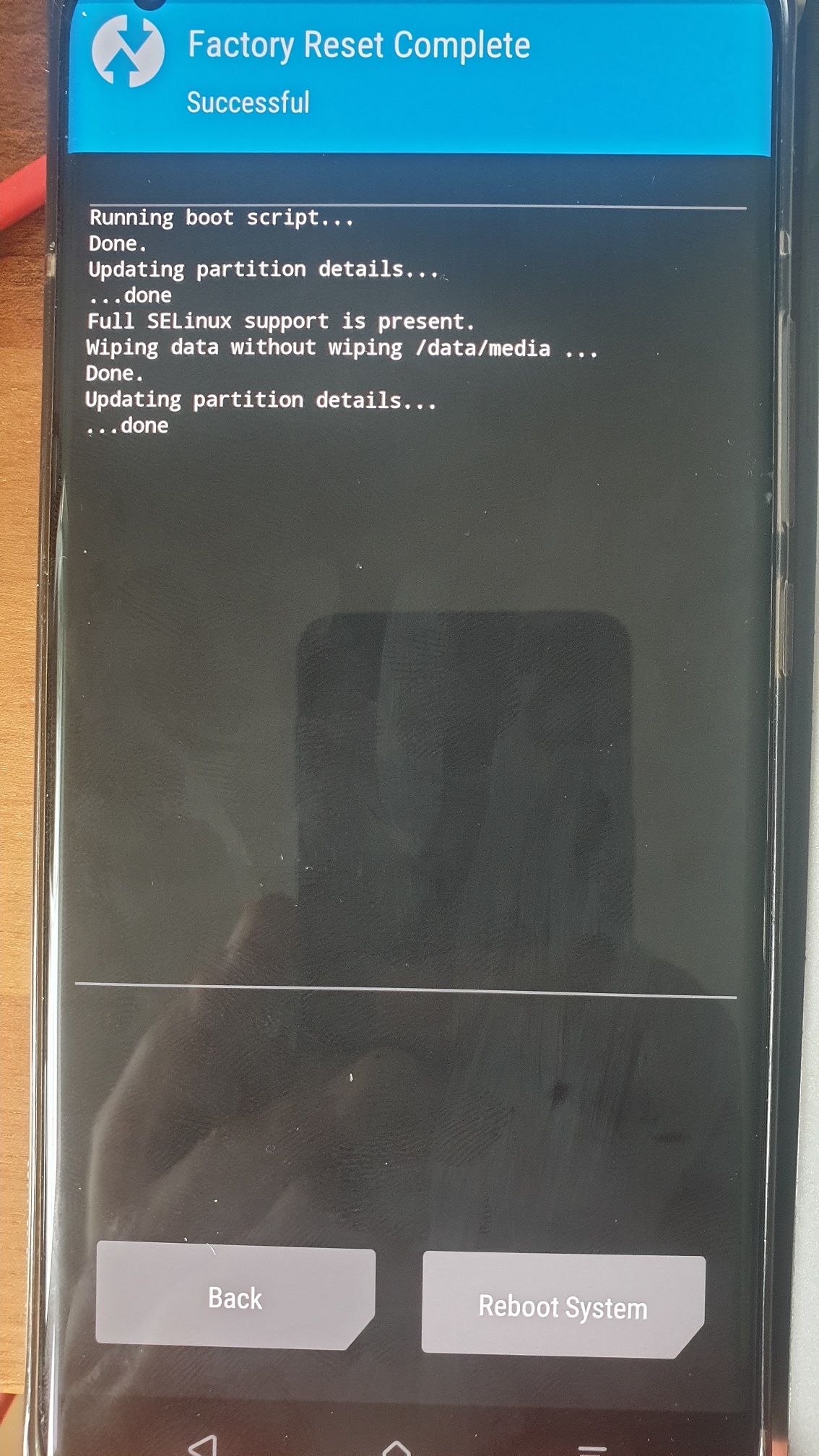

I did, and it shows success, then I load into a new system, activate the phone and the issue pesists -- System shows 250GB
37749


When I try to upload a ROM on /sdcard and install it, it feels there are some errors (perhaps decrypting the filesystem? because when it initially asks for the password, I just cancell and move on).


hoangsang

Members
Aug 12, 2016
236
67
What screen lock method does your phone use? If you use both pattern and pin at the same time, it will not be decrypted on twrp


hoangsang

Members
Aug 12, 2016
236
67
1. Even if you turn off other screen unlocking methods. But I assume it's still stored somewhere in the sytem.
2. To fix this problem, install a rom that still has the original recovery (eg fastboot rom or china rom). Then go to the original recovery and select wipe data.
3. After wiping data, install twrp according to instructions (should copy rom with adb push command)


DrGigabit

Members
Jul 4, 2021
5
5
Used xiaomi.eu_multi_MI11_21.5.12_v12-11-fastboot ROM
Booted the phone into fastboot mode, connected via USB to the laptop
Executed ./windows_fastboot_first_install_with_data_format.bat

Here is the log

Code:
You are going to wipe your data and internal storage. It will delete all your files and photos stored on internal storage. Do you agree? (Y/N) Y
product: venus
product: venus
Sending 'vm-bootsys_ab' (263668 KB)                OKAY [  6.970s]
Writing 'vm-bootsys_ab'                            (bootloader) Partition vm-bootsys_a flashed successfully
(bootloader) Partition vm-bootsys_b flashed successfully
OKAY [  1.164s]
Finished. Total time: 8.143s
Sending 'dsp_ab' (65536 KB)                        OKAY [  1.736s]
Writing 'dsp_ab'                                   (bootloader) Partition dsp_a flashed successfully
(bootloader) Partition dsp_b flashed successfully
OKAY [  0.296s]
Finished. Total time: 2.058s
Sending 'xbl_config_ab' (216 KB)                   OKAY [  0.007s]
Writing 'xbl_config_ab'                            (bootloader) Partition xbl_config_a flashed successfully
(bootloader) Partition xbl_config_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.030s
Sending 'boot_ab' (196608 KB)                      OKAY [  5.205s]
Writing 'boot_ab'                                  (bootloader) Partition boot_a flashed successfully
(bootloader) Partition boot_b flashed successfully
OKAY [  0.879s]
Finished. Total time: 6.121s
Sending 'modem_ab' (242268 KB)                     OKAY [  6.377s]
Writing 'modem_ab'                                 (bootloader) Partition modem_a flashed successfully
(bootloader) Partition modem_b flashed successfully
OKAY [  1.121s]
Finished. Total time: 7.522s
Sending 'vbmeta_system_ab' (4 KB)                  OKAY [  0.001s]
Writing 'vbmeta_system_ab'                         (bootloader) Partition vbmeta_system_a flashed successfully
(bootloader) Partition vbmeta_system_b flashed successfully
OKAY [  0.005s]
Finished. Total time: 0.021s
Sending 'tz_ab' (3640 KB)                          OKAY [  0.097s]
Writing 'tz_ab'                                    (bootloader) Partition tz_a flashed successfully
(bootloader) Partition tz_b flashed successfully
OKAY [  0.047s]
Finished. Total time: 0.187s
Sending 'vbmeta_ab' (4 KB)                         OKAY [  0.002s]
Writing 'vbmeta_ab'                                (bootloader) Partition vbmeta_a flashed successfully
(bootloader) Partition vbmeta_b flashed successfully
OKAY [  0.006s]
Finished. Total time: 0.021s
Sending 'bluetooth_ab' (1084 KB)                   OKAY [  0.029s]
Writing 'bluetooth_ab'                             (bootloader) Partition bluetooth_a flashed successfully
(bootloader) Partition bluetooth_b flashed successfully
OKAY [  0.010s]
Finished. Total time: 0.055s
Sending 'abl_ab' (204 KB)                          OKAY [  0.007s]
Writing 'abl_ab'                                   (bootloader) Partition abl_a flashed successfully
(bootloader) Partition abl_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.027s
Sending 'cpucp_ab' (100 KB)                        OKAY [  0.004s]
Writing 'cpucp_ab'                                 (bootloader) Partition cpucp_a flashed successfully
(bootloader) Partition cpucp_b flashed successfully
OKAY [  0.010s]
Finished. Total time: 0.027s
Sending 'dtbo_ab' (8192 KB)                        OKAY [  0.212s]
Writing 'dtbo_ab'                                  (bootloader) Partition dtbo_a flashed successfully
(bootloader) Partition dtbo_b flashed successfully
OKAY [  0.047s]
Finished. Total time: 0.275s
Sending 'featenabler_ab' (88 KB)                   OKAY [  0.004s]
Writing 'featenabler_ab'                           (bootloader) Partition featenabler_a flashed successfully
(bootloader) Partition featenabler_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.026s
Sending 'vendor_boot_ab' (3692 KB)                 OKAY [  0.096s]
Writing 'vendor_boot_ab'                           (bootloader) Partition vendor_boot_a flashed successfully
(bootloader) Partition vendor_boot_b flashed successfully
OKAY [  0.023s]
Finished. Total time: 0.134s
Sending 'keymaster_ab' (260 KB)                    OKAY [  0.008s]
Writing 'keymaster_ab'                             (bootloader) Partition keymaster_a flashed successfully
(bootloader) Partition keymaster_b flashed successfully
OKAY [  0.031s]
Finished. Total time: 0.080s
Sending 'uefisecapp_ab' (124 KB)                   OKAY [  0.004s]
Writing 'uefisecapp_ab'                            (bootloader) Partition uefisecapp_a flashed successfully
(bootloader) Partition uefisecapp_b flashed successfully
OKAY [  0.010s]
Finished. Total time: 0.029s
Sending 'qupfw_ab' (56 KB)                         OKAY [  0.002s]
Writing 'qupfw_ab'                                 (bootloader) Partition qupfw_a flashed successfully
(bootloader) Partition qupfw_b flashed successfully
OKAY [  0.005s]
Finished. Total time: 0.019s
Sending 'xbl_ab' (3584 KB)                         OKAY [  0.096s]
Writing 'xbl_ab'                                   (bootloader) Partition xbl_a flashed successfully
(bootloader) Partition xbl_b flashed successfully
OKAY [  0.014s]
Finished. Total time: 0.132s
Sending 'devcfg_ab' (52 KB)                        OKAY [  0.002s]
Writing 'devcfg_ab'                                (bootloader) Partition devcfg_a flashed successfully
(bootloader) Partition devcfg_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.022s
Sending 'hyp_ab' (3600 KB)                         OKAY [  0.095s]
Writing 'hyp_ab'                                   (bootloader) Partition hyp_a flashed successfully
(bootloader) Partition hyp_b flashed successfully
OKAY [  0.030s]
Finished. Total time: 0.163s
Sending 'imagefv_ab' (28 KB)                       OKAY [  0.002s]
Writing 'imagefv_ab'                               (bootloader) Partition imagefv_a flashed successfully
(bootloader) Partition imagefv_b flashed successfully
OKAY [  0.004s]
Finished. Total time: 0.019s
Sending 'shrm_ab' (48 KB)                          OKAY [  0.003s]
Writing 'shrm_ab'                                  (bootloader) Partition shrm_a flashed successfully
(bootloader) Partition shrm_b flashed successfully
OKAY [  0.005s]
Finished. Total time: 0.019s
Sending 'aop_ab' (240 KB)                          OKAY [  0.008s]
Writing 'aop_ab'                                   (bootloader) Partition aop_a flashed successfully
(bootloader) Partition aop_b flashed successfully
OKAY [  0.008s]
Finished. Total time: 0.030s
Sending 'cust' (417604 KB)                         OKAY [ 10.262s]
Writing 'cust'                                     OKAY [  0.015s]
Finished. Total time: 10.752s
Sending sparse 'super' 1/7 (738892 KB)             OKAY [ 18.679s]
Writing 'super'                                    OKAY [  0.005s]
Sending sparse 'super' 2/7 (768540 KB)             OKAY [ 19.537s]
Writing 'super'                                    OKAY [  0.011s]
Sending sparse 'super' 3/7 (751520 KB)             OKAY [ 18.961s]
Writing 'super'                                    OKAY [  0.047s]
Sending sparse 'super' 4/7 (785908 KB)             OKAY [ 19.927s]
Writing 'super'                                    OKAY [  0.004s]
Sending sparse 'super' 5/7 (768768 KB)             OKAY [ 19.405s]
Writing 'super'                                    OKAY [  0.006s]
Sending sparse 'super' 6/7 (760128 KB)             OKAY [ 19.181s]
Writing 'super'                                    OKAY [  0.005s]
Sending sparse 'super' 7/7 (771592 KB)             OKAY [ 19.225s]
Writing 'super'                                    OKAY [  0.043s]
Finished. Total time: 148.967s
Setting current slot to 'a'                        OKAY [ 15.082s]
Finished. Total time: 15.251s
Erasing 'metadata'                                 OKAY [  2.091s]
Finished. Total time: 2.207s
Erasing 'userdata'                                 OKAY [  1.191s]

        F2FS-tools: mkfs.f2fs Ver: 1.13.0 (2019-09-24)

Info: Disable heap-based policy
Info: Debug level = 1
Info: Trim is disabled
Info: Set conf for android
Info: Segments per section = 1
Info: Sections per zone = 1
Info: sector size = 512
Info: total sectors = 470990808 (229975 MB)
Info: zone aligned segment0 blkaddr: 512
Info: add quota type = 0 => 4
Info: add quota type = 1 => 5
[f2fs_init_sit_area: 556]       Filling sit area at offset 0x00600000
C:\Users\av\Desktop\fastboost\platform-tools-windows/make_f2fs failed: 3221225477
fastboot: error: Cannot generate image for userdata
Rebooting                                          OKAY [  0.000s]
Finished. Total time: 0.003s

The phone rebooted into the original recovery mode --> wiped the data.

Installed twrp as follows: fastboot boot mi-11-twrp3.5.1-recovery-v21.5.10_decrypted.img
Pushed the latest ROM into device: adb push xiaomi.eu_multi_MI11_21.6.30_v12-11.zip /sdcard
xiaomi.eu_multi_MI11_21.6.30_v12-11.zip: 1 file pushed. 32.5 MB/s (4086123980 bytes in 120.080s)

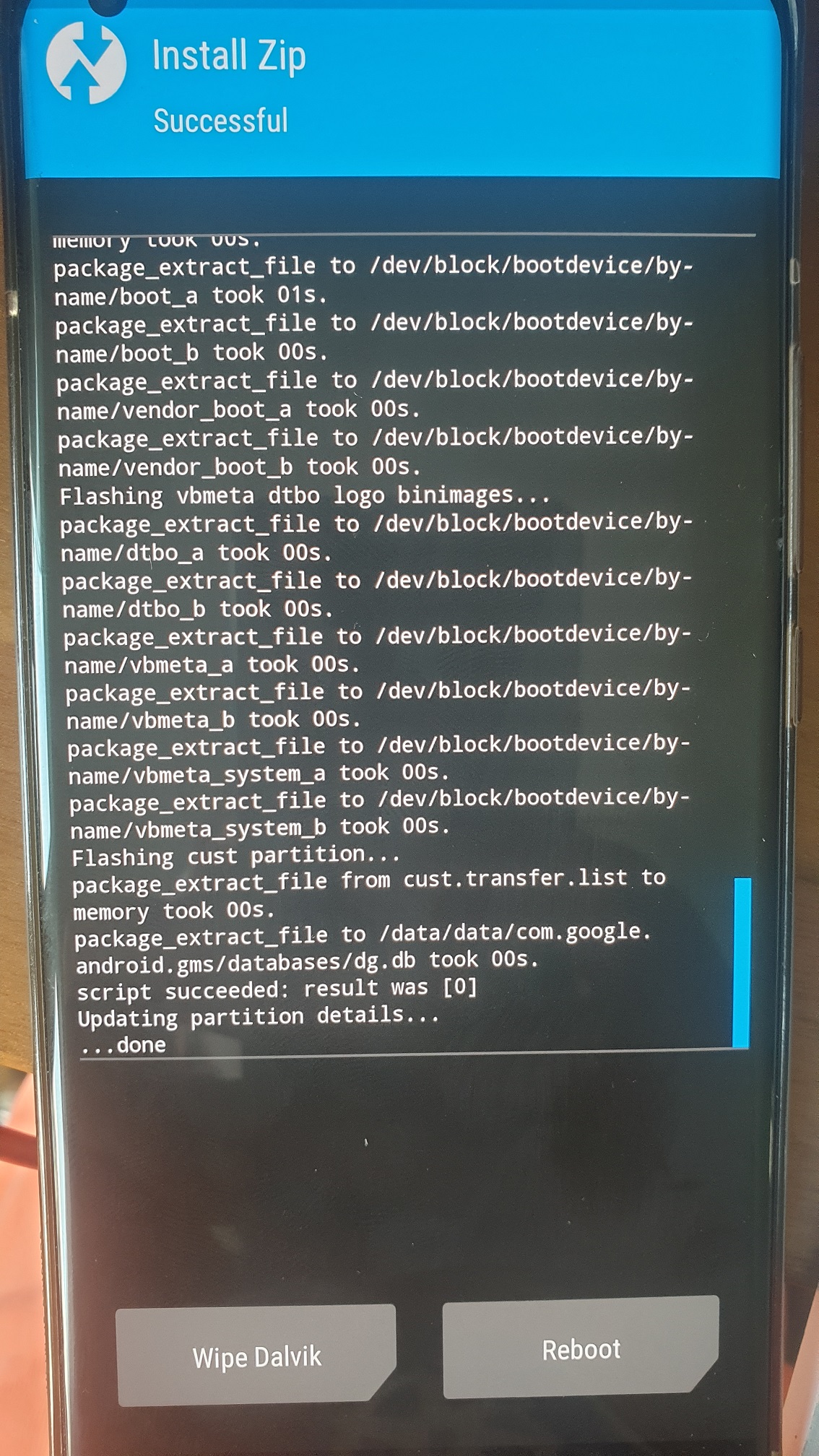

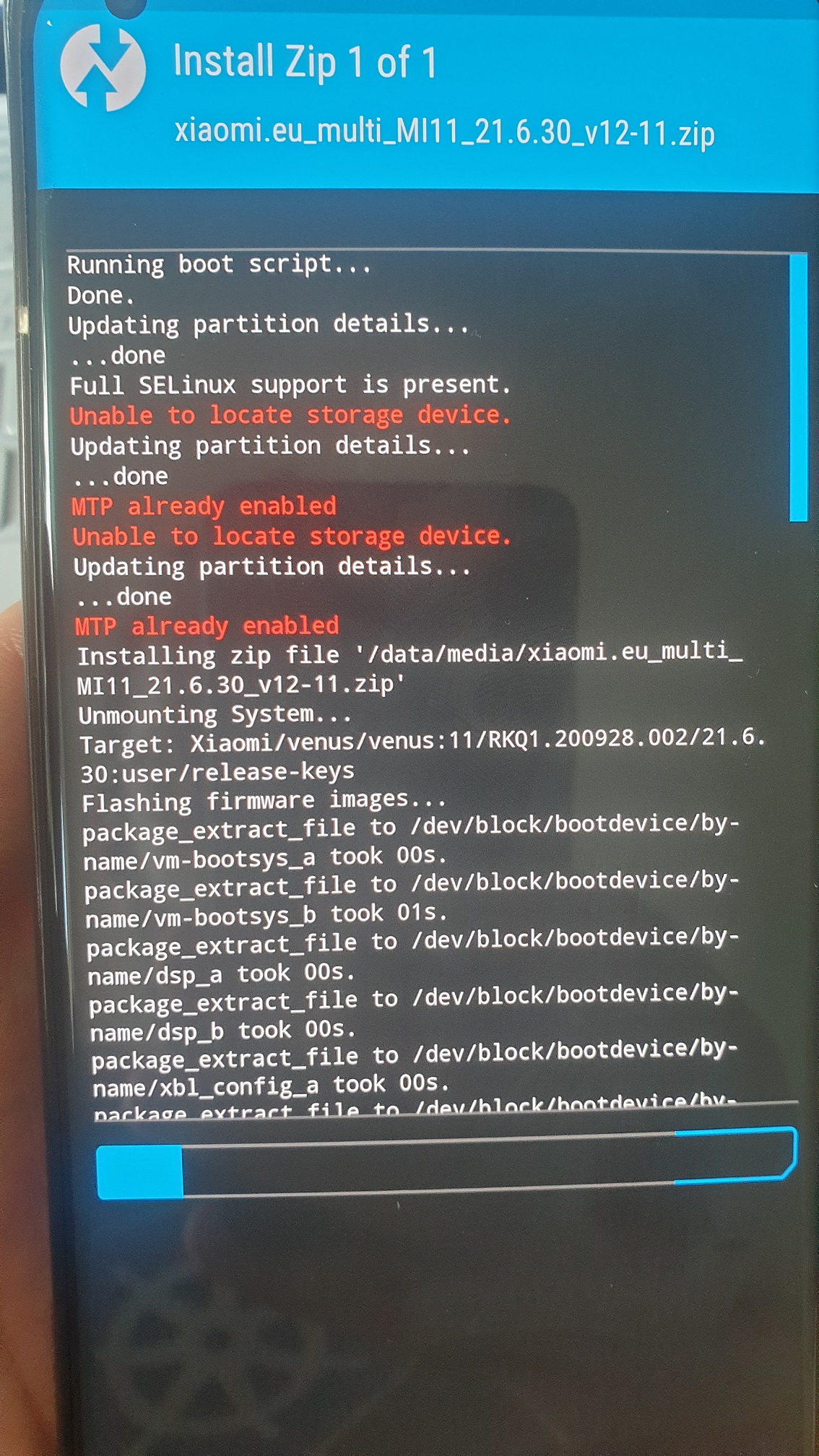

Install -- selected xiaomi.eu_multi_MI11_21.6.30_v12-11.zip

Installation completed. Rebooted.

All works now. The System occupies 14.85 GB. (Despite of the weird error during fastboot: error: Cannot generate image for userdata. Hope it is not major)

  • Like
Reactions: hoangsang

hoangsang

Members
Aug 12, 2016
236
67
Used xiaomi.eu_multi_MI11_21.5.12_v12-11-fastboot ROM
Booted the phone into fastboot mode, connected via USB to the laptop
Executed ./windows_fastboot_first_install_with_data_format.bat

Here is the log

Code:
You are going to wipe your data and internal storage. It will delete all your files and photos stored on internal storage. Do you agree? (Y/N) Y
product: venus
product: venus
Sending 'vm-bootsys_ab' (263668 KB)                OKAY [  6.970s]
Writing 'vm-bootsys_ab'                            (bootloader) Partition vm-bootsys_a flashed successfully
(bootloader) Partition vm-bootsys_b flashed successfully
OKAY [  1.164s]
Finished. Total time: 8.143s
Sending 'dsp_ab' (65536 KB)                        OKAY [  1.736s]
Writing 'dsp_ab'                                   (bootloader) Partition dsp_a flashed successfully
(bootloader) Partition dsp_b flashed successfully
OKAY [  0.296s]
Finished. Total time: 2.058s
Sending 'xbl_config_ab' (216 KB)                   OKAY [  0.007s]
Writing 'xbl_config_ab'                            (bootloader) Partition xbl_config_a flashed successfully
(bootloader) Partition xbl_config_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.030s
Sending 'boot_ab' (196608 KB)                      OKAY [  5.205s]
Writing 'boot_ab'                                  (bootloader) Partition boot_a flashed successfully
(bootloader) Partition boot_b flashed successfully
OKAY [  0.879s]
Finished. Total time: 6.121s
Sending 'modem_ab' (242268 KB)                     OKAY [  6.377s]
Writing 'modem_ab'                                 (bootloader) Partition modem_a flashed successfully
(bootloader) Partition modem_b flashed successfully
OKAY [  1.121s]
Finished. Total time: 7.522s
Sending 'vbmeta_system_ab' (4 KB)                  OKAY [  0.001s]
Writing 'vbmeta_system_ab'                         (bootloader) Partition vbmeta_system_a flashed successfully
(bootloader) Partition vbmeta_system_b flashed successfully
OKAY [  0.005s]
Finished. Total time: 0.021s
Sending 'tz_ab' (3640 KB)                          OKAY [  0.097s]
Writing 'tz_ab'                                    (bootloader) Partition tz_a flashed successfully
(bootloader) Partition tz_b flashed successfully
OKAY [  0.047s]
Finished. Total time: 0.187s
Sending 'vbmeta_ab' (4 KB)                         OKAY [  0.002s]
Writing 'vbmeta_ab'                                (bootloader) Partition vbmeta_a flashed successfully
(bootloader) Partition vbmeta_b flashed successfully
OKAY [  0.006s]
Finished. Total time: 0.021s
Sending 'bluetooth_ab' (1084 KB)                   OKAY [  0.029s]
Writing 'bluetooth_ab'                             (bootloader) Partition bluetooth_a flashed successfully
(bootloader) Partition bluetooth_b flashed successfully
OKAY [  0.010s]
Finished. Total time: 0.055s
Sending 'abl_ab' (204 KB)                          OKAY [  0.007s]
Writing 'abl_ab'                                   (bootloader) Partition abl_a flashed successfully
(bootloader) Partition abl_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.027s
Sending 'cpucp_ab' (100 KB)                        OKAY [  0.004s]
Writing 'cpucp_ab'                                 (bootloader) Partition cpucp_a flashed successfully
(bootloader) Partition cpucp_b flashed successfully
OKAY [  0.010s]
Finished. Total time: 0.027s
Sending 'dtbo_ab' (8192 KB)                        OKAY [  0.212s]
Writing 'dtbo_ab'                                  (bootloader) Partition dtbo_a flashed successfully
(bootloader) Partition dtbo_b flashed successfully
OKAY [  0.047s]
Finished. Total time: 0.275s
Sending 'featenabler_ab' (88 KB)                   OKAY [  0.004s]
Writing 'featenabler_ab'                           (bootloader) Partition featenabler_a flashed successfully
(bootloader) Partition featenabler_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.026s
Sending 'vendor_boot_ab' (3692 KB)                 OKAY [  0.096s]
Writing 'vendor_boot_ab'                           (bootloader) Partition vendor_boot_a flashed successfully
(bootloader) Partition vendor_boot_b flashed successfully
OKAY [  0.023s]
Finished. Total time: 0.134s
Sending 'keymaster_ab' (260 KB)                    OKAY [  0.008s]
Writing 'keymaster_ab'                             (bootloader) Partition keymaster_a flashed successfully
(bootloader) Partition keymaster_b flashed successfully
OKAY [  0.031s]
Finished. Total time: 0.080s
Sending 'uefisecapp_ab' (124 KB)                   OKAY [  0.004s]
Writing 'uefisecapp_ab'                            (bootloader) Partition uefisecapp_a flashed successfully
(bootloader) Partition uefisecapp_b flashed successfully
OKAY [  0.010s]
Finished. Total time: 0.029s
Sending 'qupfw_ab' (56 KB)                         OKAY [  0.002s]
Writing 'qupfw_ab'                                 (bootloader) Partition qupfw_a flashed successfully
(bootloader) Partition qupfw_b flashed successfully
OKAY [  0.005s]
Finished. Total time: 0.019s
Sending 'xbl_ab' (3584 KB)                         OKAY [  0.096s]
Writing 'xbl_ab'                                   (bootloader) Partition xbl_a flashed successfully
(bootloader) Partition xbl_b flashed successfully
OKAY [  0.014s]
Finished. Total time: 0.132s
Sending 'devcfg_ab' (52 KB)                        OKAY [  0.002s]
Writing 'devcfg_ab'                                (bootloader) Partition devcfg_a flashed successfully
(bootloader) Partition devcfg_b flashed successfully
OKAY [  0.007s]
Finished. Total time: 0.022s
Sending 'hyp_ab' (3600 KB)                         OKAY [  0.095s]
Writing 'hyp_ab'                                   (bootloader) Partition hyp_a flashed successfully
(bootloader) Partition hyp_b flashed successfully
OKAY [  0.030s]
Finished. Total time: 0.163s
Sending 'imagefv_ab' (28 KB)                       OKAY [  0.002s]
Writing 'imagefv_ab'                               (bootloader) Partition imagefv_a flashed successfully
(bootloader) Partition imagefv_b flashed successfully
OKAY [  0.004s]
Finished. Total time: 0.019s
Sending 'shrm_ab' (48 KB)                          OKAY [  0.003s]
Writing 'shrm_ab'                                  (bootloader) Partition shrm_a flashed successfully
(bootloader) Partition shrm_b flashed successfully
OKAY [  0.005s]
Finished. Total time: 0.019s
Sending 'aop_ab' (240 KB)                          OKAY [  0.008s]
Writing 'aop_ab'                                   (bootloader) Partition aop_a flashed successfully
(bootloader) Partition aop_b flashed successfully
OKAY [  0.008s]
Finished. Total time: 0.030s
Sending 'cust' (417604 KB)                         OKAY [ 10.262s]
Writing 'cust'                                     OKAY [  0.015s]
Finished. Total time: 10.752s
Sending sparse 'super' 1/7 (738892 KB)             OKAY [ 18.679s]
Writing 'super'                                    OKAY [  0.005s]
Sending sparse 'super' 2/7 (768540 KB)             OKAY [ 19.537s]
Writing 'super'                                    OKAY [  0.011s]
Sending sparse 'super' 3/7 (751520 KB)             OKAY [ 18.961s]
Writing 'super'                                    OKAY [  0.047s]
Sending sparse 'super' 4/7 (785908 KB)             OKAY [ 19.927s]
Writing 'super'                                    OKAY [  0.004s]
Sending sparse 'super' 5/7 (768768 KB)             OKAY [ 19.405s]
Writing 'super'                                    OKAY [  0.006s]
Sending sparse 'super' 6/7 (760128 KB)             OKAY [ 19.181s]
Writing 'super'                                    OKAY [  0.005s]
Sending sparse 'super' 7/7 (771592 KB)             OKAY [ 19.225s]
Writing 'super'                                    OKAY [  0.043s]
Finished. Total time: 148.967s
Setting current slot to 'a'                        OKAY [ 15.082s]
Finished. Total time: 15.251s
Erasing 'metadata'                                 OKAY [  2.091s]
Finished. Total time: 2.207s
Erasing 'userdata'                                 OKAY [  1.191s]

        F2FS-tools: mkfs.f2fs Ver: 1.13.0 (2019-09-24)

Info: Disable heap-based policy
Info: Debug level = 1
Info: Trim is disabled
Info: Set conf for android
Info: Segments per section = 1
Info: Sections per zone = 1
Info: sector size = 512
Info: total sectors = 470990808 (229975 MB)
Info: zone aligned segment0 blkaddr: 512
Info: add quota type = 0 => 4
Info: add quota type = 1 => 5
[f2fs_init_sit_area: 556]       Filling sit area at offset 0x00600000
C:\Users\av\Desktop\fastboost\platform-tools-windows/make_f2fs failed: 3221225477
fastboot: error: Cannot generate image for userdata
Rebooting                                          OKAY [  0.000s]
Finished. Total time: 0.003s

The phone rebooted into the original recovery mode --> wiped the data.

Installed twrp as follows: fastboot boot mi-11-twrp3.5.1-recovery-v21.5.10_decrypted.img
Pushed the latest ROM into device: adb push xiaomi.eu_multi_MI11_21.6.30_v12-11.zip /sdcard
xiaomi.eu_multi_MI11_21.6.30_v12-11.zip: 1 file pushed. 32.5 MB/s (4086123980 bytes in 120.080s)

Install -- selected xiaomi.eu_multi_MI11_21.6.30_v12-11.zip

Installation completed. Rebooted.

All works now. The System occupies 14.85 GB. (Despite of the weird error during fastboot: error: Cannot generate image for userdata. Hope it is not major)
If the error appears while you install the fastboot rom, no problem. When you install through twrp, no error appears, it is successful.
