New MIUI 11: config missing for VoWiFi on T-Mobile Austria


Bluebrain

Bluebrain

Members
Oct 30, 2019
8
15
After several hours of testing, I came to the conclusion that there must be some configuration data be missing for VoWiFi on T-Mobile Austria.

mi 9T Pro
MIUI 11.0.5 (xiaomi.eu)

VoLTE works(! even though no icon is displayed)
VoWiFi does not work with my T-Mobile AT SIM-card, but works with an O2 prepaid card from Germany and VoWiFi works with my T-Mobile AT card in other devices, e.g. Galaxy S8 or Galaxy S10.

yes, both is activated by my provider
yes, I used the "activation" code (*#*#869434#*#*)
yes, I also tried modifying the build.prop with additional parameters for VoLTE and VoWiFi
yes, I changed the modem configuration file and tried several different
yes, I have the switches in settings for activating VoWiFi
yes, I restarted several times and tried several other things

As said, with an O2 DE card VoWiFi works on the 9T Pro, and my T-Mobile VoWiFi also works in a Galaxy S8 and S10.
So only the combination 9T Pro + T-Mobile AT does not work for VoWiFi.

That's what I found in a Galaxy S10 ROM and might be missing in the MIUI ROM:
/system/etc/epdg_apns_conf.xml (full file attached)

XML:
<!-- Austria : T-mobile : MAX,TRG -->
<vowifi mnoname="TMobile_AT"
    wifi_call_enable="1"
    wifi_call_preferred="2"
    wifi_call_when_roaming="0"
/>

<!-- Austria : T-Mobile : MAX,TRG -->
<apn mnoname="TMobile_AT"
    connname="imsApn"
    apnname="ims"
    authtype="EAP"
    subnettype="IPV4V6"
    userauthtype="false"
    pfs="false"
    ownuritype="USER_FQDN"
    ownidentity="023430123456701@nai.epc.mnc003.mcc232.3gppnetwork.org"
    remoteuritype="KEY_ID"
    remoteidentity="ims"
    tunneltype="IPSEC_RAC"
    ipsecencryption="IPSEC_ENCRYPTION_BASIC"
    ipsecintegrity="IPSEC_INTEGRITY_HMAC_SHA1_96"
    ipsecgroup="IPSEC_GROUP_MODP_1024"
    ipseclifetime="IPSEC_LIFE_TYPE_SECONDS"
    ipseclifevalue="28800"
    ikeversion="IKE_VERSION_2"
    ikeintegrity="IKE_INTEGRITY_HMAC_SHA1_96"
    ikeencryption="IKE_ENCRYPTION_BASIC"
    ikegroup="IKE_GROUP_MODP_1024"
    ikeeaptype="EAP_METHOD_AKA"
    ikelife="86400"
    ikewindowsize="1"
    ikedpdtimeout="60"
    ikeconnectiontimeout="10"
    ikenatvalue="30"
    ikevirtualadaptername="tap0"
    vendorattribute="P-CSCF-V4V6"
    periodicdpdtimer="120"
    mobike="false"
    imei="NONE"
    fastreauth="false"
/>
<!-- Austria : T-Mobile : MAX,TRG -->
<apn mnoname="TMobile_AT"
    connname="mmsApn"
    apnname="mms"
    authtype="EAP"
    subnettype="IPV4V6"
    userauthtype="false"
    pfs="false"
    ownuritype="USER_FQDN"
    ownidentity="023430123456701@nai.epc.mnc003.mcc232.3gppnetwork.org"
    remoteuritype="KEY_ID"
    remoteidentity="HOS"
    tunneltype="IPSEC_RAC"
    ipsecencryption="IPSEC_ENCRYPTION_BASIC"
    ipsecintegrity="IPSEC_INTEGRITY_HMAC_SHA1_96"
    ipsecgroup="IPSEC_GROUP_MODP_1024"
    ipseclifetime="IPSEC_LIFE_TYPE_SECONDS"
    ipseclifevalue="28800"
    ikeversion="IKE_VERSION_2"
    ikeintegrity="IKE_INTEGRITY_HMAC_SHA1_96"
    ikeencryption="IKE_ENCRYPTION_BASIC"
    ikegroup="IKE_GROUP_MODP_1024"
    ikeeaptype="EAP_METHOD_AKA"
    ikelife="86400"
    ikewindowsize="1"
    ikedpdtimeout="60"
    ikeconnectiontimeout="10"
    ikenatvalue="30"
    ikevirtualadaptername="tap0"
    vendorattribute="P-CSCF-V4V6"
    periodicdpdtimer="120"
    mobike="false"
    imei="NONE"
    fastreauth="false"
/>
<!-- Austria : T-Mobile : MAX,TRG -->
<apn mnoname="TMobile_AT"
    connname="xcapApn"
    apnname="xcap"
    authtype="EAP"
    subnettype="IPV4V6"
    userauthtype="false"
    pfs="false"
    ownuritype="USER_FQDN"
    ownidentity="023430123456701@nai.epc.mnc003.mcc232.3gppnetwork.org"
    remoteuritype="KEY_ID"
    remoteidentity="HOS"
    tunneltype="IPSEC_RAC"
    ipsecencryption="IPSEC_ENCRYPTION_BASIC"
    ipsecintegrity="IPSEC_INTEGRITY_HMAC_SHA1_96"
    ipsecgroup="IPSEC_GROUP_MODP_1024"
    ipseclifetime="IPSEC_LIFE_TYPE_SECONDS"
    ipseclifevalue="28800"
    ikeversion="IKE_VERSION_2"
    ikeintegrity="IKE_INTEGRITY_HMAC_SHA1_96"
    ikeencryption="IKE_ENCRYPTION_BASIC"
    ikegroup="IKE_GROUP_MODP_1024"
    ikeeaptype="EAP_METHOD_AKA"
    ikelife="86400"
    ikewindowsize="1"
    ikedpdtimeout="60"
    ikeconnectiontimeout="10"
    ikenatvalue="30"
    ikevirtualadaptername="tap0"
    vendorattribute="P-CSCF-V4V6"
    periodicdpdtimer="120"
    mobike="false"
    imei="NONE"
    fastreauth="false"
/>

I have searched in every .xml file on the device and many other files but could not find any similar configuration file with ...3gppnetwork.org in it.
Does anyone know where this config for different providers is stored in MIUI ROM?


Attachments

  • epdg_apns_conf.xml.txt
    884.6 KB · Views: 611
Last edited:
I'm not an expert but I did some research after having similar problems to yours. I can say that both VoLTE and VoWifi are carrier and manufacturer depending services.
Both need to had an homologation agreement. Carrier's must provide the configuration parameters for the device to work in their network and manufacturers must include that configuration in their ROM.

Of course there's a standard configuration for the services to work that came with any ROM and carriers are more or less restrictive providing them that's why you had VoWifi working with one provider but not the other.

What I have seen is that VoLTE service seems to be less restrictive in terms of compatibility and registration but apparently VoWifi has more conditions or specific parameters for the service to work.

The problem is that not all the brands manage the modem and carrier configuration on their Android ROMs in the same way so it's not just import a config file or a parameter from a working phone.

I didn't find either were this parameters are stored in MIUI, maybe the developers could provide any info...

Enviado desde mi MI 9 mediante Tapatalk

I totally agree with what you said.
There's a good chance, a specific certificate or similiar is needed.
As you said, VoWiFi is not that easy as there must be a "trusted connection" to the mobile provider as the SIM card is no longer connected to the network, so it must be confirmed that only approved clients can connect and make phone calls "on behalf" a certain phone number.
But perhaps all this is stored on the SIM card, even though it's not connected via GSM, it's still inside the device and it can communicate with it.

Sadly, there is little to no info regarding VoWifi in the web. I'm also only guessing.

It's just sad that my provider is not working. And T-Mobile Austria (now "Magenta Austria") is 100% owned by "Telekom / Magenta Germany", the biggest mobile provider in Europe.

Sadly I'm in the same boat as you with my provider, at least I had VoLTE working.

As you say I think too that must be some type of authentication needed for VoWifi to work but I don't think it's sim related I guess it's just an missing or wrong parameter in the ims registration process but as you say there's little to none information about it out there plus I couldn't find the files that store the process parameters..

I play a little with the APN config but with no luck

Enviado desde mi MI 9 mediante Tapatalk

I just invested a few hours more and flashed the official Xiaomi EEA ROM in hope for better EU provider specific support by Xiaomi itself.
But no luck. :( Still doesn't work with T-Mobile Austria.

I'll pick up a Galaxy Note 10 tomorrow!

have you tried this?

forum.xda-developers.com

[GUIDE] Activate VoWiFi / WLAN Call

First of all a BIG thanks to ed-gonzo He made this possible :) This is the instruction to activate VoWiFi / WLAN Call on the Poco F1 Its tested and verfied to work with EU ROM (Oreo , Pie and Q based) and german provider o2 (Telefonica) Before...
forum.xda-developers.com forum.xda-developers.com

mi9 is working with this config

Gesendet von meinem MI 9 mit Tapatalk

  • Like
Reactions: nmercy
color said:
have you tried this?

forum.xda-developers.com

[GUIDE] Activate VoWiFi / WLAN Call

First of all a BIG thanks to ed-gonzo He made this possible :) This is the instruction to activate VoWiFi / WLAN Call on the Poco F1 Its tested and verfied to work with EU ROM (Oreo , Pie and Q based) and german provider o2 (Telefonica) Before...
forum.xda-developers.com forum.xda-developers.com

mi9 is working with this config

Gesendet von meinem MI 9 mit Tapatalk
Click to expand...
I'm looking at it, I see only works if you find the corresponding profile so I will try it later hoping it work

Thanks for the link!!

Enviado desde mi MI 9 mediante Tapatalk

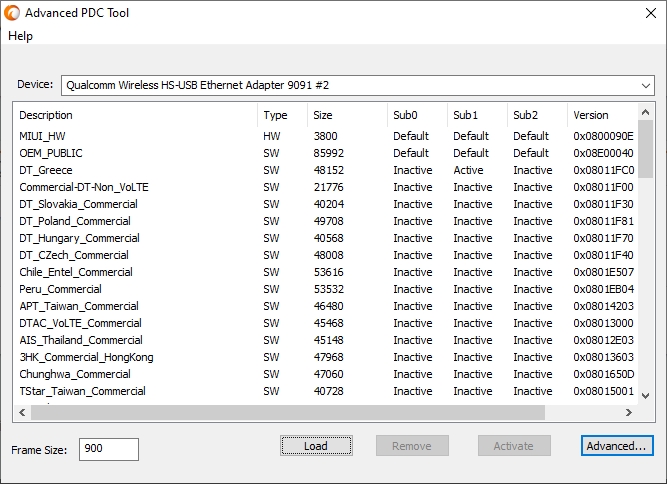

I tried that before, but failed because of the Modemprofile. I just couldn't find that "DT-Greece". Today downloaded the latest Qualcomm Drivers plus the latest QPST-Tool. So I managed to get DT-Greece active. Done all the magic with activationcodes and so on.

Sadly that changed nothing, VoWiFi still not working on my Lavender (with german O2/Telefonica SIM). VoLTE was working properly before, just by disabling Carrier-Check (*#*#86583#*#* ).

So no luck for me...

27996

I couldn't try it yet but I see that you didn't activate the sub0 option. Other problem could be that the DT_Grece profile doesn't suit for your carrier so need to try with another of the profiles

Enviado desde mi MI 9 mediante Tapatalk

Yes, DT_Greece should be correct as mentioned in the linked XDA-Thread. Meanwhile I activated the profile on Sub0 too. What has, as expected, no effect. - Sim is placed in second (SUB1).

My mistake then.

I assume you enable VoWifi with *#*#869434#*#*

Enviado desde mi MI 9 mediante Tapatalk

with dt_grece vowifi is working on my mi9 and a1 austria

Gesendet von meinem MI 9 mit Tapatalk

nmercy said:
My mistake then.

I assume you enable VoWifi with *#*#869434#*#*

Enviado desde mi MI 9 mediante Tapatalk
Click to expand...

That just disables VoWiFi Carrier-Check, respectively enables VoWiFi switch in settings. Switching that on, doesn't mean necessarily that VoWiFi is actually working.

HulleBulle said:
That just disables VoWiFi Carrier-Check, respectively enables VoWiFi switch in settings. Switching that on, doesn't mean necessarily that VoWiFi is actually working.
Click to expand...
I know I was just asking.

Well I tried but couldn't get the phone recognized by QPST tool

Enviado desde mi MI 9 mediante Tapatalk

As I wrote in the first post:
Bluebrain said:
yes, I changed the modem configuration file and tried several different
Click to expand...
I tried that too.

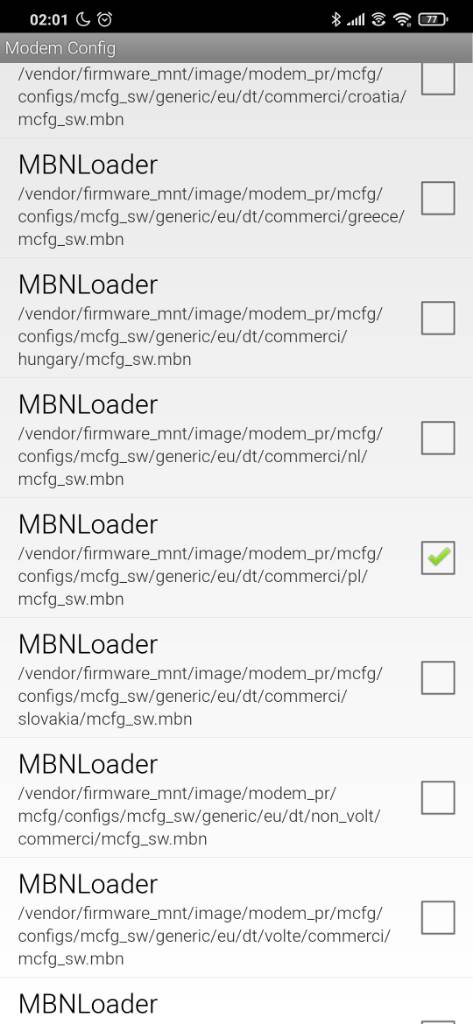

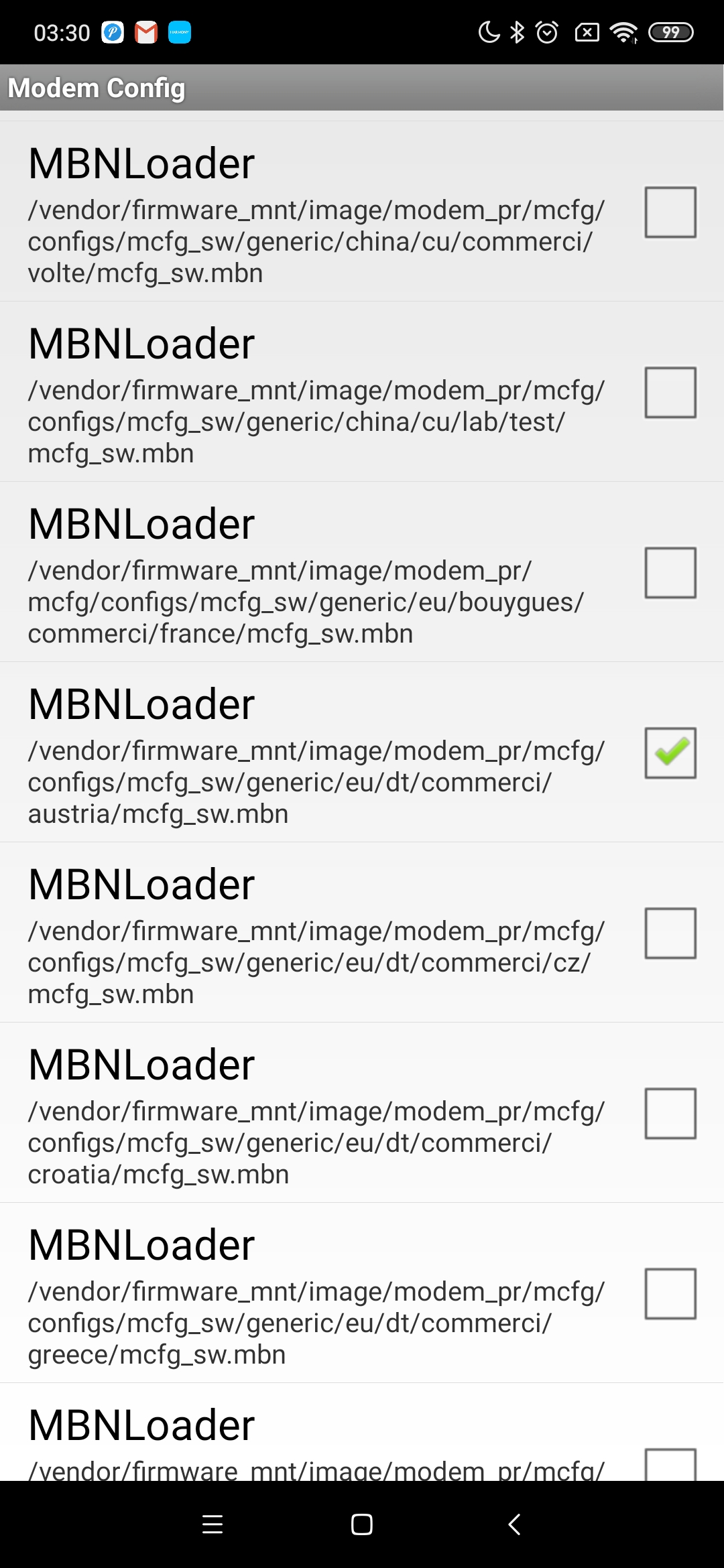

Btw. this can be done much easier directly on the device with the app "Activity Manager 3.0.0" (not on Google Play, search for the apk)
Install the app, search for "modem config", open it and select your desired modem configuration file.


Attachments

  • Screenshot_2020-01-11-03-30-04-216_com.xiaomi.mbnloader.jpg
    563.3 KB · Views: 1,665
Bluebrain said:
As I wrote in the first post:

Btw. this can be done much easier directly on the device with the app "Activity Manager 3.0.0".
Click to expand...

Thanks for that info, you have saved me a lot of work .
I have tried the activity manager method without success.

Enviado desde mi MI 9 mediante Tapatalk

Well I decided to try again with the activity manager and playing with it I ended selecting a modem config and the VoWifi just got enable an working...

I will try it further but for now it works


Enviado desde mi MI 9 mediante Tapatalk

No, just a working phone. ;)
In my office, reception is nearly zero. So without VoWiFi, I cannot make phone calls and my clients cannot call me!
So all the other features get irrelevant if I can't make PHONE CALLS with a PHONE!

  • Like
Reactions: HulleBulle and hjirik
Bluebrain said:
As I wrote ...

... can be done much easier directly on the device with the app "Activity Manager 3.0.0" (not on Google Play, search for the apk)
Install the app, search for "modem config", open it and select your desired modem configuration file.
Click to expand...

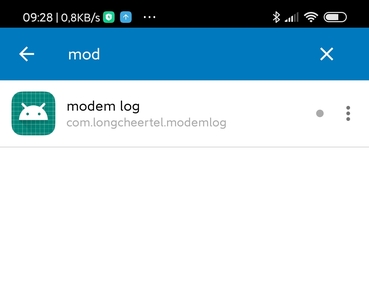

No luck with that. Within Activity Manager, I can't find/there is no "modem config". - Don't know why!

Igor Eisberg said:
...
Click to expand...

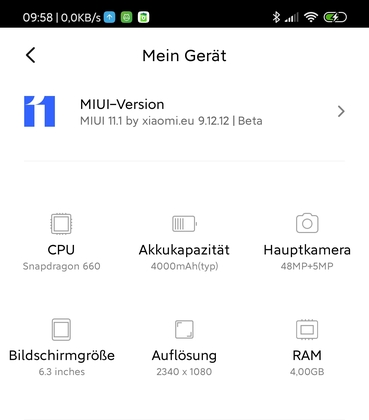

Igor, no VoWiFi with Lavender in general? My provider should support it.


28005

28006

Then you might have to go the way with the Qualcomm PDC tool.

Or, try the following:
Mein Gerät > Alle Spezifikationen > 5 x click on "Kernel"
CIT Tool opens.
Click on the 3 dots in the right top corner and select "weitere Tools".
Then "MODEM Testtools" and there (should be the last in the list) "MBN-Konfigurations-, Lade- und Aktivierungswerkzeug".

Bluebrain said:
Or, try the following:
Mein Gerät > Alle Spezifikationen > 5 x click on "Kernel"
CIT Tool opens.
Click on the 3 dots in the right top corner and select "weitere Tools".
Then "MODEM Testtools" and there (should be the last in the list) "MBN-Konfigurations-, Lade- und Aktivierungswerkzeug".
Click to expand...

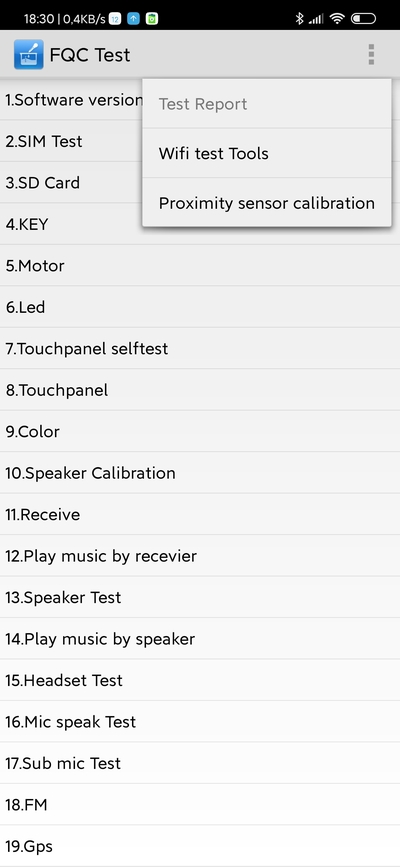

Nope, nothing there in my Lavender. - Never mind!
28051


Igor Eisberg said:
How should I know?
I don't even have VoWiFi supported in my country...
Click to expand...

Just asking...

@HulleBulle
For Redmi devices this methode isnt working, try this tutorial
forum.xda-developers.com

[GUIDE] Activate VoWiFi / WLAN Call

First of all a BIG thanks to ed-gonzo He made this possible :) This is the instruction to activate VoWiFi / WLAN Call on the Poco F1 Its tested and verfied to work with EU ROM (Oreo , Pie and Q based) and german provider o2 (Telefonica) Before...
forum.xda-developers.com forum.xda-developers.com

For o2 germany the correct Profile is "Commercial-MTS" btw.

  • Love
Reactions: Poney70 and HulleBulle
