AX 3600 mesh not detected


snotto said:
I have a couple of AX3600 on global 3.0.22 version. I might have tried everything to mesh them togheter:
- both have the AIoT Antenna on
- tried with both Wi-Fi 5 compat mode turned on and off
- tried with the script (thank you @ShotokanZH, very insightfull), with the mac address sugested, one up or down compared to the 2.4 MAC, also took the MAC adress directly from the 5Ghz network (was one up compared to the 2.4Ghz)
- tried with the secondary router vanilla factory reset or with the minimal general configuration.
It's just sad, not a problem that things don't work, have a release notes for limitations, known issues...

Anything else that i might need to try?
Click to expand...
The secondary router needs to be ~3m far for the first configuration, even if you are gonna use it in wired mesh configuration.
(You can move it LATER)
Also the secondary one needs to be in factory reset, with the welcome page still asking for the country :)
Is that the situation?

ShotokanZH said:
The secondary router needs to be ~3m far for the first configuration, even if you are gonna use it in wired mesh configuration.
(You can move it LATER)
Also the secondary one needs to be in factory reset, with the welcome page still asking for the country :)
Is that the situation?
Click to expand...
Yes and yes... :)

yes, can't see any change in the configuration, the secondary router still redirects to "welcome" page. Maybe the selected country on primary, Romania, might be even harder to configure. The script output was this one:
python3 addmesh.py

Code:
MiWiFi Mesh Node Adder v1.0 by ShotokanZH
Master (online, configured) router address: 192.168.101.1
Master password:
Logging in..
Login: OK
Platform: R3600
AIoT scan status: ON
Asking master to scan for Xiaomi Wifi APs...
Detected APs:
    Band: 2ghz SSID: Xiaomi_838A_7C75 CH: 11 MODEL: R3600 MAC: 28:D1:27:4D:4A:6E
        POSSIBLE MAC for 5GHz: 28:D1:27:4D:4A:6F
Client (not configured) 5GHz mac address (AA:BB:CC:DD:EE:FF): 28:D1:27:4D:4A:6F
Adding 28:D1:27:4D:4A:6F as mesh node..
Node configured correctly! Wait for it to reboot.

Update: managed set it up.
- With Romania selected on main router, and then probably other countries, mesh did not work, even with the script.
- With Singapore selected, did not managed to even connect to the main router
- It did work by selecting Germany on main router:
-> set it up as a router without any extra special settings (did select the 3 options at initial setup: update, enable mimo, and another one, can't remember what was the third), added the router in MiWifi
-> the second router (ax3600) immediately after factory reset, in close vecinity
-> ran the script: https://github.com/ShotokanZH/MiWiFi_Mesh_Node_Adder (thank you again ShotokanZH)
-> the first difference that i did observe was an actual reboot, previously it never did a reboot -> after a couple of minutes i could see the node added in the mesh, after that moved it away

Last edited:
ShotokanZH said:
Hi evryone!
Thank you @oualibadr for your insights, they were extremely helpful.
I made this tool to configure a mesh node without the need to switch to singapore servers:
github.com

GitHub - ShotokanZH/MiWiFi_Mesh_Node_Adder: Bypasses the need to set the Xiaomi device to Singapore region by adding a node via API

Bypasses the need to set the Xiaomi device to Singapore region by adding a node via API - ShotokanZH/MiWiFi_Mesh_Node_Adder
github.com github.com
I am currently using italian servers and everything's running just fine! :)
Click to expand...
Hello,
Impossible to enter the master password. the keyboard is blocked. Any thoughts? many thanks

seb91chti said:
Pour info, mi wifi vient de s'activer pur les installations singapour. J'ai accès depuis 2mn à mon routeur. Néanmoins je veux l'installer en version française. Je continue.
Je viens de desinstaller python en 64 bits et j'essaie avec la version 32
Click to expand...
Bonjour,
Après avoir entré la "router adress" on me demande le "master password" mais là mon clavier est bloqué et je ne peux rien taper. Sauriez-vous pourquoi ? merci

Antoine de Paris said:
Hello,
Impossible to enter the master password. the keyboard is blocked. Any thoughts? many thanks
Click to expand...
Thank you very much for your answer. I finally succeeded the password step... ;-)

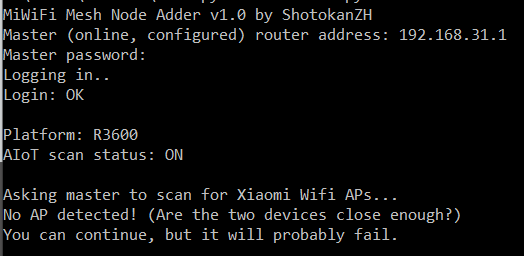

I have however a problem : My master router (AX3600 global firmware) is unable to detect the second router (ax1800 chinese version) => "No AP detected" and nothing happens after entering my MAC address
Any thoughts? Many thanks again for your help.

Capture script2.PNG

ShotokanZH said:
...it's a password field, it does not show anything, it's for added security...
Click to expand...

Thank you very much for your answer. I finally succeeded the password step... ;-)
I have however a problem : My master router (AX3600 global firmware) is unable to detect the second router (ax1800 chinese version) => "No AP detected" and nothing happens after entering my MAC address
Any thoughts? Many thanks again for your help.



Capture script2.PNG

Antoine de Paris said:
Thank you very much for your answer. I finally succeeded the password step... ;-)
I have however a problem : My master router (AX3600 global firmware) is unable to detect the second router (ax1800 chinese version) => "No AP detected" and nothing happens after entering my MAC address
Any thoughts? Many thanks again for your help.

View attachment 35124
Click to expand...

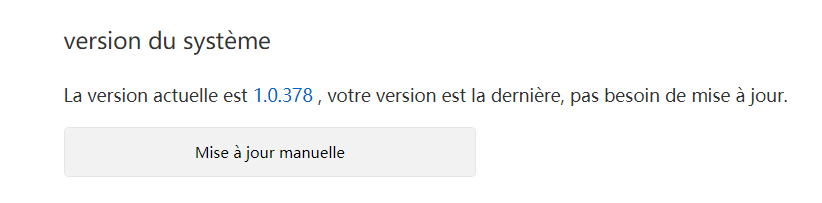

The AX1800 you are currently using, is it updated to the latest firmware? Is it out there any global firmware for that router?

paulus22 said:
I have an AX3600 with global firmware and a Chinese AX1800 which the routine very successfully meshed. Make sure you have done a factory reset on the AX1800 and locate it close to the main router.
Click to expand...
Thank you very much. I did a factory reset through the interface and not pushing the button on the AX1800 and it works very well. Thanks again all for your help. Much appreciated!

Hello @ShotokanZH, I've tried your script for setting up a Mesh Network of 2 AX3600 routers and it worked great so thank you very much for the easy workaround! :D

However, I've tried adding (several times) a third router as another Mesh Node (AX3600) for the master router (AX3600) and even though everything went great (logged in successfully, it detected the 5Ghz mac address of the router and it even prompted me that everything went good and that it's waiting for router to be rebooted.... The last part of rebooting has never happened and it stays like that endlessly :(

P.S. I've tried also manual reboot, but it didn't work :(

Do you have any fix / ideas of how I could set up a third Mesh node?

Thank you very much in advance!

Not my script or expertise really, but as a suggestion can you power off the first mesh, then mesh the second one, then power up the whole system??

Just a thought.

I have created a mesh network with two AX3600 routers and it turns out that my Mi 9T Pro does not do well for me to change the router. Being connected to a router and with a good connection, when I get closer to the other, it changes the router, with full Wi-Fi coverage, but nevertheless I don't have Wi-Fi connection. If I activate and deactivate the mobile's Wi-Fi switch, it connects at maximum speed. It does it for me on the 5G wifi network, on the 2.4G it works perfect. I have tried all kinds of roms, Miui, Miui EU, Pixel Experience, Lineage, Evolution X ... and it all fails.
My tablet Huawei M6, it works perfect, it does well to change the router of the mesh network.
Anyone know what can it be?

Bonjour,
Le Mi 9T Pro a un problème avec l'AX3600. Pour que cela fonctionne, il faut :
  1. Supprimer la connection Wifi de l'AX3600,
  2. Activer le WPA 3 dans le routeur,
  3. Remettre la connection wifi du Mi9T Pro en choisissant WPA 3
  4. Plus aucun problème.
Le test a été fait sur la ROM 12:0.4 EU

[QUOTE = "seb91chti, publicación: 594898, miembro: 286132"]
Bonjour,
Le Mi 9T Pro un problema con l'AX3600. Pour que cela fonctionne, il faut:
  1. Supprimer la conexión Wifi de l'AX3600,
  2. Activer le WPA 3 dans le routeur,
  3. Remettre la conexión wifi du Mi9T Pro en choisissant WPA 3
  4. Plus aucun problème.
Le test a été fait sur la ROM 12: 0.4 EU
[/CITA]
Muchas gracias. ça a marché pour moi.
Ce que je ne sais pas une fois que je suis passé à WP3 et que je travaille, si je peux revenir à WP2. Je dis cela parce que certains appareils que j'ai ne fonctionnent pas WP3. Je vais voir que tout fonctionne.
Merci

Pour ton AX3600, rien ne t'empeche de mettre compatibilité WPA2 / WPA3. J'ai 65 éléments connecté et aucun problème d'incompatibilité.

Hi Guys
I managed to configure Mesh with my two AX3600 but the performance is really bad.
Anyone has the same problem?
Range is bad by itself with the Global version.

Thanks

Thanks a lot for the script!

Works fine with my 2 AX 3600 configured in France region.

I've just noticed that since adding a mesh using the routine my option to make a backup (using browser in settings/status) has been removed. Anyone else noticed this, and worked out how to backup?
