Idiot At Work

Discussion in 'Xiaomi Mi Note / Mi Note Pro' started by SigNL, May 29, 2016.

  1. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male
    Hi All,

    Yesterday I was a brave and later I noticed I was extremely stupid.

    The last custom firmware I have put on an android device was my galaxy s2 years ago. I thought I could do it again NOT!!!

    I wanted to root my phone and went to the help of kingroot.net and after that wanted to put on supersu

    Now the "fun"stuff happened.

    My Mi Note Pro got stuck on the MI sign. Doesn't boot up at all. When put the phone off , it's not really off but lights up just a bit every 10 seconds.

    I know I know I had to look on this forum before trying it myself using wrong info, but that isn't going to help me now.

    I used the tutorial for unbricking my phone.

    in command promt wrtite:
    cmd

    cd C:\fastboot





    fastboot devices
    30ef3f48 fastboot




    fastboot oem edl
    This is where I get the Fail part


    There is no real connection i guess

    Can somebody please help me to get everything the way it was or even better.

  2. nazamb

    nazambMembers

    Mar 17, 2016
    5
    3
    15
    Male
    Have you tried entering recovery?


    Sent from my MI NOTE LTE using Tapatalk

  3. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male
    Thanks for replying.

    Yes i have tryed using recovery and it shows the mi sign for a couple of seconds an turns of again.

    Strange thing is, that the screen flashes once in a while.

    Sometimes it goes in fastboot if I use the volume up or down (in combination with the power button)it doesn't matter.

  4. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male
    Can someone please help me out?

  5. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    try this

    Download the fastboot ROM https://www.dropbox.com/s/dg198q49dc...cn.tar.gz?dl=0 (recomend this others from this year locked bootloader)
    Extract it to the same directory you extracted ADB/Fastboot
    Press "Windows key + X" -> "Command Prompt (administrator)
    In command prompt, go to your folder where your ADB/Fastboot are, assuming they are in C:\Fastboot, you type

    > cd C:\Fastboot
    > C:

    10. Once in the "C:\Fastboot" folder, you will need to issue a chain of commands to flash critical images, so type:

    C:\Fastboot>fastboot devices
    C:\Fastboot>fastboot flash tz tz.mbn
    C:\Fastboot>fastboot flash dbi sdi.mbn
    C:\Fastboot>fastboot flash sbl1 sbl1.mbn
    C:\Fastboot>fastboot flash rpm rpm.mbn
    C:\Fastboot>fastboot flash aboot emmc_appsboot.mbn
    C:\Fastboot>fastboot erase boot
    C:\Fastboot>fastboot flash misc misc.img
    C:\Fastboot>fastboot flash modem NON-HLOS.bin
    C:\Fastboot>fastboot flash system system.img
    C:\Fastboot>fastboot flash cache cache.img
    C:\Fastboot>fastboot flash userdata userdata.img
    C:\Fastboot>fastboot flash recovery recovery.img
    C:\Fastboot>fastboot flash boot boot.img
    C:\Fastboot>fastboot reboot

    Now you're all set and should be able to boot normally.

    after you can install recovery
    to install recoverytwrp https://www.dropbox.com/s/hkuwc6d881...P_leo.zip?dl=0

    Extract it to the same directory you extracted ADB/Fastboot
    Press "Windows key + X" -> "Command Prompt (administrator)
    In command prompt, go to your folder where your ADB/Fastboot are, assuming they are in C:\Fastboot, you type

    > cd C:\Fastboot
    > C:

    Once in the "C:\Fastboot" folder, you will need to issue a chain of commands to flash critical images, so type:

    C:\Fastboot>fastboot devices
    C:\Fastboot>fastboot flash recovery TWRP.img
    C:\Fastboot>fastboot reboot

    done now you can install latest rom from xiaomi.eu Does not locked bootloader

  6. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male
    Hi Helder Moura,

    I did exactly as stated above. It already goes wrong with the chain of commands.

    I get the error message "access denied" sorry i had to translate it because my windows is in dutch.

    I was administrator in CMD, and my phone was in fastboot.

    What is going wrong?

  7. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
  8. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male
    I did what was needed in Q17 but the same problem occures.

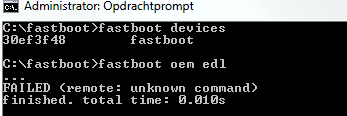

    It fails this part, am I missing something?

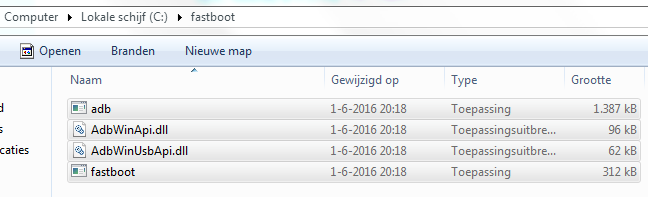

    I did it like this:
    The phone is in fastboot (power and volume-)



  9. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    Have you installed Qualcomm qloader drivers?

  10. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male

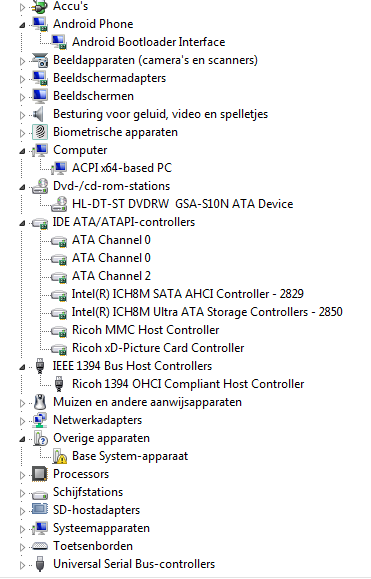

    Yes the 32bit version but it doesn't show in:

    I restarted and tryed again.


  11. SigNL

    SigNLMembers

    May 29, 2016
    7
    0
    11
    Male
    Im really lost here. can someone please help me?

  12. Cbs

    CbsMembers

    Aug 2, 2014
    4
    0
    11
    Female
    Doesn't seem like things has gone wrong that far. Still sound like broken root flashing, the other partitions should still be intact as it was.

    Flashing through QDLoader is more like a last-resort.

    By the way. I found out accessing recovery through Vol+/Power for MI Note Pro is extremely tricky. I found I need different trick to access 3 identical Mi Note Pro. How about trying this
    - Vol+ / Home repeatly
    or Vol+ / Home for 3-5 sec, release and repeat.

    Make sure you don't hold that for too long otherwise hard-reset kicks in and device will just force-restart.

    .....

    Otherwise accessing an image of TWRP.img through fastboot command should still be working.
    1) get yourself some TWRP.img for Mi Note Pro, put it in the your adb/fastboot folder
    2) fastboot boot twrp.img
