Mi Note Pro: Complete Beginners Guide

Discussion in 'Xiaomi Mi Note / Mi Note Pro' started by Mixxalych, Mar 30, 2016.

Tags:
  1. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    #1Mixxalych,Mar 30, 2016
    Last edited: Aug 11, 2016
    This guide has been written as a result of my personal experience with Mi Note Pro and encompasses guides kindly provided by other forum members: AdamFromHeaven, zaborek, crisgen_2, Helder Moura, the_Jack

    So, you are non-China resident and bought Xiaomi Mi Note Pro? Congratulations! The fact that you’re reading this guide suggests that you started to suspect that this phone software and internals are looking and behaving somewhat differently to what you would have expected should you bought a phone in your area. What’s even more likely, you’re actively looking for ways to make it ‘look-and-feel—and-work’ the way you’re used to.


    What you need to know:


    Q1: Is Mi Note Pro phone customized for my country?
    A1:
    If you are not in China – then it is not. Mi Note Pro devices are not being officially sold outside of China. That also suggests there is generally no warranty on your phone and your phone software (ROM) is not an official one but merely a Chinese surrogate to just make your phone work outside of China (People’s Republic Of).


    Q2: What are differences between my Mi Note Pro and a similar Android phone I could buy in my country?
    A2:
    Despite you chose “English” as your interface language, you might have already spotted a few major differences. Those are Chinese store and some applications, incomplete translation of the interface, malfunctioning Network Location service and some others. Like if you bought Toyota Wish from Japan instead of its adopted variant of Toyota Avensis Verso – almost the same at first glance, but far from that in details. While generally similar, you can expect your phone to have a strong “Chinese flavor” with some of the applications, interface and services behaving not quite as you would expect them to, or not working at all.


    Q3: What options do I have?
    A3:
    Generally speaking, you have two options:

    a. Leave it as it is if it satisfies your needs.
    b. Install a customized (although unofficial) ROM

    You need to understand that installing any custom ROMs or not is entirely your choice, freedom and responsibility. If you like it the way it is, can live with glitches it has or not comfortable with installing it yourself – leave it as it. Otherwise – consider updating to EU build from this site.


    Q4: What is ROM and other fishy abbreviations like TWRP, ADB, FASTBOOT?
    A4:


    ROM: Broadly speaking, its and acronym for read-only memory, computer memory on which data has been prerecorded. In your case it means the pre-assembled image of your phone’s operating system bundled up with some applications which you can install (flash) onto your device to replace existing one.

    ADB is a program that allows you to communicate with your phone via the command line from your PC. It has a lot of useful functions like copying files between devices, making a backup and even getting to the command line (shell) of your phone.

    TWRP is a file containing a bootable image. Think of it as of a Rescue CD for your PC if you like. But this time round it is your PC that plays a role of a CD-ROM drive and TWRP file is like a CD with a bootable image, containing a set of useful utilities to tweak your phone.

    FASTBOOT is also an utility that allows one to communicate with Mi Note Pro once it is loaded in "Recovery Mode" (similar to those operating systems of PCs have). Fastboot is used to boot your phone using the external bootbale image file (e.g. TWRP)

    Recovery Mode: It is definitely safer to stop the engine of your car before trying to fix it. Same here - phones have "recovery mode" - a special operating mode where the system is halted and you can perform operations impossible otherwise (tweak partitions and system data, perform low-lever backup and restore, etc.). In your Mi Note Pro this mode is conveniently called "Fastboot", same as the utility used to communicate with your phone while in that mode.

    Q5: You said it is EU – what does this mean?
    A5:
    It means that a group of EU enthusiasts have translated and rebuilt original Chinese software of your Mi Note Pro into EU languages and western set of apps and services you’re used to. Like Chinese reverse engineering, but, surprisingly, other way round this time.


    Q6: You said it is unofficial - would I lose my warranty?
    A6:
    Like noted above, the fact of your Mi Note Pro phone being with you outside of China suggests there is no warranty and that it already runs unofficial customized surrogate ROM installed by the Chinese seller. This means that technically you have nothing to lose from this point of view.


    Q7: What benefits will I get by installing the custom ROM from this website?
    A7:
    I personally found the following benefits:

    - Having the interface on a variety of most common European languages. Even that I prefer using English, it still looks like a decent English as compared to the CN version.
    - Services (like Network Location) work correctly being bound to western providers that actually work virtually anywhere on this planet, unlike Chinese ones in the default ROM your phone came with.
    - I am able to install applications from official Google Play, not the CN analog of such.
    - I do not encounter occasional apps and services named in Chinese that are impossible to understand or uninstall


    Q8: What are reservations for installing a custom ROM?
    A8:
    Subjectively, those are:

    - Some effort and reading required to install a custom ROM.
    - You messing up with the backup (or forgetting to do one if required) and losing your data.
    - Minor chance of something going bad and you bricking (failing to start) your phone.
    - You need to be confident you have more trust to this EU team than you would have for Chinese seller when it comes to security and contents of your phone software.

    Q9: Is it difficult to install the ROM?
    A9:
    If you never did anything like that before, it might be indeed somewhat confusing but still not the rocket science. Thankfully, there are detailed step-by-step guides out there to help you. Should you strictly follow them, there is a very little chance of a failure. The good news is – there is a good community at this site that is willing to help.


    Q10: What are my risks?
    A10:
    Since we already addressed the question of “warranty”, you are generally facing two types of risks:

    Risk 1: Losing your data during the install.

    Mitigation 1: It is a good idea to install the EU ROM before you migrate your data from your old phone. If it is not possible – definitely use 3rd party applications to back up your contacts, texts, call history, pictures, WhatsApp, you name it. I will suggest some applications for doing so at a later stage.


    Risk 2: Bricking your phone. If something goes horribly wrong, you may turn your phone into a “brick” – unbootable piece of metal.

    Mitigation 2: I haven’t heard of any cases where it was not possible to bring a bricked Mi Note Pro back to life, however, that does not mean it is totally impossible. Therefore:

    - Make sure you understand what you are doing before doing it.
    - If you’re using a guide from this site – please use it to the letter.
    - Backup. Backup. Backup.
    - Register on this forum so you can ask for help immediately after the incident.
    - Don’t panic. It’s not an iPhone or Galaxy S7, it’s just 350 EUR or less that need reanimation.
    - Ask for help if confused.


    Q11: What if something goes wrong?
    A11:
    If something goes wrong and you’re not sure what to do, keep calm and ask for help here. Remember, it is nearly always possible to get back to your Xiaomi ROM your phone came with.


    Q12: Where do I find ROMs?
    A12:
    For Mi Note Pro you would need “Leo” ROM (based on Android 5.1 Lollipop) from this list:

    * STABLE
    * DEVELOPER

    Q13: What is the difference between and “Stable” and “Weekly” (aka “Developer”)
    A13:
    They are based on different Android builds supplied by Xiaomi. Weekly is based on Chinese-English developer ROM. Stable is based on Chinese-English stable ROM by Xiaomi.

    Also, they are different in updates frequency: Weekly gets updates (Over-The-Air or manually) every week. Stable gets updates every 3-4 months.


    Q14: Which ROM do I need?
    A14:
    Depends what you are after. If you’d prefer to have your phone software updated weekly and would like to invest some effort for doing so, you’re better off with “Weekly” (“Developer”).

    If you’d like to do this once and forget about touching it for good few months (or even forever), go for a “Stable” one.


    Q15: How exactly do I flash the ROM?
    A15:
    You do it this way:

    1. First of all download all the things you need.

    A. ADB/Fastboot driver
    B. MiFlash Tool

    and install these to your PC!
    I'd recommend installing those to simple paths, like C:\ADB and C:\MiFlash respectively.


    C. TWRP

    Unpack this zip and you will find an IMG file and Copy it to Minimal ADB and Fastboot folder

    D. ROM itself, either STABLE or DEVELOPER

    Put the .zip to the same folder you have adb and fastboot in.

    2. Power off your device and turn it back on Fastboot mode. In order to enter the "fastboot mode", press and hold "Power+Volume Down" buttons. Release both once graphical logo appears.

    3. Woohoo great now what you will have to do is plug your phone to your PC using a usb cable. Wait until drivers installed correctly.

    4. Start Windows command prompt by pressing <Windows key> + X and then choosing "Command Prompt (Admin)". Once console (black box) opens, go to Minimal ADB and Fastboot folder on your PC by typing

    > cd C:\ADB
    > C:


    (change C: and ADB to your respective drive and path you chose in step 1 of this Q15)

    5. Now type in the black box fastboot devices just to make sure that your device is listed correctly.

    6. Now type in the black box fastboot boot twrp.img

    7. Now your phone should boot into TWRP!

    8. Sideload the ROM to your device:
    - In TWRP go "Advanced" -> "ADB Sideload"
    - In your PC console run this command:

    adb sideload xiaomi.eu_multi_leo_6.3.24_v7-5.1.zip (replace the file name as appropriate. If the ROM .zip file is not in the same folder asadb.exe, specify the path to the file.)

    9. Now you can make FACTORY RESET (slider at the bottom) on WIPE menu. Do NOT wipe anything manually by ticking boxes.

    10. Reboot and (if you are a lucky guy) your phone will reboot on your new system. And your stock MiRecovery remains...



    Q16: What if I still managed to brick my phone?
    A16:
    Good job! You will need to unbrick it. The most common way is getting the MiFlash Tool to flash the earlier version of the recovery image (ROM) to your phone. That will restore internal structure of your phone and let it boot again (although to some weird Chinese-English version of Android, but that doesn’t matter). Once done, you are all set to reflash your Mi Note Pro with a ROM of your choice.


    1. Download ADB/Fastboot - minimum package to communicate with your Android (if you don’t have it already):
    2. Download TWRP
    3. Download Flash Recovery Image
    4. Download Xiaomi MiFlash Tool
    5. Use this guide to flash the recovery image to your Mi Note Pro.

    But what if I get the flash process interrupted (error / battery dying / aliens invasion, etc) while flashing and my phone refuses to flash normally?

    Sometimes the MiFlash gives you error in the midle of the process. If so, the only way to flash (at least for @Helder Moura) with no errors was:

    6. Download the fastboot ROM
    7. Extract it to the same directory you extracted ADB/Fastboot as per Step 1.
    8. Press "Windows key + X" -> "Command Prompt (administrator)
    9. In command prompt, go to your folder where your ADB/Fastboot are, assuming they are in C:\Fastboot, you type

    > cd C:\Fastboot
    > C:

    10. Once in the "C:\Fastboot" folder, you will need to issue a chain of commands to flash critical images, so type:

    C:\Fastboot>fastboot devices
    C:\Fastboot>fastboot flash tz tz.mbn
    C:\Fastboot>fastboot flash dbi sdi.mbn
    C:\Fastboot>fastboot flash sbl1 sbl1.mbn
    C:\Fastboot>fastboot flash rpm rpm.mbn
    C:\Fastboot>fastboot flash aboot emmc_appsboot.mbn
    C:\Fastboot>fastboot erase boot
    C:\Fastboot>fastboot flash misc misc.img
    C:\Fastboot>fastboot flash modem NON-HLOS.bin
    C:\Fastboot>fastboot flash system system.img
    C:\Fastboot>fastboot flash cache cache.img
    C:\Fastboot>fastboot flash userdata userdata.img
    C:\Fastboot>fastboot flash recovery recovery.img
    C:\Fastboot>fastboot flash boot boot.img
    C:\Fastboot>fastboot reboot

    Now you're all set and should be able to boot normally.

    Q17: How do I unlock the Bootloader?
    A17:
    In some cases, while unbricking your phone by flashing the Xiaomi CN ROM via MiFlash Tool or installing the new official Mi Note Pro upgrade from Xiaomi via MiPCSuite, your phone starts refusing to boot into TWRP via “Fastboot” mode. This is very inconvenient, but there is a way to solve this through installing special drivers (Qualcomm) and flashing another recovery image that does not lock the bootloader.

    This is where it might get somewhat difficult, but still doable if you follow this guide by the book:

    1. Download TWRP
    2. Download Flash Recovery Image
    3. Download Xiaomi MiFlash Tool and install it to your PC
    4. Download Qualcomm Driver 32-bit OR Qualcomm Driver 64-bit
    5. Download This Guide on how to install unsigned drivers in Windows 8 and Windows 10
    6. Follow This Guide on flashing the recovery image but using files you downloaded (and their respective installation paths).


    If you happen to have difficulties installing Qualcomm drivers in Windows because they are unsigned, please see this thread or guide you downloaded in Step 5.

    Q18: After installing your ROM on my Mi Note Pro I still have weird Chinese apps. How come?
    A18:
    It looks like you did not wipe your device as suggestedin in Q15 Step 9 of this guide. To get rid of Chinese apps you need to boot into TWRP and do a proper Factory Reset [Wipe -> Factory Reset (wipes Data, Cache and Dalvik) ] and install the ROM again. Please carefully follow the algorithm suggested by Q15.

    Q19: Is there an easy way to keep my phone updated?
    A19:
    Well, strictly speaking, you can do "Over-The-Air" (OTA) updates if you really need to. The acronym OTA suggests that you will be downloading the update package over the wireless connection, either Wi-Fi or cellular network (mobile data) if you can afford it. The package would be quite hefty (400-800Mb) and is in its essence something similar to reflashing the whole device to a newer ROM image, but without wiping user data.

    Due to the specifics of how this community handles udates, OTA would generally be available monthly and in the form and sizxe of the full ROM. The answer from @crisgen_2 in this thread provides more details.

    In author's views, it is a good idea to update only when you know the exact benefit the update brings, like an fix for a bug that annoys you or new functionality you really need.

    Q20: I still have questions not covered by this wonderful guide, what do I do?
    A20:
    Try asking in replies to this thread or other threads depending on the nature of your question. We will do our best to answer those and update the post if required.

  2. alanis

    alanisMembers

    Mar 23, 2016
    8
    2
    13
  3. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    My pleasure :)

  4. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    Added Q18.

  5. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    hi

    in Q16
    sometimes the miflash gives you error in the midle of flash.
    If so the only way to flash (at least for me) with no errors is:

    Download the fastboot rom, extract it, put it under minimal ADB and fastboot and follow the following steps:
    go to cmd and in cmd go to your file where your fastboot is - to be easy i will put in the file in c:\ fastboot

    then type
    fastboot devices
    fastboot flash tz tz.mbn
    fastboot flash dbi sdi.mbn
    fastboot flash sbl1 sbl1.mbn
    fastboot flash rpm rpm.mbn
    fastboot flash aboot emmc_appsboot.mbn
    fastboot erase boot
    fastboot flash misc misc.img
    fastboot flash modem NON-HLOS.bin
    fastboot flash system system.img
    fastboot flash cache cache.img
    fastboot flash userdata userdata.img
    fastboot flash recovery recovery.img
    fastboot flash boot boot.img
    fastboot reboot

    done

    Mixxalych and AdamFromHeaven like this.
  6. AdamFromHeaven

    Mar 16, 2014
    103
    40
    40
    Male
    Very professional. I am afraid it is too much for average users...

  7. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    once i have a brick (my fault) and that was the only way to flash fastboot rom, none of the others worked for me - is just type and enter wait to flash, type enter an wait to flash....

    AdamFromHeaven likes this.
  8. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    Thanks a lot @Helder Moura , this can indeed happen and it is good to know how to fix this. Added into the body of Q16 if you don't mind :)

    @AdamFromHeaven - well, in fact, it is not too much harder than flashing a ROM, just keep issuing shell commands as suggeted by Helder Moura. Furthermore, an "average user" will either have to do this (and become an "advanced user") or get used to live with a bricked phone :)

  9. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
  10. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    Cheers, fixed :)

  11. Altie

    AltieMembers

    Apr 9, 2016
    4
    0
    13
    Male
    Thank you very much, I've just done a very quick sideload, boot. It's running in MIUI 7 now, thanks to your very clear instructions!

  12. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    That's the way we do here and you are most welcome. Thanks for letting us know! :))

    Sent from my MI NOTE Pro using Tapatalk

  13. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Thank you for this full info

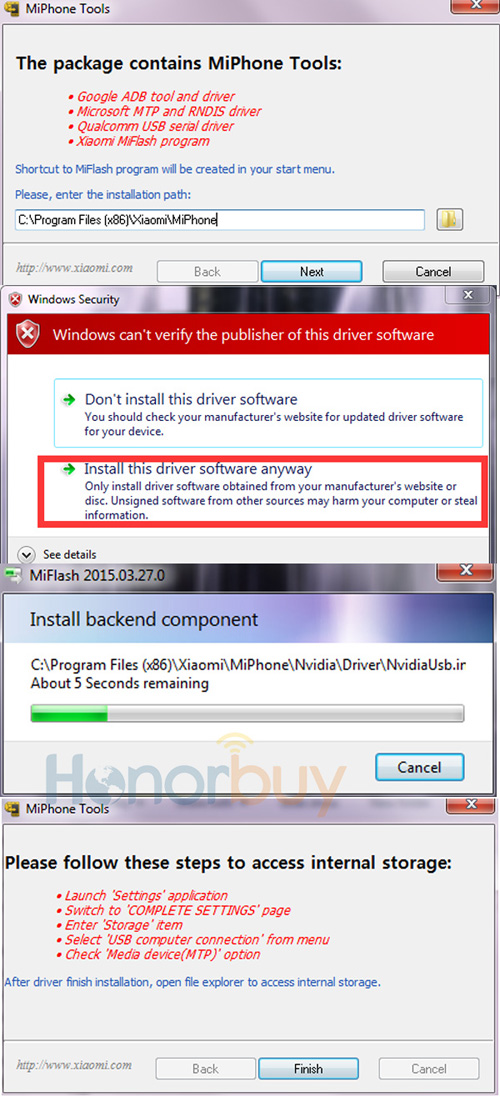

    when I try to install MiFlash to the PC its chow me like this





  14. Mixxalych

    MixxalychMembers

    Mar 28, 2016
    104
    21
    28
    Male
    It's OK, I suppose. You should still be able to run MiFlash, should you not?

  15. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Hello friend
    I try to unlock my Mi note pro and almost the end now phone black screen and can't find driver
    What to do now ? pleas help


    Attached Files:

  16. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    can you enter in fastboot mode? if so follow Q16

  17. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Hello friend
    I am sorry for disterp you
    I follow Q16 and Q17 both are the same at the end it show me
    < waiting for any device >
    I don't know what's the problem


    Attached Files:

  18. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    you cant flash like that

    do this

    6. Download the fastboot ROM
    7. Extract it to the same directory you extracted ADB/Fastboot as per Step 1.
    8. Press "Windows key + X" -> "Command Prompt (administrator)
    9. In command prompt, go to your folder where your ADB/Fastboot are, assuming they are in C:\Fastboot, you type

    > cd C:\Fastboot
    > C:

    10. Once in the "C:\Fastboot" folder, you will need to issue a chain of commands to flash critical images, so type:

    C:\Fastboot>fastboot devices
    C:\Fastboot>fastboot flash tz tz.mbn
    C:\Fastboot>fastboot flash dbi sdi.mbn
    C:\Fastboot>fastboot flash sbl1 sbl1.mbn
    C:\Fastboot>fastboot flash rpm rpm.mbn
    C:\Fastboot>fastboot flash aboot emmc_appsboot.mbn
    C:\Fastboot>fastboot erase boot
    C:\Fastboot>fastboot flash misc misc.img
    C:\Fastboot>fastboot flash modem NON-HLOS.bin
    C:\Fastboot>fastboot flash system system.img
    C:\Fastboot>fastboot flash cache cache.img
    C:\Fastboot>fastboot flash userdata userdata.img
    C:\Fastboot>fastboot flash recovery recovery.img
    C:\Fastboot>fastboot flash boot boot.img
    C:\Fastboot>fastboot reboot

  19. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    do not do fastboot oem odl, you can't flash the above steps with fastboot oem odl

  20. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Hello friend
    I follow exact same as you ask me to do in your answer step by step
    but still I can't , it show me ( error: cannot load ' tz.mbn '
    Please need you help to solve this problem
    Thanks


    Attached Files:

    van lam likes this.
  21. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    Have you extracted the ROM to fastboot folder, the intire ROM (files, not folders) must be in the fastboot folder

  22. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Hello friend
    I try agin now it show me
    FAILED <remote: device is locked. Cannot flash images>


    Attached Files:

  23. Helder Moura

    Aug 27, 2015
    75
    30
    30
    Male
    #23Helder Moura,Apr 13, 2016
    Last edited: Apr 13, 2016
    ok

    then you have to follow first the Q 17, if in the midle of flash (not at the beggining) if it gives you one error don't worry you have already the bootloader unloked, then folow previous post, and all will be fine

    use this miflashtol
    https://mega.nz/#!nwsiQQCT!YdZctPfIZ8zEUS3mjP6ZJ2erG5Cqtln60Yc_QVdO2dg
    install and reboot you pc

  24. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Hello friend
    I follow the Q17 and all are successful and after I power on the phone all information delete
    and the phone become like new

  25. salehalalawi

    Feb 28, 2016
    24
    1
    15
    Male
    Hello Friend
    After I follow Q17 and every thing is successful
    and the phone become like new with only English and Chinese language
    And MIUI version 7 5.11.26 | Beta
    Is my phone unlock now and I can install any Roms ?
    Please help me what to do after that ?
    Thanks


    Attached Files:

Share Our Site
