[GUIDE][alioth] How to install Xiaomi.eu ROM for Xiaomi Redmi K40


sunil87658 said:
hi, I am on latest Indian stable Miui 12.5 version. Can I flash latest EU beta fastboot rom? Bootloader is unlocked. Should i just click First_install_with_data_format_bat.rom? and also do I need to change the device name in this bat.rom file?
Click to expand...
no new fastboot rom for poco f3... latest fastboot rom are xiaomi.eu_multi_HMK40_POCOF3_21.4.22_v12-11-fastboot.... from april...

sunil87658 said:
hi, I am on latest Indian stable Miui 12.5 version. Can I flash latest EU beta fastboot rom? Bootloader is unlocked. Should i just click First_install_with_data_format_bat.rom? and also do I need to change the device name in this bat.rom file?
Click to expand...
You mustn't use this old premise rom.
You must download latest Weekly or Stable and install it via TWRP.
just boot it in fastboot and install the rom latest.

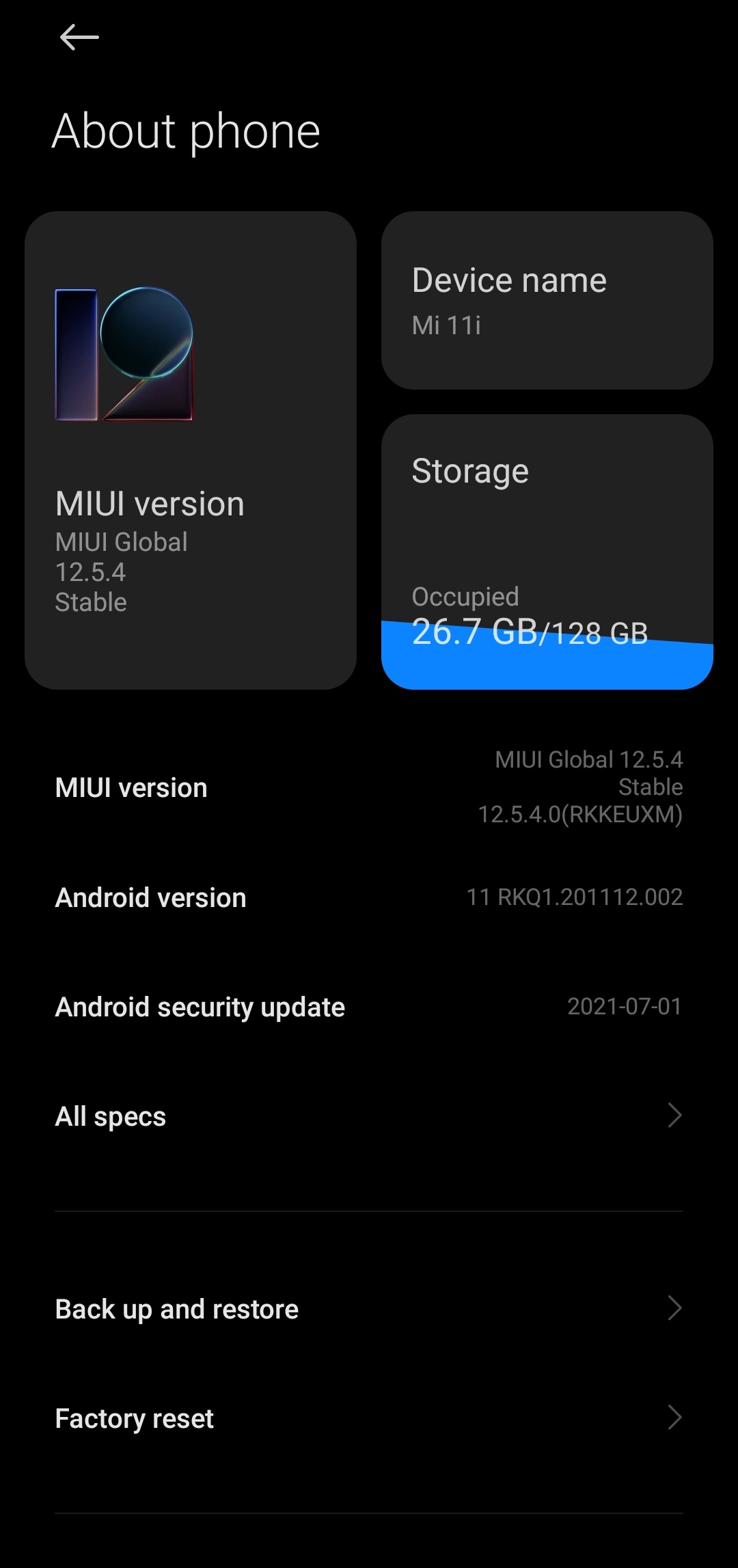

My phone model is Mi 11 i and I want to ask what is the procedure for switching from the global to the European version. From what I read there is no TWRP for haydn. For Mi 11i you can use TWRP from k40 pro if there is one? can someone help please with the steps to follow to pass on I. I applied for bootloader unlock and I have to wait 168 hours.

Last edited:
TaFN07 said:
My phone model is Mi 11 i and I want to ask what is the procedure for switching from the global to the European version. From what I read there is no TWRP for haydn. For Mi 11i you can use TWRP from k40 pro if there is one? can someone help please with the steps to follow to pass on I. I applied for bootloader unlock and I have to wait 168 hours.
Click to expand...
Here is the installation guide for xiaomi.eu ROM for your model (haydn)

  • Like
Reactions: TaFNC
Can someone please help me.
I have new k40 with Chinese ROM. I followed the guide for first install xiaomi.eu ROM.

But it is now not booting.

When running windows_fastboot_first_install_with_data_format.bat in administrator CMD I get the following:

Code:
Finished. Total time: 0.031s
Erasing 'userdata'                                 OKAY [  0.094s]

        F2FS-tools: mkfs.f2fs Ver: 1.13.0 (2019-09-24)

Info: Disable heap-based policy
Info: Debug level = 1
Info: Trim is disabled
Info: Set conf for android
Info: Segments per section = 1
Info: Sections per zone = 1
Info: sector size = 512
Info: total sectors = 472760280 (230839 MB)
Info: zone aligned segment0 blkaddr: 512
Info: add quota type = 0 => 4
Info: add quota type = 1 => 5
[f2fs_init_sit_area: 556]       Filling sit area at offset 0x00600000

And then a windows program crash popup,
"make_f2fs.exe has stopped working"

Could it be because I didn't enable developer mode and/or OEM unlocking / USB debugging?
The guide didn't say to do it so I didn't think about it.

I don't know what to do next. My phones stuck on boot screen :'(

You are going to wipe your data and internal storage. It will delete all your files and photos stored on internal storage. Do you agree? (Y/N) y
product: alioth
product: alioth
Sending 'dsp_ab' (65536 KB) OKAY [ 1.801s]
Writing 'dsp_ab' (bootloader) Partition dsp_a flashed successfully
(bootloader) Partition dsp_b flashed successfully
OKAY [ 0.212s]
Finished. Total time: 2.042s
Sending 'xbl_config_ab' (100 KB) OKAY [ 0.011s]
Writing 'xbl_config_ab' (bootloader) Partition xbl_config_a flashed successfully
(bootloader) Partition xbl_config_b flashed successfully
OKAY [ 0.012s]
Finished. Total time: 0.048s
Sending 'boot_ab' (131072 KB) OKAY [ 3.411s]
Writing 'boot_ab' (bootloader) Partition boot_a flashed successfully
(bootloader) Partition boot_b flashed successfully
OKAY [ 0.416s]
Finished. Total time: 3.856s
Sending 'modem_ab' (257132 KB) OKAY [ 6.894s]
Writing 'modem_ab' (bootloader) Partition modem_a flashed successfully
(bootloader) Partition modem_b flashed successfully
OKAY [ 0.803s]
Finished. Total time: 7.726s
Sending 'vbmeta_system_ab' (4 KB) OKAY [ 0.002s]
Writing 'vbmeta_system_ab' (bootloader) Partition vbmeta_system_a flashed successfully
(bootloader) Partition vbmeta_system_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.035s
Sending 'tz_ab' (3104 KB) OKAY [ 0.090s]
Writing 'tz_ab' (bootloader) Partition tz_a flashed successfully
(bootloader) Partition tz_b flashed successfully
OKAY [ 0.014s]
Finished. Total time: 0.129s
Sending 'vbmeta_ab' (4 KB) OKAY [ 0.002s]
Writing 'vbmeta_ab' (bootloader) Partition vbmeta_a flashed successfully
(bootloader) Partition vbmeta_b flashed successfully
OKAY [ 0.006s]
Finished. Total time: 0.040s
Sending 'bluetooth_ab' (412 KB) OKAY [ 0.023s]
Writing 'bluetooth_ab' (bootloader) Partition bluetooth_a flashed successfully
(bootloader) Partition bluetooth_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.062s
Sending 'abl_ab' (204 KB) OKAY [ 0.015s]
Writing 'abl_ab' (bootloader) Partition abl_a flashed successfully
(bootloader) Partition abl_b flashed successfully
OKAY [ 0.007s]
Finished. Total time: 0.050s
Sending 'dtbo_ab' (32768 KB) OKAY [ 0.875s]
Writing 'dtbo_ab' (bootloader) Partition dtbo_a flashed successfully
(bootloader) Partition dtbo_b flashed successfully
OKAY [ 0.109s]
Finished. Total time: 1.015s
Sending 'featenabler_ab' (88 KB) OKAY [ 0.008s]
Writing 'featenabler_ab' (bootloader) Partition featenabler_a flashed successfully
(bootloader) Partition featenabler_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.044s
Sending 'vendor_boot_ab' (1556 KB) OKAY [ 0.045s]
Writing 'vendor_boot_ab' (bootloader) Partition vendor_boot_a flashed successfully
(bootloader) Partition vendor_boot_b flashed successfully
OKAY [ 0.009s]
Finished. Total time: 0.084s
Sending 'keymaster_ab' (256 KB) OKAY [ 0.010s]
Writing 'keymaster_ab' (bootloader) Partition keymaster_a flashed successfully
(bootloader) Partition keymaster_b flashed successfully
OKAY [ 0.006s]
Finished. Total time: 0.046s
Sending 'uefisecapp_ab' (124 KB) OKAY [ 0.006s]
Writing 'uefisecapp_ab' (bootloader) Partition uefisecapp_a flashed successfully
(bootloader) Partition uefisecapp_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.052s
Sending 'qupfw_ab' (56 KB) OKAY [ 0.004s]
Writing 'qupfw_ab' (bootloader) Partition qupfw_a flashed successfully
(bootloader) Partition qupfw_b flashed successfully
OKAY [ 0.007s]
Finished. Total time: 0.037s
Sending 'xbl_ab' (3464 KB) OKAY [ 0.099s]
Writing 'xbl_ab' (bootloader) Partition xbl_a flashed successfully
(bootloader) Partition xbl_b flashed successfully
OKAY [ 0.022s]
Finished. Total time: 0.155s
Sending 'cmnlib_ab' (384 KB) OKAY [ 0.017s]
Writing 'cmnlib_ab' (bootloader) Partition cmnlib_a flashed successfully
(bootloader) Partition cmnlib_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.051s
Sending 'cmnlib64_ab' (500 KB) OKAY [ 0.018s]
Writing 'cmnlib64_ab' (bootloader) Partition cmnlib64_a flashed successfully
(bootloader) Partition cmnlib64_b flashed successfully
OKAY [ 0.010s]
Finished. Total time: 0.061s
Sending 'devcfg_ab' (56 KB) OKAY [ 0.004s]
Writing 'devcfg_ab' (bootloader) Partition devcfg_a flashed successfully
(bootloader) Partition devcfg_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.045s
Sending 'hyp_ab' (436 KB) OKAY [ 0.010s]
Writing 'hyp_ab' (bootloader) Partition hyp_a flashed successfully
(bootloader) Partition hyp_b flashed successfully
OKAY [ 0.008s]
Finished. Total time: 0.053s
Sending 'imagefv_ab' (20 KB) OKAY [ 0.003s]
Writing 'imagefv_ab' (bootloader) Partition imagefv_a flashed successfully
(bootloader) Partition imagefv_b flashed successfully
OKAY [ 0.007s]
Finished. Total time: 0.045s
Sending 'aop_ab' (200 KB) OKAY [ 0.012s]
Writing 'aop_ab' (bootloader) Partition aop_a flashed successfully
(bootloader) Partition aop_b flashed successfully
OKAY [ 0.006s]
Finished. Total time: 0.043s
Sending 'cust' (417604 KB) OKAY [ 10.438s]
Writing 'cust' OKAY [ 0.001s]
Finished. Total time: 10.720s
Sending sparse 'super' 1/7 (741089 KB) OKAY [ 19.446s]
Writing 'super' OKAY [ 0.001s]
Sending sparse 'super' 2/7 (781660 KB) OKAY [ 19.932s]
Writing 'super' OKAY [ 0.002s]
Sending sparse 'super' 3/7 (771052 KB) OKAY [ 20.155s]
Writing 'super' OKAY [ 0.001s]
Sending sparse 'super' 4/7 (769024 KB) OKAY [ 21.292s]
Writing 'super' OKAY [ 0.001s]
Sending sparse 'super' 5/7 (776132 KB) OKAY [ 26.935s]
Writing 'super' OKAY [ 0.002s]
Sending sparse 'super' 6/7 (758172 KB) OKAY [ 20.392s]
Writing 'super' OKAY [ 0.001s]
Sending sparse 'super' 7/7 (687924 KB) OKAY [ 16.972s]
Writing 'super' OKAY [ 0.001s]
Finished. Total time: 164.356s
Setting current slot to 'a' OKAY [ 0.003s]
Finished. Total time: 35.668s
Erasing 'metadata' OKAY [ 0.002s]
Finished. Total time: 0.031s
Erasing 'userdata' OKAY [ 0.094s]

F2FS-tools: mkfs.f2fs Ver: 1.13.0 (2019-09-24)

Info: Disable heap-based policy
Info: Debug level = 1
Info: Trim is disabled
Info: Set conf for android
Info: Segments per section = 1
Info: Sections per zone = 1
Info: sector size = 512
Info: total sectors = 472760280 (230839 MB)
Info: zone aligned segment0 blkaddr: 512
Info: add quota type = 0 => 4
Info: add quota type = 1 => 5
[f2fs_init_sit_area: 556] Filling sit area at offset 0x00600000

Everything is in the instructions I provided. What more do you need?

Proceed from point 5.
After starting TWRP, insert the zip. ROM to phone.

  • Like
Reactions: Poney70
gogocar62 said:
Everything is in the instructions I provided. What more do you need?

Proceed from point 5.
After starting TWRP, insert the zipper. ROM to phone.
Click to expand...
Thank you I got it installed.
However how can I put the ROM onto the phone storage if it won't boot? Is there a way for me to do it through adb or something ?

Connect the phone with TWRP to the PC and insert the ROM into the phone.
You can use USB-OTG
or
ADB Sideload

  • Like
Reactions: Poney70
installed xiaomi 12.5.14 and still having problems with third party sms app not having dual sim support, any fix for this? thanks

hello everyone, i installed xiaomi.eu weekly. I would love to go back to stock miui. Can I flash through Nebrassy recovery? So from xiaomi.eu to miui stable through twrp. Or can you only install through fasboot? Thanks very much.

pistap said:
hello everyone, i installed xiaomi.eu weekly. I would love to go back to stock miui. Can I flash through Nebrassy recovery? So from xiaomi.eu to miui stable through twrp. Or can you only install through fasboot? Thanks very much.
Click to expand...
Why do you post different question at different place?
stop spamming!

LOLO9393 said:
Why do you post different question at different place?
stop spamming!
Click to expand...
This is not spam! I need help because I can't flash. I want to go back to stock miui. That's all. Unfortunately there are problems with mi flash tool. I'm 60+ now and I don't joke anymore.

Last edited:
pistap said:
PC With Intel processor. I can run adb commands, sideload, install twrp, flash xiaomi.eu and other rom, only miui eea doesn't work. Xiaomi tool gets stuck when super flashing comes. „Super" is not flashed, installation crashes. Here is my problem:


Thanks
Click to expand...

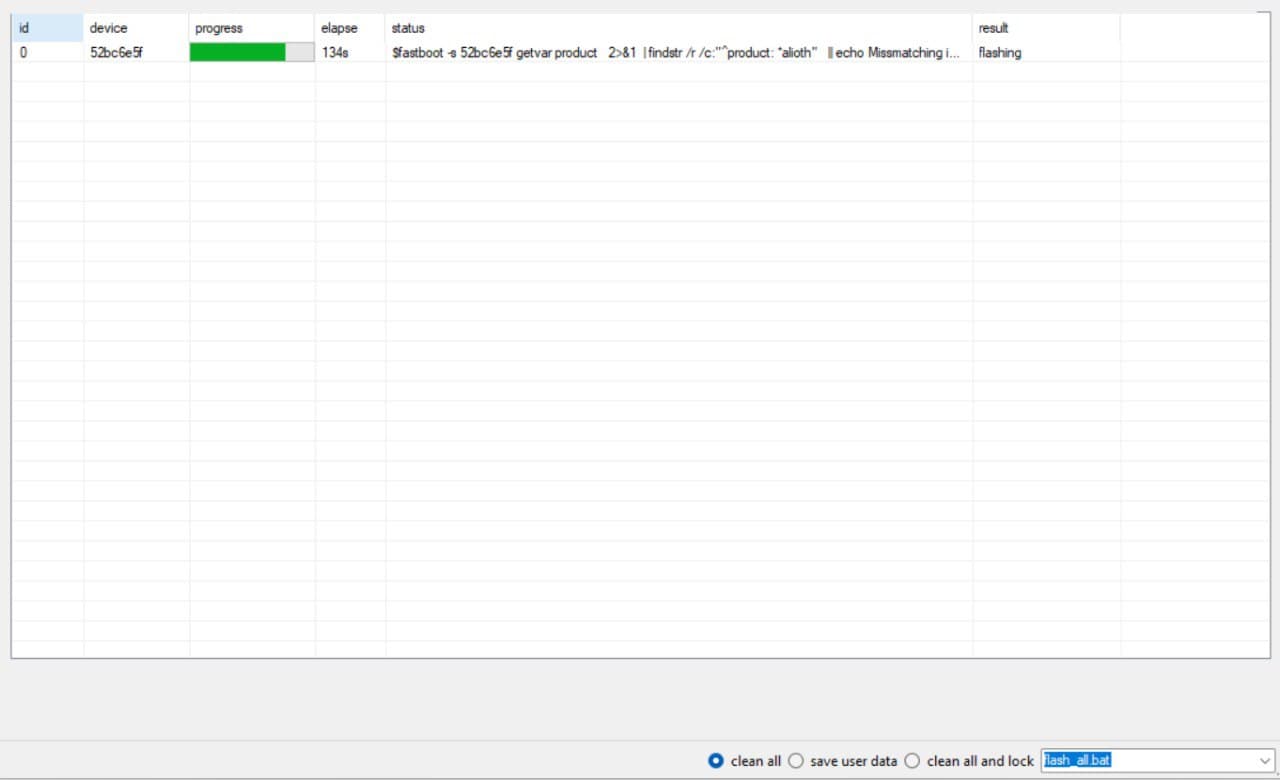

Your third screenshot has the msg to be understood. It is blurred and we can't read it for you.
What is the reported mismatch in object made of?

Last edited:
hey there,
I am currently trying to install the weekly version on my k40.

First I downloaded the zip file, extracted the contents on my computer.
Put the phone in fastboot mode and connected it to the pc.

Running the .bat gives and error message:
This package is for "alioth" devices; this is a "unknown"

the command adb devices gives this output:
List of devices attached
6814a3ed device

What could I do to enable the update - maybe remove the following lines from the batch file?
set DEVICE=unknown
for /f "tokens=2" %%D in ('platform-tools-windows\fastboot %* getvar product 2^>^&1 ^| findstr /l /b /c:"product:"') do set DEVICE=%%D
if "%DEVICE%" neq "alioth" echo This package is for "alioth" devices; this is a "%DEVICE%". & exit /B 1


TIA

p.usul said:
hey there,
I am currently trying to install the weekly version on my k40.

First I downloaded the zip file, extracted the contents on my computer.
Put the phone in fastboot mode and connected it to the pc.

Running the .bat gives and error message:
This package is for "alioth" devices; this is a "unknown"

the command adb devices gives this output:
List of devices attached
6814a3ed device

What could I do to enable the update - maybe remove the following lines from the batch file?
set DEVICE=unknown
for /f "tokens=2" %%D in ('platform-tools-windows\fastboot %* getvar product 2^>^&1 ^| findstr /l /b /c:"product:"') do set DEVICE=%%D
if "%DEVICE%" neq "alioth" echo This package is for "alioth" devices; this is a "%DEVICE%". & exit /B 1


TIA
Click to expand...
That's because you bought a preinstalled phone and prop file is badly modified.
I am not sure but if you flash one latest android 11 EU rom it might/should be corrected.
If not you can do what you suggest, with little risk on this phone model.

You must log in or register to reply here.

Similar threads

gogocar62
Fix Networks for GARNET
Replies
69
Views
17K
Mi General
gogocar62
gogocar62
bicboc
Changing Chinese K40 to English using Linux Mint
Replies
4
Views
1K
Redmi K40 / Pro / Plus / K40S / POCO F3 / F4
bicboc
bicboc
gogocar62
Fix_SIM_ Xiaomi 14 Global verzion
Replies
59
Views
16K
Xiaomi 14 / Pro / Ultra
gogocar62
gogocar62
gogocar62
How to Install Stock ROM.
Replies
0
Views
2K
Mi General
gogocar62
gogocar62
X
Can't upgrade Poco F3 from 13.0.9
Replies
1
Views
2K
Redmi K40 / Pro / Plus / K40S / POCO F3 / F4
xiaonoob
X
Top Bottom
Back
