Hard Brick Xiaomi Mi2s, Please Help !!!


Sep 1, 2015
2
0
11
#1
Hello,

After several attempts to flash my Xiaomi MI2S 16 Gb with MiFlash, I'm still at the same point: my phone is dead.
- Black screen
- No Recovery Mode
- No download mode
- Red light for 5 seconds when I connect it to the computer
- Is recognized by windows "Qualcomm HS-USB QDloader 9008"
- The battery is 100% charged (for a universal charger)


I followed this link: http://xiaomi.eu/community/threads/guide-flashing-rom-using-miflash-mi2-3.19287/
and this : http://xiaomi.eu/community/threads/ultimate-cure-to-the-qhsusb_dload-of-mi2-s.20567/

but .......

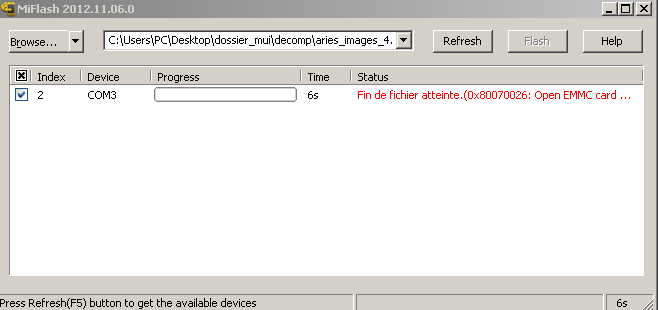

With MiFlash "End of file reached (0X80070026) Open EMMC card user partition"

miflash 1.PNG

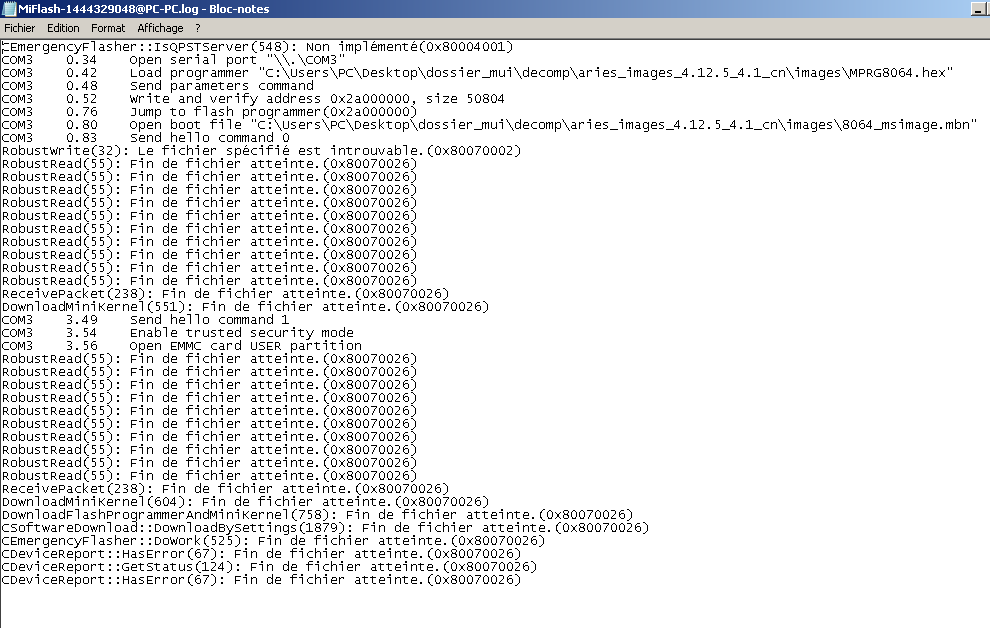

The report MiFlash




(If there is no other solution, I can use a JTAG box so if a persone can provide me with the JTAG repair files and PIN OUT connection, will be very good.)

Please help me !!!!

Thank you in advance

Sep 1, 2015
2
0
11
#3
thank you for cleaning my computer, but it is done regularly by another paid software.

My problem is always the same

Thanks for your answer

Jul 12, 2014
2
0
11
#4
Did you fix it? I have the same problem.
Any help please?
Thanks in advance.


Enviado desde mi iPad utilizando Tapatalk

May 6, 2013
33
1
18
#5
I have the same problem...I was able to flash a custom recovery via fastboot. Now i am trying to flash a rom, but something wont work... :/ i will inform you if i get it

Feb 26, 2016
10
1
13
#6
A、【http://bigota.d.miui.com/4.11.14/aries_images_4.11.14_4.1_cn_68c0329d3a.tgz】
download the last rom need unzip【opean with winrar】
B、download mi2s driver 【http://s1.mi.com/images/new816/Driver.rar】
C、setupthe flashtools 【http://bigota.d.miui.com/tools/MiPhone20141107.exe】

D、start
1、@phone enter the bootloadmode link to U computer
2、@computer windows+R input 【devmgmt.msc】find the driver of U phone @ B step
now U phone may linked (U may need restart U computer )
3、opean the MiFlash.exe and click reflash【刷新/F5】 now U phone appear at the list (if doesn't appear restart U computer and opean the miflash at administrator user) then click the 【浏览】to thefile directory of A step unzip folder path
4、now click the flash
welldown the end
----------------------------------------
if U want from V7 flash to V5 / V6
u need changes something otherwise appear error

1、 download the rom and unzip 【http://bigota.d.miui.com/4.12.5/aries_images_4.12.5_4.1_cn_541bba86b6.tgz
unzip the tgz,and deleted the file【whole *.bat and *.sh together 6file】and instead of them → 【http://www.miui.com/forum.php?mod=viewthread&tid=3456100】/【4file.zip】
2、like the step D( the D2step may cancel,if u have right step the driver)
