Ultimate cure to the 'QHSUSB_DLOAD' of Mi2/S

Discussion in 'Xiaomi Mi 2 / Mi 2S' started by Hongbaoyao, May 24, 2013.

  1. Hongbaoyao

    HongbaoyaoMembers

    May 21, 2013
    6
    7
    13
    Male
    What is 'qhsusb_dolad' ?It is the situation when you can't boot into your phone,recovery mode and any other visible interface. When you connected your phone to the PC, the LED will flash and your PC will show that they were searching for the drivers needed(win7/8) but they couldn't find .......If it is commom for you to remove the battery when the phone did not shutdown completely or when you ran into 'No-Response' , as time goes by ,it will be inevitable that you come across the 'QHSUSB_DLOAD' situation .
    But from now on ,you needn't worry about that for I have found a way out.
    Tools needed:
    Hardware: A PC running XP and higher (win7/8 recommended) and your usb cable
    Software : MIflash and MIAssistent and a certain mi update rom(It is a *.exe file---fastboot file)
    Steps :
    1. Install the first two softwares described above(Run as administrator) in your PC (You need to disable the enforcement of digital signature while on win8 in the advanced startup (press 7 or F7)
    2.Boot into fastboot mode(you just need to do with your two buttons and usually you cann't see the interface for your screen just won't show in this situation) before connecting to PC
    3.Connect you MI2/S to your PC via the usb cable and the pc will recongnise it in the device manager panel(if not, update its driver in the unknown device---qhsusb_dload)
    4.Open the miflash and click fresh to load your phone's serial number
    5.Flash the update rom(the self-extracted-to folder) into your phone and reboot .

    Explanations:
    Miassistant contains the 'qhsusb_dload' driver for any phone and it enables the PC(Miflash) to recongnise your CPU serial which is the key part of updating by wire.

    Tips:

    Try this with your other phone, I believe it will work ,too.

    Good luck ,guys !

  2. sinocreate

    sinocreateMembers

    Jun 3, 2013
    18
    12
    13
    Male

    Hey, guy.

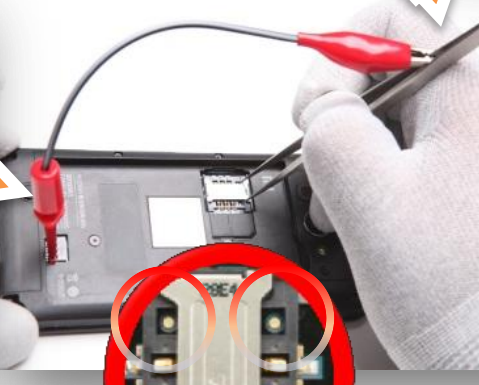

    When you want to repair your bricked M2, you need to get the two test points and the battery holder negative to be short-circuit. It will force the low Level system work.
    See the picture.


    Attached Files:

    Infinitely, Natane and MSephiroth like this.
  3. Daha601

    Daha601Members

    Jun 6, 2013
    5
    0
    21
    Male
    Rovereto, Italy

    Hi, i have try this metod, the only change is when i plug the cable, my led turn on (red color) for 1 second and then the phone is off!

    How can i try? There are method like usb dongle for samsung?

    thanks :(

    i have upload my last flash


    Attached Files:

  4. sinocreate

    sinocreateMembers

    Jun 3, 2013
    18
    12
    13
    Male
    Hi, this is the rescue way for bricked M2 or M2s.
    I do not know the way for samsung, sorry.

  5. Daha601

    Daha601Members

    Jun 6, 2013
    5
    0
    21
    Male
    Rovereto, Italy
    okok, i have a mi2s!
    I can not access the fastboot because the phone after the flash does not go. But if i try this rescue way i have only my red led on when i plugged the cable... another help? How i can do after the short-circuit?

  6. sinocreate

    sinocreateMembers

    Jun 3, 2013
    18
    12
    13
    Male

    Are you sure you can not boot your phone to fast boot mode? Press key"volume -" and power button at the same time.

    When you connect your phone to your computer via usb port, can you find something called"unknown"on the Device Manager panel?

    It's easy to save your dead phone with MiFlash. But I have to translate the Chinese guide to English...My god...

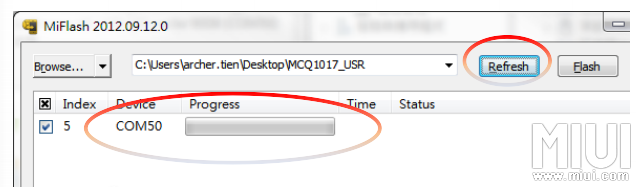

    I suggest: First of all, connect your phone to your computer, and if the computer find new hardware"QHSUSB_DLOAD", install the driver, then open the MiFlash, and see whether there is device list on the panel, see the picture. If it is, you can flash it and save it.
    If not, you should do the "short-circuit" ...

    Daha601 likes this.
  7. Daha601

    Daha601Members

    Jun 6, 2013
    5
    0
    21
    Male
    Rovereto, Italy
    I can not go into fastboot mode but after a short circuit if I try to attach the power cable, the LED turns red when I try to use combinations of keys.
    Since installing the battery nothing happens. I have the driver for MiFlash, but i can't find nothing in MiFlash

  8. Hongbaoyao

    HongbaoyaoMembers

    May 21, 2013
    6
    7
    13
    Male
    If the LED turns red,it just says that your phone can be saved(no hardware damage). I had ever met this and I successfully made it. Do what I wrote above and you can defenitely save your phone, not just Mi2/s

  9. what happens if fastboot gets corrupted?(which can happen very easily)

    VinSWADED likes this.
  10. sinocreate

    sinocreateMembers

    Jun 3, 2013
    18
    12
    13
    Male
    The ultimate save method was originally posted in MIUI form:
    http://www.miui.com/thread-1130259-1-1.html
    http://www.miui.com/thread-1207329-1-1.html

    I suggest you try the method below:

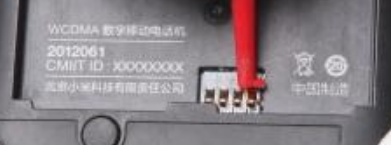

    1, Take your battery out, find metal wire and make a short circuit between two test point and the negative pole point, see below(be careful, do not connect the wrong point!!!):

    2, Connect your phone to computer via usb port(you may ask someone else to help you), open the device manager, see whether a new hardware“QHSUSB_DLOAD” was found, see the picture:


    3, If it is, install the driver attached: Qhsusb Dload Driver
    After install the driver, you will find the device below:

    4, Remove the metal wire, and install your battery back.

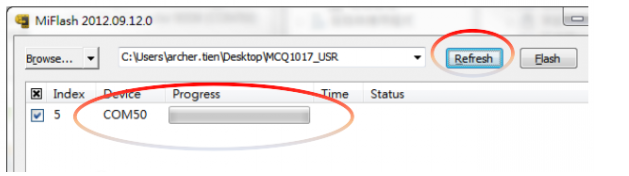

    5, Open your MiFlash, you will find a Qualcomm device in the list:

    6, Flash a complete rom,such as :QDT10, or JLB15, etc. Your phone will reburn...


    Attached Files:

  11. fodev

    fodevMembers

    Jun 10, 2013
    6
    2
    13
    Male
    Thx, i've fixed my xiaomi firmware, its working now.

  12. unicornius

    unicorniusMembers

    May 5, 2012
    4
    0
    11
    Male
    Hi Could anyone give me any tips? perform the whole process, as described in Win7, but when I click flash (MIflash) the computer loses drive and can not reinstall it. Even trying to reinstall the drive, does not work. Redo the process, the drive is found but again get lost when I click flash again. Some kind soul could help me? Thank you.

  13. fodev

    fodevMembers

    Jun 10, 2013
    6
    2
    13
    Male
    Do miui work? What step do you have, decribe plz

  14. Davide94

    Davide94Members

    Jun 25, 2013
    3
    0
    21
    Male
    Hi, I've a Xiaomi Mi 2. Sorry for my english, I'm Italian :D
    My phone is dead. I want try to use your guide but I can't find "MiAssistent" on web...can you help me?
    However, I've just try to use Miflash, but it says "device is busy"...can you help me please??

  15. fodev

    fodevMembers

    Jun 10, 2013
    6
    2
    13
    Male
    If you have found qualcomm device, you could to try use miflash, if device busy, so you need to restart your PC, before Windows starting press F8 and choose "do not check signatant of drivers"

  16. Davide94

    Davide94Members

    Jun 25, 2013
    3
    0
    21
    Male
    M...thanks ;) I try it immediately!

  17. Davide94

    Davide94Members

    Jun 25, 2013
    3
    0
    21
    Male
    fodev I LOVE YOUUUUUUUUUUU :'DDD

  18. unicornius

    unicorniusMembers

    May 5, 2012
    4
    0
    11
    Male
    fodev, I have used F8, but the problem remains the same. After clicking flash drive is lost and is only one USB port without being recognized. I try to indicate the correct drive to reinstall win7 but says the best drive is already installed and there. I appreciate any kind of help, please. Thank you.

  19. gelateriabonazzi

    Jun 28, 2013
    2
    0
    21
    Female
    Ponte Nossa
    same problem, if I connect the cell to the pc turns on the red light for 10 seconds, then the cell remains on the logo and the "mI"

  20. ayaz

    ayazMembers

    Jul 2, 2013
    1
    1
    13
    Male
    hi guys ! i have recently encountered the QHSUSB_DLOAD problem with my htc sensation, the phone didnt turned on neither it goes into recovery mode. so after reading through this forum, i did exactly as suggested. i installed the driver and now have the QUALCOM thing. while using the miflash and miflash fastboot stable version rom i now have this problem when i press the flash button "the device is not ready.(0x80070015: send hello command 60)". so i need your help guys please. i know i am very close to reviving my phone but i am hust stuck at this point, dont know what to do. any help would be appreciated

    Draco83 likes this.
  21. unicornius

    unicorniusMembers

    May 5, 2012
    4
    0
    11
    Male
    Me too, please!!!!!!!!

  22. aditoma777

    aditoma777Members

    Sep 14, 2012
    103
    19
    38
    Male
    Szomód
    i had the same problem with my mione plus :/ can anybody help me how to do it?

  23. toubi

    toubiMembers

    Jul 22, 2013
    1
    0
    21
    Male
    Casablanca, Morocco
    HI I NEED FULL FIRMWARE T989 DEAD PHONE

  24. sevenseas

    sevenseasMembers

    Jul 25, 2013
    1
    0
    11
    Male
    thx sir,
    following guide i successfully installed drivers for QHUSB_DLOAD. something like that;
    [​IMG]

    and like this one:
    [​IMG]





    and have installed MiFlash in which my mobile, which is still off( could not be powerd-on while pressing volume+power button etc although), showing in the detected list when i pressed Refresh button.

    Also i could not find any MiAssistant software. where it is on the net? any link? etc?
    2ndly what does it mean by .exe file some fastboot file. i have downloaded a rom but its in file format boot.img not in .exe
    Any guidance? method?
    (my mobile is korean: Take Km Janus s200)
    regards.
