Ultimate cure to the 'QHSUSB_DLOAD' of Mi2/S

Discussion in 'Xiaomi Mi 2 / Mi 2S' started by Hongbaoyao, May 24, 2013.

  1. buttons

    buttonsMembers

    Aug 11, 2013
    1
    0
    11
    Male
    Hello everyone and sorry for the text use the translator.
    I have mi2 dead, is recognized as QHUSB_DLOAD ........
    but with miflash wrong has good end.
    by mistake ..... problem EMMC and non-compliant file
    Who can help me?

  2. tomaslu

    tomasluMembers

    Sep 24, 2013
    1
    0
    11
    hello please if you can help with my Mi2S, by turn on only logo of xiaomi appears, the same if I try push volume down+power the recovery menu will not start. When connect to pc through usb it flush red led for second and again logo xiaomi appers and nothing else, windows 7 not recognize any usb device connected. So I tried this cure with wire points, progress was thas windows recognize usb device and succesfull install drivers for qualcomm, than I have start Miflash http://bigota.d.miui.com/tools/MiPhone2.11.6.exe with script flash_all_wipe.bat, ROM for Mi2S I downloaded from http://bigota.d.miui.com/3.9.20/miui_MI2_3.9.20_fastboot_4.1_fjr7c3dccl.exe .So Miflash detect device, klick on flash and it begin, after 370s it ends succesfull. Unplug phone a start it, and again only logo appears nothing else, I try flash it twice but no change. Please do you have some another tips how I can revive xiaomi?

  3. wtfhax

    wtfhaxMembers

    Mar 27, 2011
    29
    7
    18
    You could try the official MiFlash to restore the Mi2(s) @ http://bigota.d.miui.com/MiFlash/MiFlashSetup_1.0.12.4120.exe

    Run the software and connect your device, if the software detected your device there should be a green button. Click on it and the software will download and flash it back to factory state.

  4. nexxiaomi

    nexxiaomiMembers

    Apr 15, 2014
    9
    1
    13
    Male
    My xiaomi take now reaction what should i do? Pls help me.

    Gesendet von meinem Nexus 4 mit Tapatalk

  5. mizuka

    mizukaMembers

    Jun 20, 2014
    1
    0
    11
    Hi ,

    it works with Samsung T989 ?

  6. Swong

    SwongMembers

    Jun 19, 2014
    2
    0
    11
    Male
    Hi. ihave tried the method, but my MI2S stops around 37 seconds in the flash process every time: stating end of file error:[​IMG]

  7. Natane

    NataneMembers

    Dec 23, 2012
    8
    0
    21
    Male
    Jerusalem, Israel
    When exactly I short-circuit? nothing is connected or the usb is in ? How many times? How can we know that I short circuit ?
    Thanks in advanced for all the answers..

  8. Beyaz

    BeyazMembers

    Feb 13, 2013
    92
    30
    30
    Male
    France
    @Natane If you had read post #11 , you would know that these are already answered questions. Short circuit before connecting usb in until you see a QHSUSB_DLOAD hardware in device manager and when drivers are OK take off your bridge, put your battery in or leave as it is and finally flash a rom..

  9. chc2918

    chc2918Members

    Jul 13, 2014
    10
    0
    11
    Male

  10. chc2918

    chc2918Members

    Jul 13, 2014
    10
    0
    11
    Male
  11. Joseph Molina

    Apr 16, 2012
    7
    0
    11
    Male
    Hi mi mi3 is detected by miflash it says COM20 but when i try to flash it gives me error . I forgot the error. I flash the fastboot .tgz file extracted it and put it on my desktop.

  12. Joseph Molina

    Apr 16, 2012
    7
    0
    11
    Male
    Can someone give me the link for the .exe rom file? Where can i download that?

  13. Hi,

    I had a crashed LCD and after replacing with a spare one, the phone (Mi2 32gb) cannot boot, only has black screen and weirdly I don't get any LED lights...

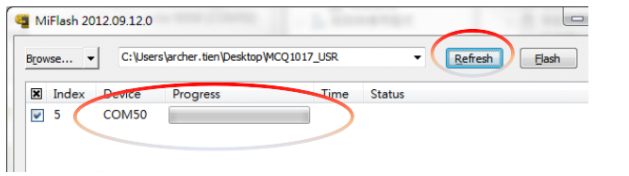

    I installed the MiPhone_Assistant and MiFlash programs, and the Device Manager find the phone as Android Composite ADB Interface... Then in the MiFlash I could see the Devide id (d6d96590) and the Flash operation finished successfully (tried twice), BUT the phone still stuck at the black screen. Additionally, after the flash and reboot of phone (I only guess it is rebooted, as the screen is black always) the Device Manager recognised it as some device, but not a proper phone.

    Where I fail with the process? Does the ADB interface driver cause this issue, and I need to 'short-circle' the phone to be able to flash QHSUSB_DLOAD drivers or there is other known workaround?

    Thanks,
    Ferenc


  14. why do you want to do that? the software on your phone is fine - your lcd is either defective or connected incorrectly

  15. kront75

    kront75Members

    Aug 20, 2014
    12
    1
    13
    Male
    Hello everyone, I have the same problem but with a REDMI NOTE, I watched the pictures to make the connection but the REDMI NOTES is different and near to the contacts of the SIM there are no points where to connect the forceps as images

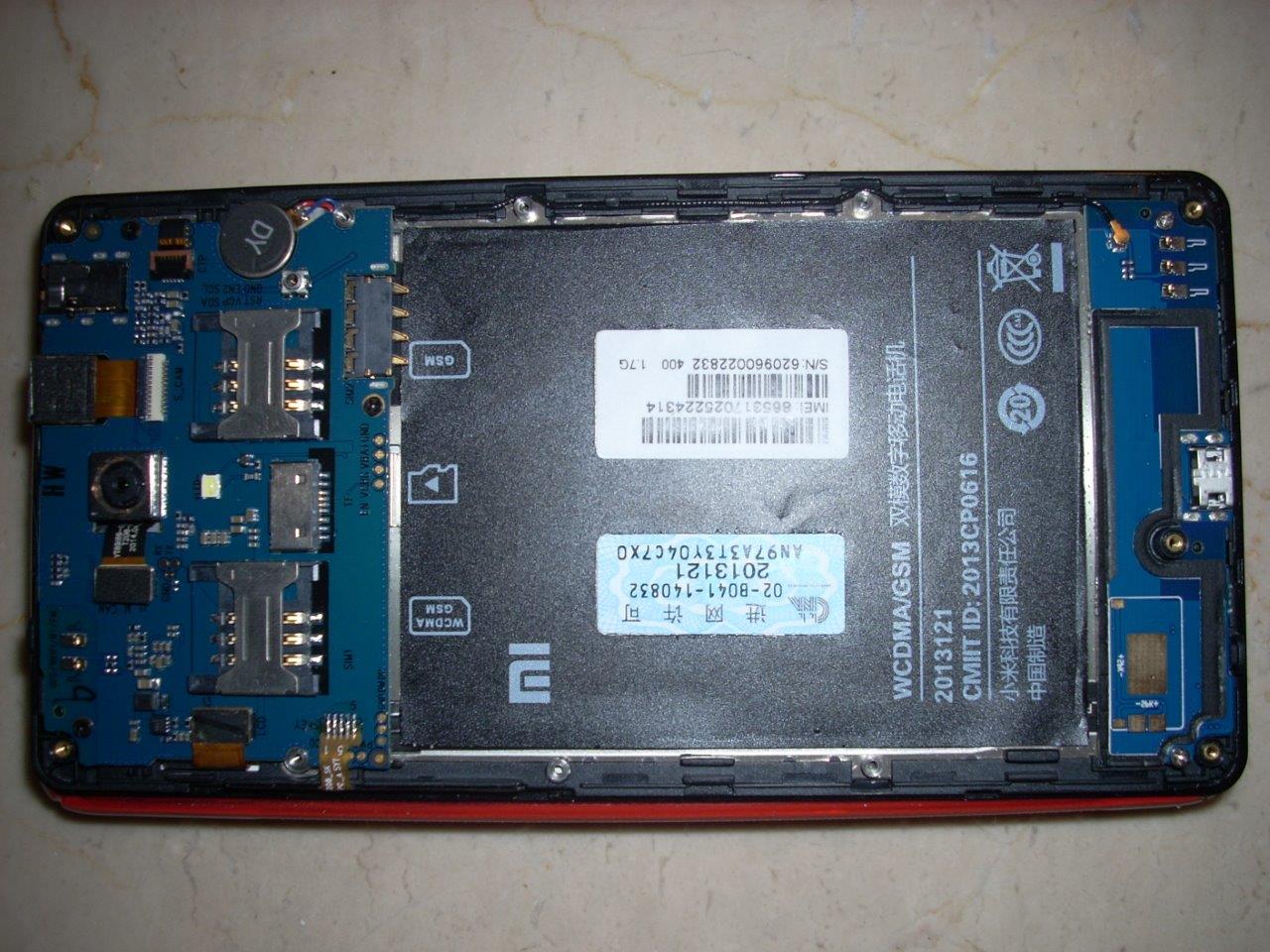

    I removed the back to see if I found them but I have not seen anything that looks like, I include photos of the cell opened, someone can tell me if it is possible to do the same procedure with the REDMI NOTE?


    Attached Files:

    ollan likes this.
  16. @kront75 If you can still enter the bootloader, you can try to press volup and voldown same time when powering on the phone.
    If not it'll get complicated :p

  17. kront75

    kront75Members

    Aug 20, 2014
    12
    1
    13
    Male
    @M1cha the phone shows no signs of life, if I connect it to the charger does not appear nothing, same thing with the pc ... is completely dead:confused:

  18. tasadar

    tasadarMembers

    Feb 10, 2014
    16
    1
    13
    Male
  19. sreejith

    sreejithMembers

    Nov 28, 2014
    12
    0
    11
    Male
    i have the sameproblem with my MI4, were can find the test point? please help

  20. mi2 is the only device with (known) test points. I guess ur mi4 is fully bricked now.

  21. sreejith

    sreejithMembers

    Nov 28, 2014
    12
    0
    11
    Male
    thanks for the respond, now what i have to do? if i give to service center they have to change hardware to solve with any additional hardware like JTAG?please advise

  22. ollan

    ollanMembers

    Dec 17, 2014
    1
    0
    11
    Male
    Just wondering if this issue has been solved ???

  23. sammirati

    sammiratiMembers

    Apr 11, 2014
    10
    0
    11
    Male
    Hi everyone. I used this method several times and even it ends successfully the mobile doesn't restart at all. Because my wife has same mi2s someone knows how to make a nv backup and restore with Qpst? Thanks.

  24. Draco83

    Draco83Members

    Mar 1, 2015
    2
    0
    11
    Male
    Thanks 1000!!!!!!
    My Xiaomi 2S was dead but now it's resurrected!!!

    You are the best,
    thanks again

  25. Manuele

    ManueleMembers

    May 14, 2015
    3
    0
    11
    Male
    Hi guys,

    I think i've a soft-bricket MI2S. I've some issues with reinstalling miui v6 after a tdb and now my phone can fastboot but can't enter in revocery and can't boot normally, it stops at miui logo.
    Reading this topic i try first with miflash, but cell is not recognized like QHSUSB_DLOAD (I've tried with 3 pcs, win xp, win 7 and win 8.1) so i can't install Qhsusb Dload Driver found in a later post.
    At this point i try to short circuit but my mi2s is not recognized anymore by PC, nothing appears like a new device.

    It's fully bricked? Seem strange because i can put it in fastboot, can see mi logo e can turn on/off normally...

    Thank you in advance and excuse me for my bad english
