Redmi 3s 3/32gb Completely Bricked. No Edl, No Fastboot, No Logo, No Led - Solved

Discussion in 'Xiaomi Redmi 3S / 3X' started by MaciekV, Sep 11, 2016.

  1. rodeo

    rodeoMembers

    Nov 11, 2016
    6
    0
    11
    Male
    Ok, thanks. Draining a fully loaded 4000mAh battery could take a while. Will try the usb cable method.

  2. tommyboy7

    tommyboy7Members

    Jun 22, 2016
    19
    10
    15
    Exactly. I did it with a copper wire positioning on the 2nd pin on the left in the usb connector. Whatever is neccesarry to see the Qualcomm Q Loader instead of Diagnostics is fine.

  3. rodeo

    rodeoMembers

    Nov 11, 2016
    6
    0
    11
    Male
    At step 2.-4. : without power conncetor on the other end of the usb cable, correct?

  4. rodeo

    rodeoMembers

    Nov 11, 2016
    6
    0
    11
    Male
    Ok, thanks. I will try it today.

  5. rodeo

    rodeoMembers

    Nov 11, 2016
    6
    0
    11
    Male
    #30rodeo,Nov 11, 2016
    Last edited: Nov 11, 2016

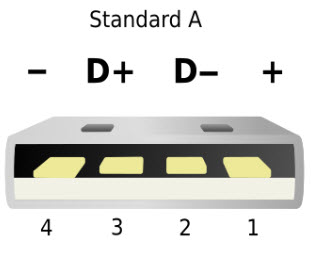

    Tried to connect USB Pin 3 and 4 for several seconds and finaly it worked. Flashing Rom :) Big thanks!


    Attached Files:

  6. MaciekV

    MaciekVMembers

    Sep 11, 2016
    10
    6
    15
    Male
    @rodeo
    What was exactly the state of your bricked phone? - were you be able to enter Fastboot mode (picture attached to be sure) as in tommyboy7's case or the phone was just dark and stone cold as in my case?


    Attached Files:

  7. rodeo

    rodeoMembers

    Nov 11, 2016
    6
    0
    11
    Male
    Hi, it was completely dark. No fastboot.

  8. MaciekV

    MaciekVMembers

    Sep 11, 2016
    10
    6
    15
    Male
    Interesting.
    I was also trying the use of cable described but with no effect except destroying quite pretty good cable.

    I thought the tommyboy7's case was just different than mine - he had got his phone being able to enter fastboot, while I was not. But after your experience with 100% bricked phone I can see there is still a hope for Redmi 3s owners for not opening the lid.

    Opening a phone and removing screws on the mainboard (it is necessary to get to the test points) can lead to loose a warranty.
    Not everyone can decide on this.

  9. tommyboy7

    tommyboy7Members

    Jun 22, 2016
    19
    10
    15
    #34tommyboy7,Nov 25, 2016
    Last edited: Nov 25, 2016
    Yes, i was at the point where i didn't care about warranty, since the phone was for someone else and time was running out.
    The 2pin method did nothing for me but in the meantime i got a deepflash cable from aliexpress just to be prepared for this in the future.

    If your phone's mainboard didn't die there's always hope. Snapdragon devices are almost impossible to brick beyond repair.

    Also important note. I've found it almost impossible to remove the back cover of 3s without scratching the edges a bit. It's not a disaster, but you can see it. If on the other hand you're faced with the possibility of a brick, you end up trying everything.

  10. crawler009

    crawler009Members

    Nov 25, 2016
    1
    0
    11
    Guys, you dont have to open the phone to turn it off completely.
    (BRICK con el Tutorial M├ętodo Alternativo ROM Oficial sin desbloquear Bootloader)
    (i cannot post links)

    Push all 3 Buttons until it restarts like 3 times. Then when the mi logo disapears again, drop all 3 Buttons and the phone is completely turned off.

  11. phonefix

    phonefixMembers

    Nov 25, 2016
    1
    1
    15
    Male
    Soooooooooooooooooooooooooooooooooooo many thanks bro.....
    I was totally hlepless when i saw my phone dead.....But your trick worked like charm!!
    I got my phone alive once again....You're my HERO......
    Thank you soooooooooooooooooooooooo much!!

    ov1lord likes this.
  12. chinasky

    chinaskyMembers

    Nov 24, 2016
    11
    1
    15
    The cable method worked for me! I didn't know how turn off the phone . So i let it overnight discharge in fastboot mode :).

    then i made the cable connections. At that point, after connecting and disconnecting green and black cable the phone was unrecognized by windows. I changed it with a good usb one and windows recognized the phone in edl mode.

    hope this workaround helps someone else.

    Jaime DLH likes this.
  13. Tarixd

    TarixdMembers

    Nov 28, 2016
    2
    0
    11
    Just wanted to thank the thread starter and confirm this method works like a charm! Trust and follow the step by step description and you'll definitely get back your Redmi 3S back to life. The only pain is opening the battery cover, but if it's an alternative to the USB cable wiring method, than I would prefer opening the battery cover.

    PS: My phone was in a boot loop after flashing went wrong, because of data link broke. The edl mode was unreachable, could only get through the fast boot menu. And Phone was locked.

  14. Iuriy

    IuriyMembers

    Dec 2, 2016
    3
    0
    11
    Male
    Hello guys, I'm in he position with my Redmi 3S is bootlooping and only entering Fastboot mode. (I tried to flash recovery with TWRP :/ ).

    So with one of these 2 methods will I be able to unbrick it?
    Bootloader locked again after flashing. If I do the cable or test point method and the phone is detected as Qualcomm 9008, should I flash a stable global rom via MiFlash, right?

  15. Tarixd

    TarixdMembers

    Nov 28, 2016
    2
    0
    11
    My phone had a locked bootloader and the test point method worked for me. After unbricking you get actually the possibly to use EDL (download of rom to the phone) back. Which means you can flash whatever ROM you want. In my case I flashed the gobal dev rom with MiFlash.

  16. Iuriy

    IuriyMembers

    Dec 2, 2016
    3
    0
    11
    Male
    Thank you.

    Just one more question, using a homemade Deep Flash Cable, is there any risk for the phone?

    I think I'll try with the cable first and then if that doesn't work, I'll try the test point.

  17. MaciekV

    MaciekVMembers

    Sep 11, 2016
    10
    6
    15
    Male
    @luryi

    There is always a risk and taking the risk is on your side ;)
    But if you just shortcut the cable in the way described nothing bad should happen.
    Let us know if you were successful with the cable or you had to use the pinpoint method.

    In case you would have open your phone I suggest to watch the video before:


    It was my guide for opening and I used exactly the same blue, hard plastic tool.
    What is the most important - start the opening exactly in the point the guy from the movie did.

    In my case there were no visible traces after opening the housing but I was very gentle.

    Have fun anyway.

  18. Iuriy

    IuriyMembers

    Dec 2, 2016
    3
    0
    11
    Male
    @MaciekV

    It worked! I used the cable method, I did it a little bit different, but it worked and now I my Redmi S3 is working again :D

    I say it was a little different because I connected the USB with the copper wire, I removed the USB (and copper) and connected it again in the other port next to it without the copper and the device was recognized as Qualcomm 9008 :3

    Thank you so much!

  19. MaciekV

    MaciekVMembers

    Sep 11, 2016
    10
    6
    15
    Male
    @luryi

    Congratulations :)
    Another one person happy with bringing his phone back to life.
    Nice to hear that.

  20. zki3z

    zki3zMembers

    Dec 5, 2016
    3
    0
    11

    Hello, I am in the same trouble but with redmi note 3 SD, can I ask you, did your phone go to recharge mode after connecting with the coppper wire?

  21. Axios

    AxiosMembers

    Dec 10, 2016
    10
    2
    13
    Male
    Hi,

    I have a completely bricked (no led, completely black and silent) redmi 4 pro and I think the problem might just be the same.... How did You exactly do?

    U connected the microusb to phone, shorted pin 3 and 4 from the normal usb side, then connected to the pc and everything worked??

  22. Lindert

    LindertMembers

    Dec 15, 2016
    1
    0
    13
    Male
    #47Lindert,Dec 16, 2016
    Last edited: Dec 16, 2016
    I just wanted to say: a big thank you to the people in this thread for sharing solutions. Thanks to you I've finally managed to unbrick my Redmi 3s (3GB).

    My situation was the same as that of Antimatter (only MI-logo or Fastboot screen). I made a primitive deep flash cable and shut down the device as explained by crawler009 . I found that I had to shortcut the green wire to the ground (i.e. the black wire) while holding the power + volume down buttons (for 10-20 seconds), then releasing the buttons and breaking the shortcut. I had to try quite a few times before it worked (possibly a bad connection in my cable). When QDLoader 9008 was recognized I flashed the newest stable official MIUI 8 rom installed (20161208) using XiaoMiFlash(Beta).

    Anyway, have a nice day, all of you and thanks again.

  23. bertarobert73

    Dec 18, 2016
    9
    0
    15
    Male
    1000% works ! yesteday i foud this way alone!Whay i not found before this post?!:)

  24. helge1234

    helge1234Members

    Jan 4, 2017
    7
    1
    11
    Hello Everyone, i'am at a loss... This thread, and you people are my last hope...
    My situation is as above. My redmi 3s is totaly dark. Completely. No Fastboot, just shere black as outer space.... I installed all the drivers and the latest MIFlash Tool on my PC and tried the 2 Pin method (opening the Back, disconnecting the Bat etc, The Bat had some 4.xx Volts, so fully charged) as described above. Nothing.
    MiFalsh Tool finds a Device at COM3, but, hits an error, "cannot receive hello packet", after that, stoping with an error!
    Since the Devicemanager from WIN10 finds the "Quallcomm HS-USB QDLoader 9008" i assume I'm in EDL Mode???
    So, the Deep Flash Cable is not needed?
    Googeling the Error Message from MiFlash-Tool only brought some thing like rebooting the PC, running MIFlashTool as Admin etc, but none of that helped...
    What am i doing wrong?
    Thanx in andvance! DeadS3.JPG
    After That: DeadS3_2.JPG

  25. bertarobert73

    Dec 18, 2016
    9
    0
    15
    Male
    Try to flash with MiFlash Beta Version ,Sometime flash is work only without battery ,use only USB connection!
